Why Optical Distribution Is a Legal Risk, Not Just a Design Choice
Direct Answer: Type III and Type V optics decide where the lumens land. Put the wrong distribution in the wrong pole location and you can pass average foot-candles while still failing property-line spill, triggering complaints, re-aim orders, and fines. Type III is typically the perimeter tool (push light inward with controlled backlight), while Type V is typically for interior poles (uniform 360° coverage).
In commercial parking lot lighting, fixture wattage and mounting height are only part of the compliance equation. Optical distribution—specifically Type III versus Type V—determines where light actually goes. Improper optic selection is a leading cause of light trespass violations, neighbor complaints, and municipal fines that can exceed $10,000 per site.
As Dark Sky ordinances and zoning enforcement expand, understanding the difference between forward-throw and circular distributions is critical for compliant site lighting design.
Buying guide reference: For the complete commercial site-lighting specification workflow—including optic selection, mounting height, spacing, property-line calculations, and compliance verification—use the Commercial Site Lighting Buying Guide.
Understanding IES Distribution Types
The Illuminating Engineering Society (IES) defines roadway and area light distributions based on how light is projected relative to the fixture location.

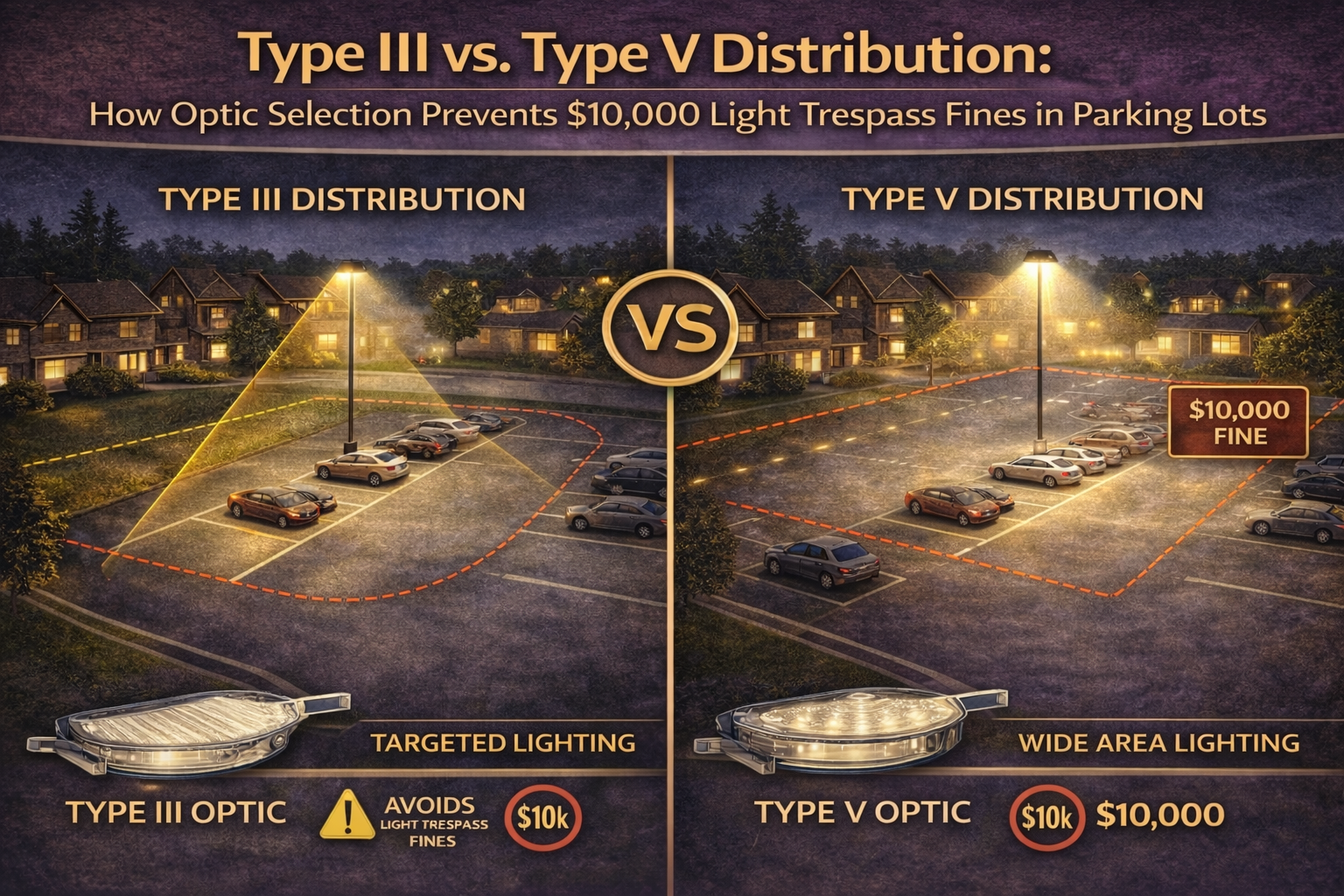

| Distribution Type | Light Pattern | Primary Use Case |
|---|---|---|
| Type III | Asymmetric forward throw | Perimeter and edge lighting |
| Type V | Symmetric circular | Central pole placement |
Fast rule: If the pole is near a boundary, choose optics that push light into the site (Type III) and control backlight. If the pole is in the middle of the lot, Type V can provide uniformity without needing aggressive forward throw.
Type III: Forward-Throw Distribution
Type III optics project light outward and away from the pole, creating an elongated distribution pattern.
| Characteristic | Type III |
|---|---|
| Light direction | Primarily forward |
| Backlight control | High when properly aimed |
| Typical mounting | Along lot perimeter |
What it solves: You can meet target foot-candles in the drive lanes and parking stalls while keeping boundary spill lower—especially when paired with shielding near residential edges.
Type V: Circular Distribution
Type V optics distribute light evenly in all directions around the pole.
| Characteristic | Type V |
|---|---|
| Light direction | 360° symmetric |
| Backlight control | Low near edges |
| Typical mounting | Interior poles |
Where it fails: Place Type V on a perimeter pole and a large portion of its output will land outside the site boundary unless you add shielding or change pole placement.
How Light Trespass Violations Occur
Light trespass violations are usually documented through horizontal and vertical illuminance measurements at the property line (and sometimes at adjacent windows).
| Violation Scenario | Root Cause |
|---|---|
| Excess light onto adjacent property | Type V used at perimeter / no shielding |
| Bright hotspots near fence lines | Wrong optic + tilt/aiming errors |
| Skyglow complaints | Poor cutoff, uplight, or unapproved tilt |
Important: A design can “look bright” and still fail if minimum values are too low (poor uniformity) or if boundary spill exceeds ordinance thresholds. Average fc is not a compliance guarantee.
Selecting the Correct Optic for Parking Lots
Optic selection must align with pole location, mounting height, spacing, and zoning boundaries.
| Pole Location | Recommended Distribution | Reason |
|---|---|---|
| Perimeter edge | Type III | Pushes light inward; controls backlight/spill |
| Interior rows | Type V | Uniform 360° coverage with better balance |
| Near residential boundary | Type III + shielding | Boundary control + complaint prevention |
Photometric requirement: Always include property-line calculations (horizontal + vertical where applicable), not just average foot-candles inside the lot.
Inspection-Proof Spec Notes That Prevent Re-Aim Orders
Use enforceable language so the installed system matches the approved photometrics.
| Spec Note | Why It Matters |
|---|---|
| Optic type shall match approved photometric plan (Type III perimeter / Type V interior) | Blocks “same fixture, different optic” substitutions that change spill |
| Tilt shall be 0° unless specifically approved in photometric submittal | Prevents post-install aiming that creates trespass and uplight |
| Provide shielding where property-line limits apply | Creates a hard control measure for boundary compliance |
| Include property-line illuminance results in submittal (horizontal and vertical if required) | Makes pass/fail measurable and reviewable by AHJ |
FAQ: Type III vs Type V
Can I use Type V everywhere for “uniformity”?
In interior rows, yes—Type V can improve balance. On perimeter poles, Type V often increases boundary spill unless shielding or pole placement changes.
Is Type III always “Dark Sky compliant”?
No. Distribution type affects where light goes, but compliance also depends on cutoff/uplight control, tilt, shielding, lumen package, and the ordinance limits at the boundary.
What’s the biggest mistake that causes fines?
Choosing optics based on “coverage” instead of pole location—then skipping property-line calculations. That’s how you pass averages and still fail boundaries.
Related Site Lighting Engineering Articles
If you’re building a compliance-ready site package, these resources expand on the design variables that most often determine pass/fail results at the property line and in municipal review.
- How to Read a Photometric Report: Decoding IES Files for Parking Lot Layout and Uniformity
- Light Pollution Compliance (BUG Ratings): Meeting Backlight, Uplight, and Glare Requirements
- The 2026 Dark Sky Curfew: Meeting 3000K CCT and Shielding Requirements
- Mechanical Integrity in Site Lighting: Engineering the Connection Between Fixture and Pole
- Understanding 10kV vs. 20kV Surge Protection for High-Wattage Area Lighting
Related Commercial Lighting Categories
Correct optic selection—Type III at the perimeter and Type V only where appropriate—prevents light trespass violations, protects property owners from fines, and keeps the site compliant as outdoor lighting ordinances tighten.
