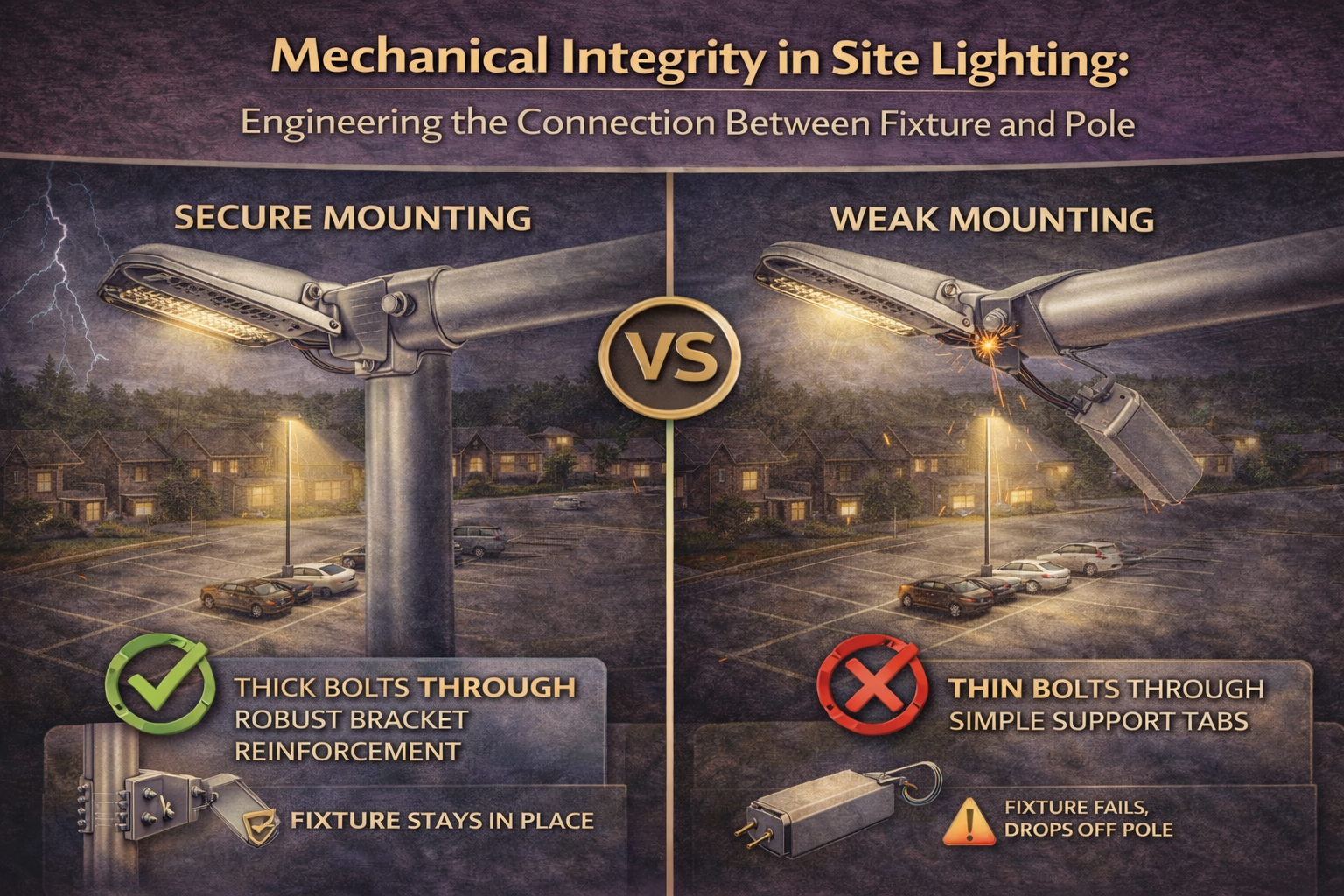

Beyond the Bolt: Why Mounting Hardware Is a Structural Failure Point
Direct Answer: In outdoor site lighting, the mount is a structural load path—not an accessory. Wind load (EPA), pole vibration, and gravitational torque concentrate stress at the mounting interface. The correct choice depends on EPA + mounting height + pole type + aiming needs: slip fitters favor fast retrofits but can rotate under vibration, trunnions handle aiming and rigid bracing but concentrate bending at the bracket, and arm mounts provide clean forward throw but impose the highest torque on the pole wall and require correct pole geometry and bolt patterns.
In 2026, the transition to high-efficacy LED area lights has introduced a new challenge: lighter fixtures with larger surface areas. The mechanical interface—the mount—is no longer just a bracket; it is a structural component that must manage wind load (EPA), vibration, and gravitational torque. Selecting the wrong mount for a specific pole type or mounting height doesn’t just ruin distribution—it can lead to mechanical fatigue and catastrophic failure.
Key definitions: EPA (Effective Projected Area) is the “sail area” a luminaire presents to wind and is used to determine wind force and structural loading. Torque is the rotational load applied to the pole/mount interface (often amplified by arm length and height). Vibration from traffic corridors, bridges, and coastal gusting accelerates loosening, rotation, and fatigue if hardware and torque specs aren’t controlled.
Understanding the engineering trade-offs between slip fitters, trunnions, and arm mounts is essential for ensuring site safety and long-term asset protection.
Related resource: For the complete commercial site-lighting specification workflow—including pole selection, mounting height, EPA calculations, optic selection, and code compliance—use the Commercial Site Lighting Buying Guide.
Structural Differences in Mounting Architectures
Every mounting style transfers weight and wind force to the pole differently. In high-wind coastal environments or high-mounting-height applications (30 ft+), these forces magnify. The correct mount is the one that keeps the load path rigid, repeatable, and within the pole and bracket’s rated limits.
| Mount Style | Primary Stress Mode | Best Use Case | Vibration Resistance |
|---|---|---|---|
| Slip Fitter | Clamp/shear at set screws + tenon interface | Retrofit on existing tenons; moderate EPA; controlled aiming | Moderate (risk of “walking”/rotation if torque slips) |
| Trunnion / Yoke | Bending moment concentrated at bracket pivots | Flood/aimed applications; rigid mounting to structure/pole with reinforcement | High (rigid connection when properly braced) |
| Arm Mount | High torque on pole wall + bolt group loading | Forward throw area lights; clean aesthetics; correct pole geometry required | Lower (lever-arm effect amplifies vibration and fatigue) |
Vibration and Wind Load (EPA) Considerations
A fixture’s Effective Projected Area (EPA) is the “sail area” it presents to wind. The mount and pole must be rated to handle the resultant force at the installed height and wind speed design basis. Higher mounting heights increase pole deflection and oscillation, which amplifies fatigue—especially with arm mounts that create leverage.
- Higher EPA = higher wind force at the luminaire and at the pole base.
- Higher mounting height = larger bending moment due to leverage and pole deflection.
- High-vibration sites (highways, bridges, rail corridors) accelerate loosening if torque and locking aren’t controlled.
Mechanical Limitations of Slip Fitter Tenons
Slip fitters rely on a 2⅜-inch tenon interface. While convenient for retrofits, they have specific mechanical risks that must be managed with correct hardware, torque, and anti-rotation practices:
- Set Screw Fatigue / Slip: Over-tightening can damage thin-walled components; under-tightening can allow rotation under gusting and vibration.
- Rotation (“Walking”): Repeated micro-movement can slowly shift aiming, creating photometric drift and increased glare over time.
- Hidden Corrosion Path: Poor sealing at the tenon or entry point can trap moisture, leading to internal corrosion that is not visible from grade.
Spec reality: Slip fitters perform best when EPA is moderate, the pole is stable, and the install uses torque verification plus anti-rotation provisions (not just “tighten until it feels right”).
Trunnion and Yoke Stress Points
Trunnions offer high aiming flexibility but concentrate stress at the pivot and bracket interface. They are common in floodlighting, and when used on poles, they often require reinforcement to prevent deformation at the attachment surface.
- Bending at the bracket: Wind load creates a lever effect through the trunnion pivot.
- Pole surface deformation (“oil-canning”): Thin pole walls can deform without a backing plate or proper load-spreading hardware.
- Fastener fatigue: Repeated oscillation can loosen bolts if locking and torque practices are not enforced.
Arm Mount Torque and Pole Shape
Arm mounts provide clean aesthetics and excellent forward throw, but they impose the highest torque on the pole wall and bolt group. They are unforgiving when pole geometry, drill patterns, or adapters are wrong.
- Square poles: Flat mating surface improves stability and reduces lateral wobble.
- Round poles: Require a contoured adapter to prevent shifting and bolt-group loosening under vibration.
- Existing drill patterns: Reusing holes without verifying exact bolt spacing can introduce slop, eccentric loading, and reduced structural rating.
Field rule: If an arm mount “almost fits,” it doesn’t fit. Forcing alignment compromises load transfer and long-term fatigue performance.
Installation Best Practices for Structural Integrity
Most mounting failures are installation-driven: wrong torque, missing locking, poor sealing, or misalignment. These practices reduce mechanical risk and photometric drift.
- Torque Verification: Use a torque wrench on all mounting bolts to manufacturer specifications—then re-check after initial settling where required.
- Locking Strategy: Use appropriate locking hardware (locking nuts/washers) and, where permitted, a medium-strength thread-locking compound for high-vibration sites.
- Sealing Discipline: Seal entries and interfaces to prevent moisture paths into arms/tenons and to avoid hidden corrosion.
- Plumb + Aim: Ensure the pole is plumb before final aiming. An un-plumb pole adds unintended eccentric loading and can skew distribution.
Inspection-Proof Spec Notes That Prevent Substitutions
To prevent “value engineering” substitutions that fail early, include enforceable specification language that ties the mount to EPA, height, pole type, and installation controls.
| Spec Note | Why It Matters |
|---|---|
| Mounting shall be rated for luminaire EPA at installed height and design wind speed | Prevents underspecified mounts that pass “fitment” but fail structural loading |
| Slip fitter installations shall include anti-rotation provisions and verified set-screw torque | Stops aiming drift and rotation under vibration and gusting |
| Arm mounts shall match pole geometry and exact drill pattern; adapters required for round poles | Prevents eccentric loading, bolt slop, and pole-wall fatigue |
| Trunnion mounts on poles shall use load-spreading reinforcement (backing plate) where required | Reduces pole deformation and bracket-induced fatigue cracking |
| All fasteners shall be installed with torque control and vibration-resistant locking method | Reduces loosening, movement, and premature seal failure |
Related Site Lighting Engineering Articles
Mounting performance is closely tied to optic selection, pole placement, and photometric layout. These supporting resources expand on the site-lighting variables that determine long-term structural and compliance outcomes.
- Type III vs. Type V Distribution: Preventing Light Trespass Violations in Parking Lots
- How to Read a Photometric Report: Decoding IES Files for Site Lighting Layouts
- The 2026 Dark Sky Curfew: Meeting 3000K CCT and Shielding Requirements
Related Outdoor Lighting Categories
Summary: Treat the mount as a structural bridge—not a simple accessory. Matching mounting style to EPA, height, pole geometry, and vibration conditions prevents rotation, fatigue, and pole-wall damage while keeping photometrics stable over the fixture’s service life.
Frequently Asked Questions
What is the fundamental difference between Class I Div 2 and Class II Div 2 lighting?
The difference lies in the physical state of the hazard. Class I Division 2 addresses flammable gases or vapors (like gasoline or solvent fumes) that are not normally present but may escape during a leak. Class II Division 2 addresses combustible dusts (like grain, flour, or pulverized wood). While both are Division 2 (abnormal conditions), gas-rated fixtures focus on isolating internal arcs from vapors, while dust-rated fixtures focus on being dust-tight to prevent internal buildup and managing surface heat so settled dust layers don't ignite.
Can a Class I Div 2 fixture be used in a Class II Div 2 environment?
Not necessarily. A fixture must be explicitly listed and labeled for the specific Class and Group it is installed in. While some high-end industrial LEDs are dual-rated, many Class I fixtures are not dust-tight. In a Class II environment, fine dust can penetrate a non-dust-tight Class I fixture, coat the internal electronics, and act as an insulator. This causes the internal temperature to rise beyond safe limits, potentially leading to an internal fire or premature driver failure.
Why is the T-Rating more critical in Class II (Dust) environments?
In Class II environments, dust settles on the fixture's exterior. This layer of dust acts as thermal insulation, trapping heat inside the luminaire. The Temperature Code (T-Rating) indicates the maximum surface temperature the fixture will reach. If the T-Rating exceeds the charring or ignition temperature of the specific dust present (e.g., grain dust vs. magnesium dust), the settled layer can smolder and ignite a fire. Class I ratings also use T-Ratings, but they don't account for the insulating effect of a dust blanket.
What are the common Group classifications for Class I and Class II?
Gases (Class I) are categorized into Groups A, B, C, and D, with Group A (Acetylene) being the most volatile. Dusts (Class II) are categorized into Groups E, F, and G. Group E includes metal dusts (highly conductive and dangerous), Group F includes carbonaceous dusts like coal, and Group G includes agricultural dusts like flour and starch. You must match your fixture’s listing not just to the Class and Division, but to the specific Group of the material present at your site.
Does a Division 2 rating mean the area is low risk for explosion?
No. Division 2 means the hazardous material is not normally present under standard operating conditions. However, the risk remains high because an abnormal event—such as a pipe rupture, a ventilation failure, or a spilled container—can instantly turn a Division 2 area into an explosive atmosphere. Hazardous location lighting is specified precisely to ensure that if such an accident occurs, the light fixture does not become the ignition source that triggers a catastrophe.
