Reliable Illumination for Warehouses, Factories, and Production Floors
Industrial environments demand lighting systems that deliver consistent illumination, support safe operations, and perform reliably under demanding conditions. Facilities with high ceilings—such as warehouses, manufacturing plants, and gymnasiums—require fixtures engineered to distribute light effectively over large areas without excessive energy consumption.
Modern LED high bay lighting systems are purpose-built to meet these requirements, combining high lumen output, durability, and long-term operating efficiency.
Buying guide reference: High bay fixture selection for large industrial spaces should be evaluated as a system decision—mounting height, target light levels, beam distribution, and fixture spacing all determine whether coverage, efficiency, and visual comfort are achieved at scale. For a detailed framework that connects ceiling height to lumen packages, beam angles, and layout planning, reference the High Bay Lighting Buying Guide.
Operational Advantages of High Bay Lighting in Industrial Spaces
Energy Efficiency and Power Reduction
- Advanced LED technology delivers high lumen output with significantly lower wattage
- Reduced electrical demand lowers operating costs across large facilities
- High efficacy supports compliance with energy codes and rebate programs
Improved Visibility and Workplace Safety
- Uniform illumination minimizes shadows and dark zones
- Enhanced visibility improves accuracy for assembly, inspection, and material handling
- Reduced eye strain supports worker comfort and productivity
Extended Service Life
- LED high bay fixtures typically operate for 50,000 hours or more
- Long service life reduces maintenance disruptions and relamping costs
- Ideal for high-mounted applications where access is limited
Durability in Demanding Environments
- Rugged housings withstand vibration, dust, and temperature fluctuations
- Designed for continuous operation in industrial settings
- Reliable performance supports mission-critical operations
Common High Bay Fixture Types and Applications
| Fixture Type | Typical Applications | Key Benefits |
|---|---|---|

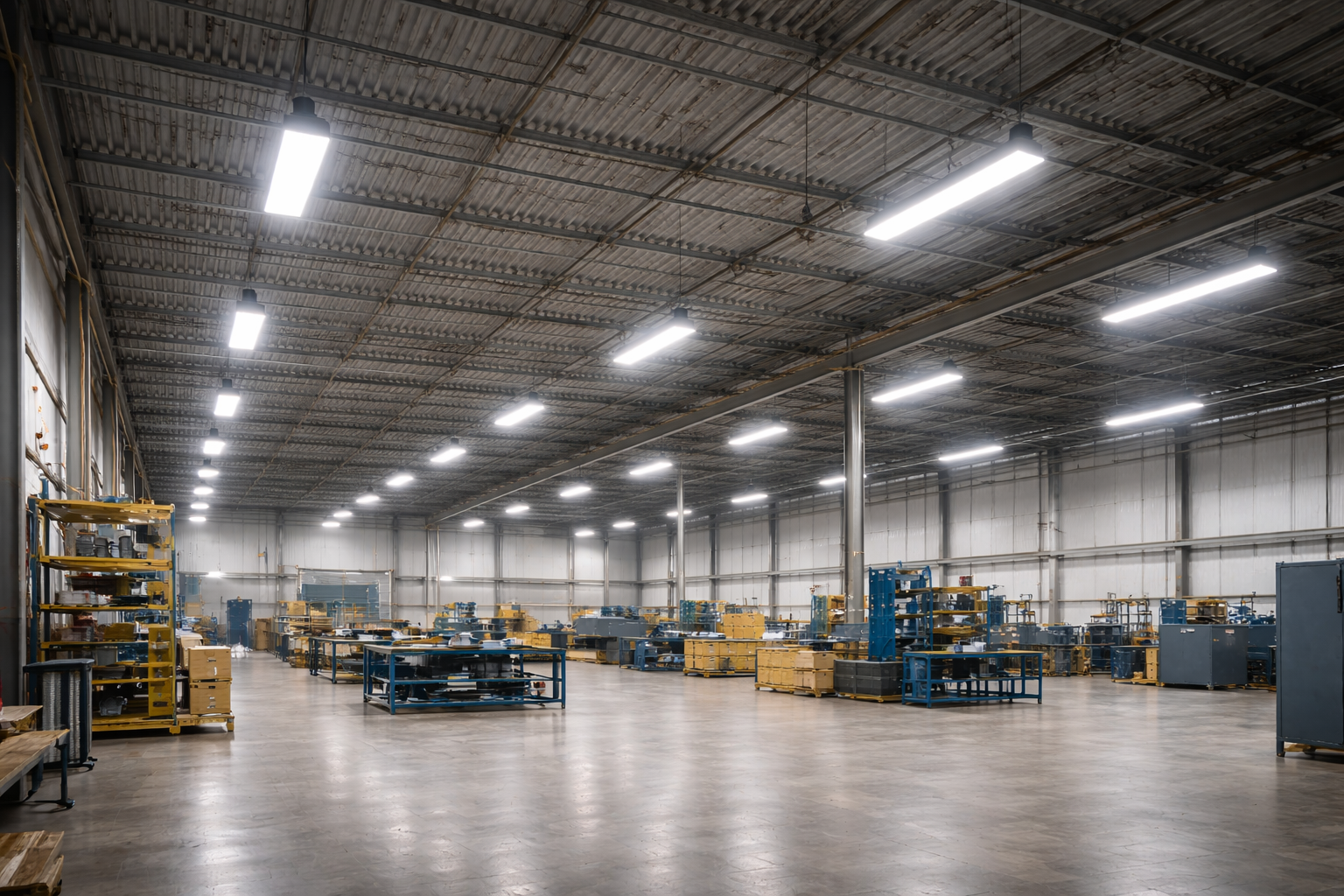

| LED Linear High Bays | Warehouses, distribution centers | Wide light distribution, uniform coverage |
| LED UFO High Bays | Manufacturing floors, gymnasiums | Compact design, high lumen density |
| Vapor-Tight High Bays | Wash-down areas, dusty facilities | Sealed construction, environmental protection |
Performance Characteristics for Industrial High Bay Lighting
| Performance Metric | Recommended Range | Operational Impact |
|---|---|---|
| Mounting Height | 15–40+ feet | Optimized coverage for large spaces |
| Lumen Output | 15,000–40,000+ lumens | Supports high-ceiling illumination |
| Color Temperature | 4000K–5000K | Improves visual clarity and alertness |
| CRI | 80+ recommended | Accurate color recognition |
Installation Flexibility and Layout Options
- Pendant, surface, hook, and chain mounting configurations
- Adjustable optics for aisle, wide, or focused distributions
- Compatible with retrofits and new construction projects
Environmental and Sustainability Considerations
- Lower energy consumption reduces greenhouse gas emissions
- Mercury-free construction simplifies disposal and recycling
- Supports corporate sustainability and ESG initiatives
Related High Bay Lighting Articles
The articles below expand on high bay system selection, installation methods, maintenance planning, and performance optimization for industrial and high-ceiling environments.
- The Polycarbonate vs. Glass Debate: Selecting High Bay Lenses for Food Processing Plants vs. Heavy Manufacturing
- Linear High Bay Lighting Maintenance for Warehouses and Industrial Facilities
- High Bay LED Lighting Installation Best Practices for Commercial Facilities
- UFO High Bay Lighting for Industrial Facilities and High-Ceiling Operations
- How to Select High Bay Shop Lights for Commercial and Industrial Facilities
- High Bay LED Lighting for Warehouses, Factories and Large Facilities
- Selecting High Bay LED Lighting for Commercial and Industrial Facilities
- High Bay LED Lighting for Large Commercial and Industrial Spaces
- Energy-Efficient High Bay Lighting for Large Commercial Facilities
Related Industrial and Commercial Lighting Categories
- Industrial lighting systems
- Warehouse lighting
- Gymnasium lighting
- Commercial LED lighting
- Vapor tight fixtures
When properly specified and installed, LED high bay lighting systems deliver long-term efficiency, reliable performance, and safer working environments for industrial facilities operating at scale.
Frequently Asked Questions
How does mounting height influence the required lumen output in industrial facilities?
Mounting height changes the delivered illuminance at the work plane because the beam spreads over a larger area as distance increases. For many warehouse and light-manufacturing layouts in the 15–20 ft range, mid-lumen high bays can meet common target levels when spacing and optics are matched to the aisle or open-floor geometry. At 30–40 ft, the design typically shifts toward higher-lumen packages and tighter control of distribution to maintain minimum foot-candles between fixtures. The reliable way to size output is a point-by-point layout that accounts for spacing, optic type, reflectances, and any obstructions (racking, cranes, mezzanines).
What is the advantage of LED linear high bays in warehouse racking aisles?
Linear high bays can align better with aisle geometry because the distribution is shaped to favor long, rectangular coverage. In racked aisles, that can improve vertical illuminance on rack faces and reduce wasted light on top of the racks compared with a wide circular pattern. The practical benefit is more consistent visibility for labels and scanning in the locations where work actually happens.
Why is 5000K often specified in high-ceiling manufacturing environments?
5000K is commonly used where visual clarity and contrast are priorities, especially in spaces with limited daylight. The cooler appearance can make small features and surface differences easier to see, which is useful for assembly, inspection, and safety checks. That said, some facilities standardize on 4000K to reduce perceived glare and maintain comfort during long shifts, so the best choice depends on the task mix and the people working the space.
How do integrated occupancy sensors and daylight harvesting controls affect industrial ROI?
Controls improve ROI when the space has predictable vacancy patterns (aisles that are intermittently occupied) or meaningful daylight contribution (skylights, clerestories). Occupancy sensors can step fixtures down to a reduced level during inactivity, and daylight harvesting can trim output when ambient light is available. Savings vary widely by schedule and control zoning, but well-zoned controls can materially reduce runtime at full power and extend service intervals by reducing thermal and electrical stress on drivers.
How should surge protection be specified for high bay systems in industrial environments?
Surge protection is typically selected based on exposure risk (long conductor runs, nearby switching loads, outdoor-fed circuits, lightning activity) and the facility’s reliability expectations. Many industrial specifications treat 6kV–10kV fixture-level protection as a baseline, with higher ratings used in higher-exposure sites. Because high bays are costly to service at height, fixture-level protection is often justified as a maintenance and downtime control measure rather than a “nice-to-have” feature.
