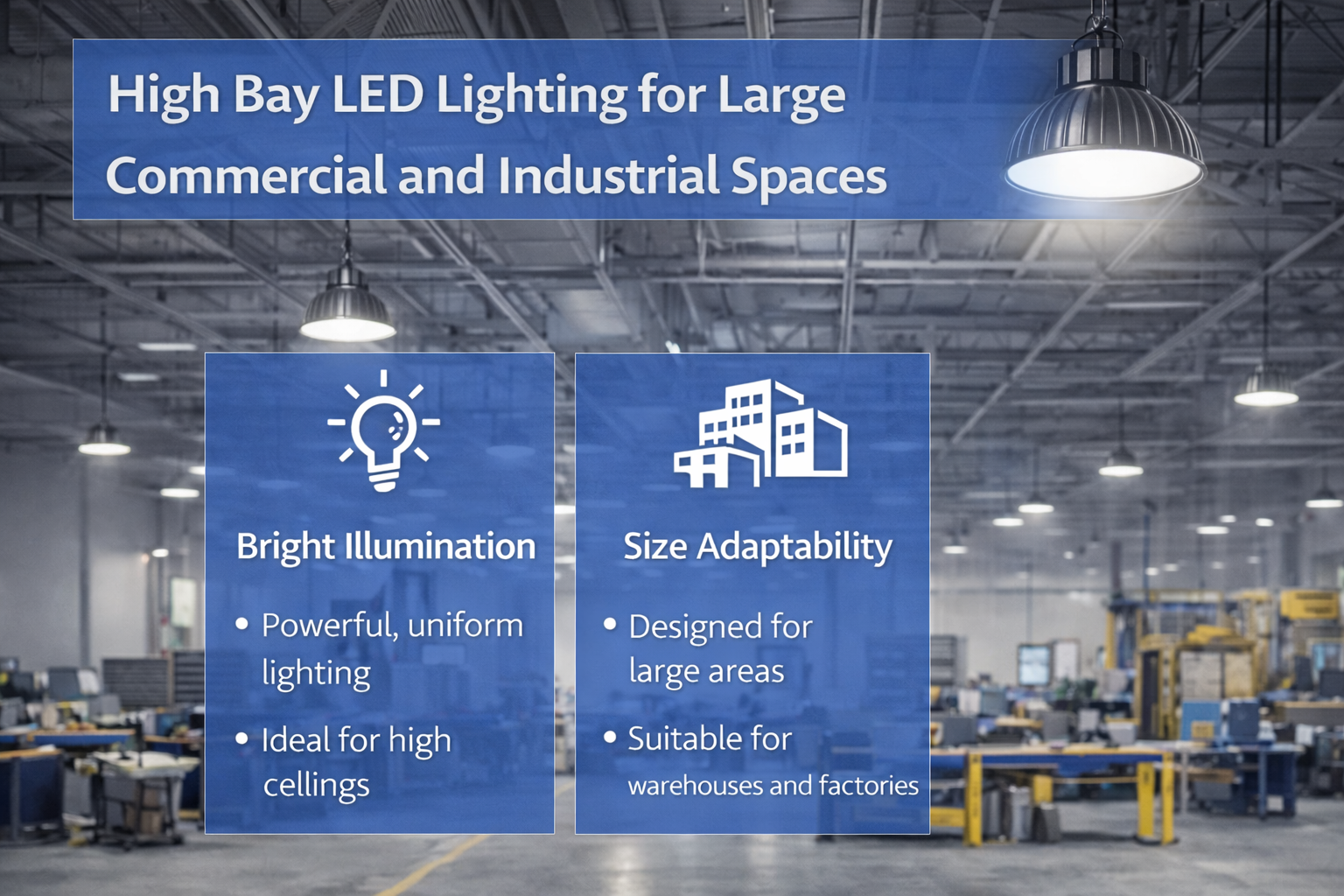

High Bay LED Lighting for Large Commercial and Industrial Spaces

What mounting height qualifies as “high bay” in commercial and industrial facilities?

High bay generally applies to mounting heights above 15 feet. Selection should be based on the maintained light level required at the work plane and any vertical illuminance needs for racking, signage, or equipment, not only ceiling height.

How do you determine the correct lumen package for a high bay layout?

Start with the target maintained foot-candles for the task, then evaluate mounting height, spacing, reflectance, and beam distribution to achieve uniformity. Use photometric layouts (IES files) to confirm average and minimum values, spacing-to-mounting-height relationships, and whether the design provides adequate vertical illumination where needed.

When should a narrow beam versus a wide beam high bay be specified?

Narrower distributions are typically used at higher mounting heights or where spacing is wider and light needs to be pushed to the floor. Wider distributions are commonly used at lower high-bay heights or where closer spacing is required for uniformity. The correct choice is confirmed by layout results, glare control, and the uniformity ratio in the occupied zone.

What efficiency metrics should be checked beyond lumens per watt?

Confirm delivered lumens at the fixture level, driver power factor, total harmonic distortion, and how the system performs at operating temperature. Where facilities have large connected loads, verifying power quality metrics can help avoid nuisance issues and maintain predictable performance under controls.

How does glare control affect high bay selection in large-volume spaces?

Glare is driven by source brightness, optic type, lens configuration, and mounting position within the field of view. In aisles and areas with frequent upward viewing angles, optics and shielding matter as much as lumen output. Validate with a layout that considers uniformity and brightness control rather than increasing wattage.

What lifetime and lumen maintenance criteria are most relevant for high bays?

Review L70 lifetime for the LED system and confirm driver reliability expectations for continuous-duty operation. High bays installed at height should be specified to reduce service interventions, including stable lumen maintenance and thermal performance that supports long-term output consistency.

Which environmental ratings are commonly required for warehouse and industrial high bays?

Match the fixture to site conditions: dust, humidity, washdown, vibration, and ambient temperature. In dusty or damp environments, an appropriate ingress rating and gasketed construction may be required. Confirm the luminaire location rating (dry/damp/wet) and any impact or corrosion needs for the installation area.

What control strategies are typically used with high bay lighting in commercial facilities?

Occupancy sensing and scheduling are common for reducing runtime in intermittent-use zones, and daylight-responsive dimming is used near skylights or perimeter daylight. Confirm dimming protocol compatibility, minimum dim levels, and how the controls will be zoned to match actual operational patterns.

How should high bays be planned around racking and aisle configurations?

Racking height, aisle width, and pick-face visibility often require attention to vertical illuminance, not only floor averages. Layouts should consider aisle orientation, cross-aisle transitions, and any obstructions that create shadowing. In many facilities, optics and placement are adjusted by zone rather than using a single pattern everywhere.

What electrical compatibility items should be verified before procurement?

Confirm input voltage range, wiring method, mounting hardware requirements, and any inrush or circuit-loading limits. For controlled systems, verify dimming protocol and control wiring needs. If emergency operation is required, confirm the facility’s emergency strategy and fixture or driver compatibility with that approach.

What are common retrofit pitfalls when replacing HID or fluorescent high bays with LED?

Common issues include selecting a lumen package that does not account for improved optical control, ignoring distribution differences that change spacing requirements, and overlooking control integration or circuit constraints. A retrofit should validate maintained levels and uniformity with a layout rather than using one-for-one wattage comparisons.

What documentation is most useful for installation, inspection, and ongoing maintenance?

Keep fixture schedules by zone, cut sheets, IES files, photometric layouts, and a controls narrative with commissioning settings. Document mounting heights, spacing, and any optic or wattage settings used in each area to support consistent replacements and future modifications.
