Architectural Linear Lighting for Offices, Retail, and Institutional Spaces
Architectural linear LED fixtures are widely used in commercial and institutional environments due to their ability to deliver uniform illumination, clean visual lines, and scalable system layouts. These fixtures are commonly specified in offices, retail environments, education facilities, healthcare buildings, and public spaces where visual comfort, efficiency, and design consistency are critical.
Selecting the correct linear fixture requires evaluating photometric performance, mounting method, control compatibility, and how the system integrates with the building architecture.
Related resource: If linear fixtures are being specified alongside panels, troffers, recessed downlights, or surface systems, reference the Commercial Ceiling Lighting Buying Guide to keep lumen targets, spacing, glare control, and controls strategy consistent across the entire ceiling plan.
Specification note: For architectural linear systems, confirm how the fixture series handles continuous runs (power feeds, joiners, and driver placement) so the installed system performs uniformly end-to-end and remains serviceable over time.
Key Factors When Selecting Linear LED Fixtures
Fixture Size, Length, and Form Factor
- Match fixture length to ceiling grid modules or architectural dimensions
- Use continuous-run configurations for corridors and open offices
- Select straight or segmented layouts based on ceiling geometry
Light Output and Color Characteristics
- Specify delivered lumens based on target foot-candle requirements
- Select appropriate CCT (3500K–5000K typical for commercial use)
- Confirm CRI ≥80 for offices and ≥90 for retail or design-forward spaces
Mounting and Integration Options
- Recessed mounting for clean, low-profile ceilings
- Suspended mounting for higher ceilings and visual emphasis
- Surface mounting for retrofit or concrete deck installations

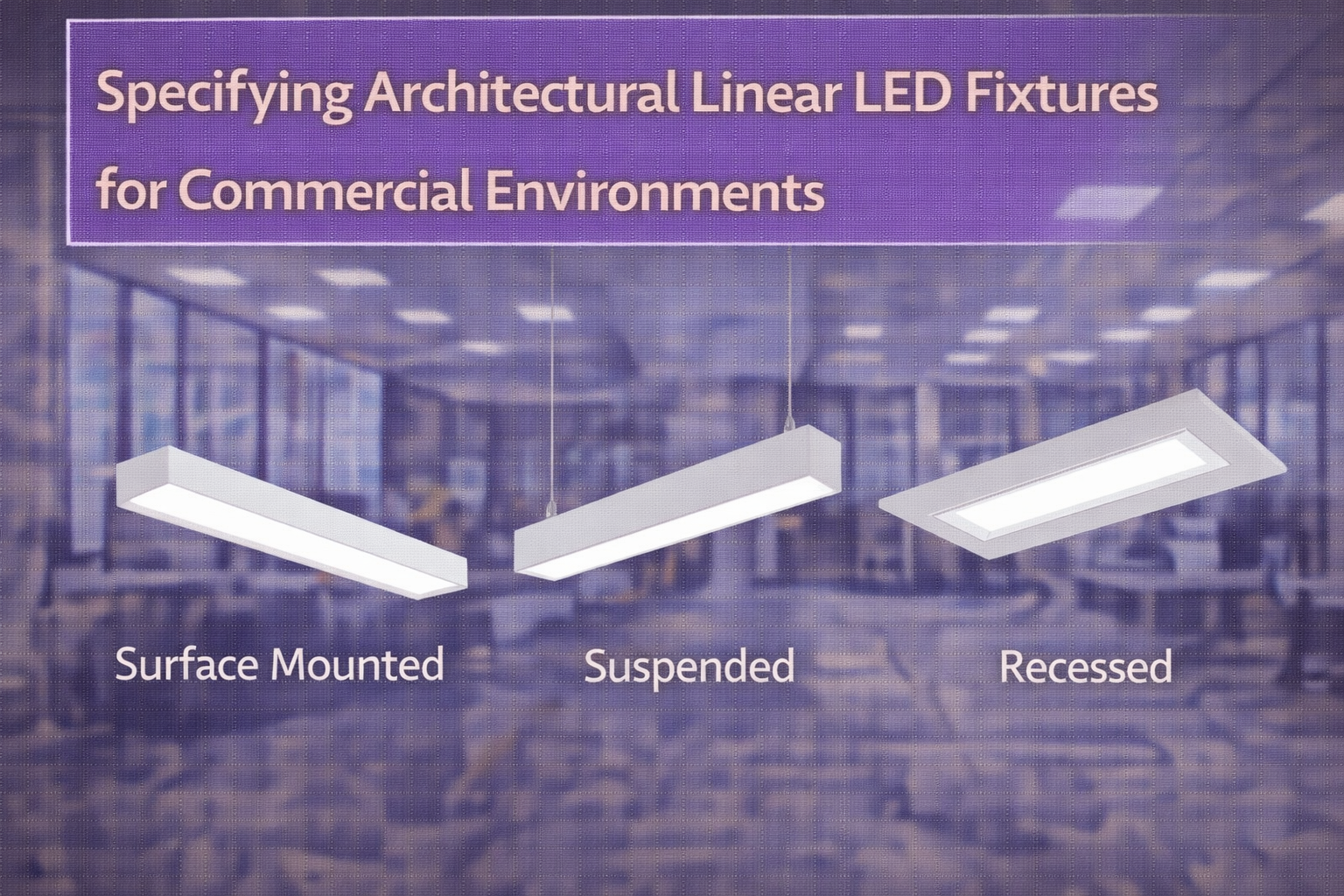

Common Types of Commercial Linear LED Fixtures
| Fixture Type | Mounting Method | Typical Applications |
|---|---|---|
| Recessed Linear | Flush ceiling integration | Offices, classrooms, healthcare corridors |
| Suspended Linear | Cable or stem mounted | Open offices, lobbies, retail floors |
| Surface-Mounted Linear | Direct ceiling attachment | Warehouses, retrofit projects, utility spaces |
| Continuous-Run Systems | Modular linking | Corridors, aisles, large open areas |
Energy Performance and Control Compatibility
LED Efficiency and Longevity
- Typical efficacy ranges from 120–160 lm/W
- Integrated LED systems reduce maintenance requirements
- DLC listing supports utility rebate qualification
Dimming and Lighting Controls
- 0–10V dimming for standard commercial systems
- Compatibility with occupancy sensors and daylight harvesting
- Integration with centralized lighting control platforms
Application-Specific Guidance
- LED office lighting for workspaces and conference rooms
- LED retail store lighting for merchandising and display areas
- LED classroom lighting for education environments
- Commercial LED lighting systems for mixed-use facilities
Related Architectural Linear and Pendant Articles
- Pendant Lighting Suspension Systems: Aircraft Cable vs. Stem Mounts Based on Seismic Code and Airflow Conditions
- Commercial Pendant Lighting for Offices, Hospitality, and Retail Spaces
- Architectural Linear LED Fixtures for Commercial and Institutional Spaces
- Architectural Linear LED Fixtures for Commercial Lighting Applications
Properly specified architectural linear LED fixtures deliver consistent illumination, reduce operating costs, and support modern commercial design standards. Evaluating performance data, mounting strategy, and control compatibility ensures long-term functionality and visual consistency across professional environments.
Frequently Asked Questions
What are architectural linear LED fixtures used for in commercial spaces?
Architectural linear LED fixtures are used where the lighting system needs controlled, uniform illumination with clean geometry. Typical uses include open offices, corridors, conference rooms, lobbies, retail floors, education spaces, and healthcare circulation areas where visual comfort, spacing consistency, and coordinated ceiling layouts matter.
What information should be confirmed before selecting a linear fixture series?
- Delivered lumen output per length at the intended CCT and driver option
- Optic type and distribution (direct, direct/indirect, batwing, corridor) based on the space
- Mounting method (recessed, suspended, surface) and ceiling integration details
- Continuous-run mechanics (joiners, end caps, power feeds, driver placement, field cut capability if offered)
- Serviceability approach (access to driver, sensor, or battery components without removing long runs)
How do you decide between recessed, suspended, and surface-mounted linear fixtures?
- Recessed linear is used when you need a flush ceiling line, controlled glare, and a quieter visual profile in offices, classrooms, and corridors.
- Suspended linear is used when the ceiling is higher, when indirect or direct/indirect distribution improves comfort, or when the fixture line is part of the architectural layout.
- Surface-mounted linear is used when ceiling construction limits recessing, when retrofit speed is a priority, or when the space is more utilitarian.
What are the key photometric and visual comfort factors for linear systems?
- Lumen package and spacing to meet target light levels without hotspots
- Shielding and lens design to control glare at typical viewing angles
- Uniformity across continuous runs, corners, and junctions
- Color consistency (binning/SDCM guidance) across fixtures on the same project
- CRI selection aligned to the space (80+ for general commercial, 90+ where color discrimination is critical)
What electrical and controls items should be specified?
- Voltage (match the branch circuit and confirm driver availability for the range)
- Dimming method (0–10V is common for commercial; confirm low-end trim and flicker performance if available)
- Sensor strategy (integrated vs remote; aisle/corridor behavior; zoning)
- Daylight response where perimeter glazing is present
- Emergency options if required (integral emergency pack, remote backup driver coordination, test access)
What does “continuous-run” mean in practice for architectural linear fixtures?
Continuous-run refers to linking multiple fixture sections into one visual line with consistent light output and alignment. The specification should document how sections are joined, where power enters, how drivers are distributed, and how the run is serviced. For long runs, confirm feed limits, wiring method, and whether intermediate power injection is required.
How do you keep linear fixtures consistent with the broader ceiling plan?
If linear fixtures are mixed with panels, troffers, or recessed downlights, align lumen targets, CCT, glare control approach, and control zoning so the ceiling reads as one system rather than competing fixture types. For system-level planning, use the Commercial Ceiling Lighting Buying Guide.
Where do architectural linear fixtures typically fit by application?
- Offices and conference spaces where uniformity, glare control, and control zoning are required.
- Retail floors where lineal layouts support aisles, merchandising zones, and circulation.
- Education spaces where comfort and consistent distribution support visual tasks.
- Mixed-use commercial facilities where the linear system must integrate with multiple fixture families.
What specification mistakes commonly cause problems in the field?
- Specifying “continuous run” without defining feed strategy, driver placement, and service access
- Ignoring glare risk in low ceilings or glass-walled corridors
- Mixing CCT and color consistency requirements across fixture families without a plan
- Assuming controls compatibility without confirming driver option and sensor approach
- Underestimating the impact of mounting height and spacing on uniformity and delivered light levels
