Why Remote Head Loading Is a Common Emergency Lighting Failure Point
Exit signs equipped with emergency battery backup are frequently used to power external remote lamp heads in corridors, stairwells, and egress pathways. While this approach can reduce fixture count, remote head compatibility is one of the most commonly misunderstood aspects of emergency lighting design.
Improper calculation of remote head wattage load often results in insufficient emergency illumination duration, failed inspections, or premature battery degradation. These failures are not caused by defective equipment, but by exceeding the electrical capacity of the exit sign’s emergency driver.
Related resource: For a complete overview of exit signs, emergency lighting units, battery runtime requirements, NFPA inspection rules, and system-level compliance considerations, reference the Exit & Emergency Lighting Buying Guide.
Understanding Exit Sign Emergency Power Capacity
Exit signs with battery backup contain an internal emergency driver and battery assembly designed to supply power for a minimum duration, typically 90 minutes. This system has a fixed maximum wattage output that cannot be exceeded without compromising performance.
| Component | Function | Limitation |
|---|---|---|
| Battery pack | Supplies stored energy | Finite capacity |
| Emergency driver | Regulates output to LEDs | Maximum wattage rating |
| Internal exit LEDs | Primary egress signage | Consumes part of available wattage |
Any remote heads connected to the exit sign draw from the same limited power budget.
How Remote Heads Draw Power from Exit Signs
Remote lamp heads are powered by the exit sign’s emergency circuit during an outage. These heads are typically low-voltage LED assemblies, but their wattage draw must still be included in total load calculations.
Key considerations include:
- Each remote head has a fixed wattage rating
- Multiple heads draw cumulative load
- Wire length and voltage drop may affect output
Even small individual loads can exceed system capacity when combined.

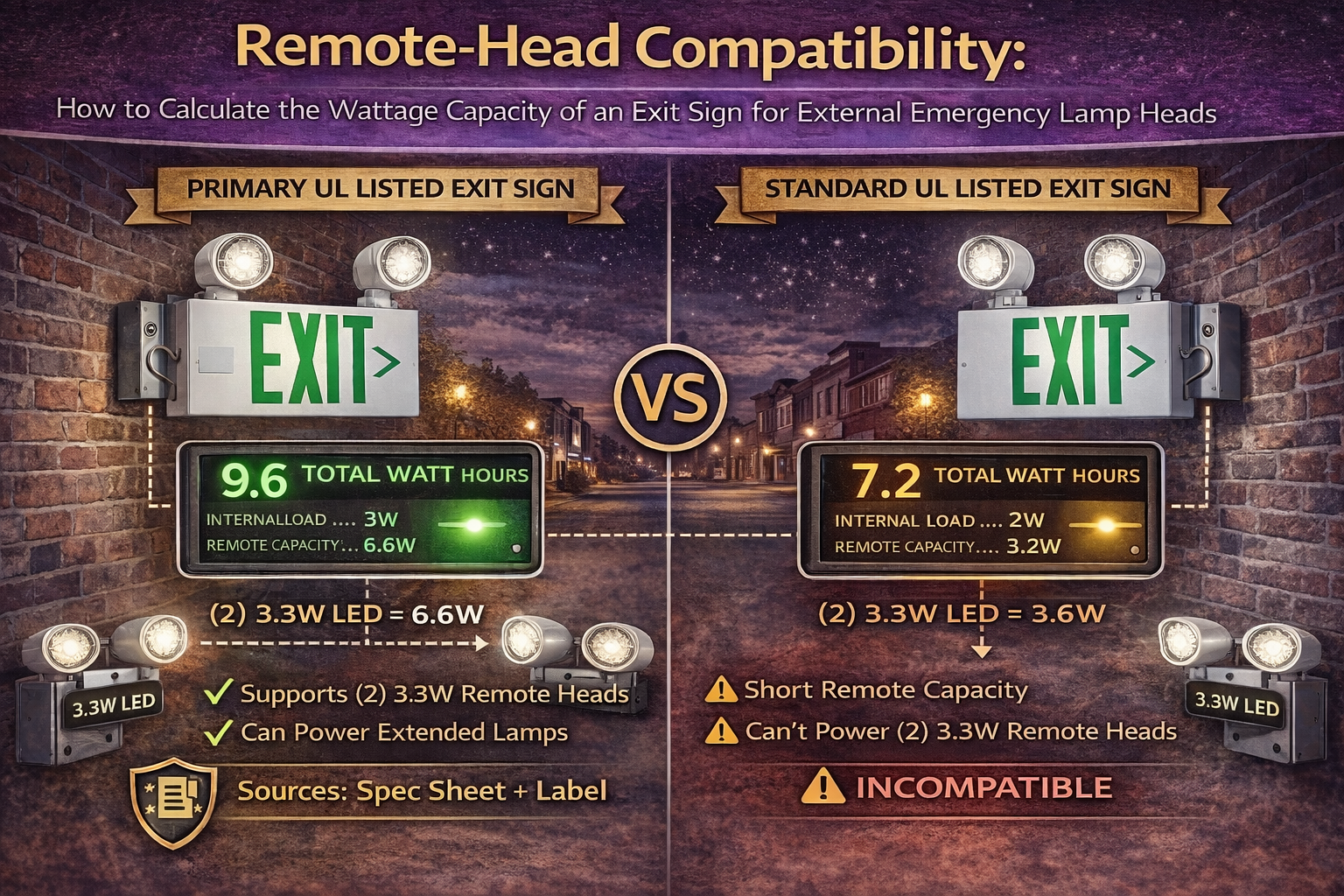

Calculating Available Wattage for Remote Heads
Proper calculation requires subtracting the internal exit sign load from the total emergency driver capacity.
| Parameter | Example Value |
|---|---|
| Emergency driver capacity | 4.5 watts |
| Internal exit LED load | 1.5 watts |
| Remaining capacity for remotes | 3.0 watts |
If each remote head draws 1 watt, the system can support no more than three heads. Exceeding this capacity reduces emergency duration below code minimums.
Common Remote Head Overload Scenarios
Remote head overload is rarely intentional. Common specification errors include:
- Assuming all exit signs support remote heads
- Ignoring internal LED load
- Adding heads in the field without recalculation
- Mixing remote head wattages
These errors frequently surface during AHJ testing.
Specifying Exit Signs for Remote Head Applications
Exit signs intended to power remote heads must be explicitly rated for that use.
| Application Requirement | Specification Guidance | Reason |
|---|---|---|
| Multiple remote heads | High-capacity emergency driver | Maintains runtime |
| Long egress coverage | Dedicated emergency fixtures | Avoids overload risk |
| Cold or harsh environments | Remote battery systems | Preserves battery performance |
