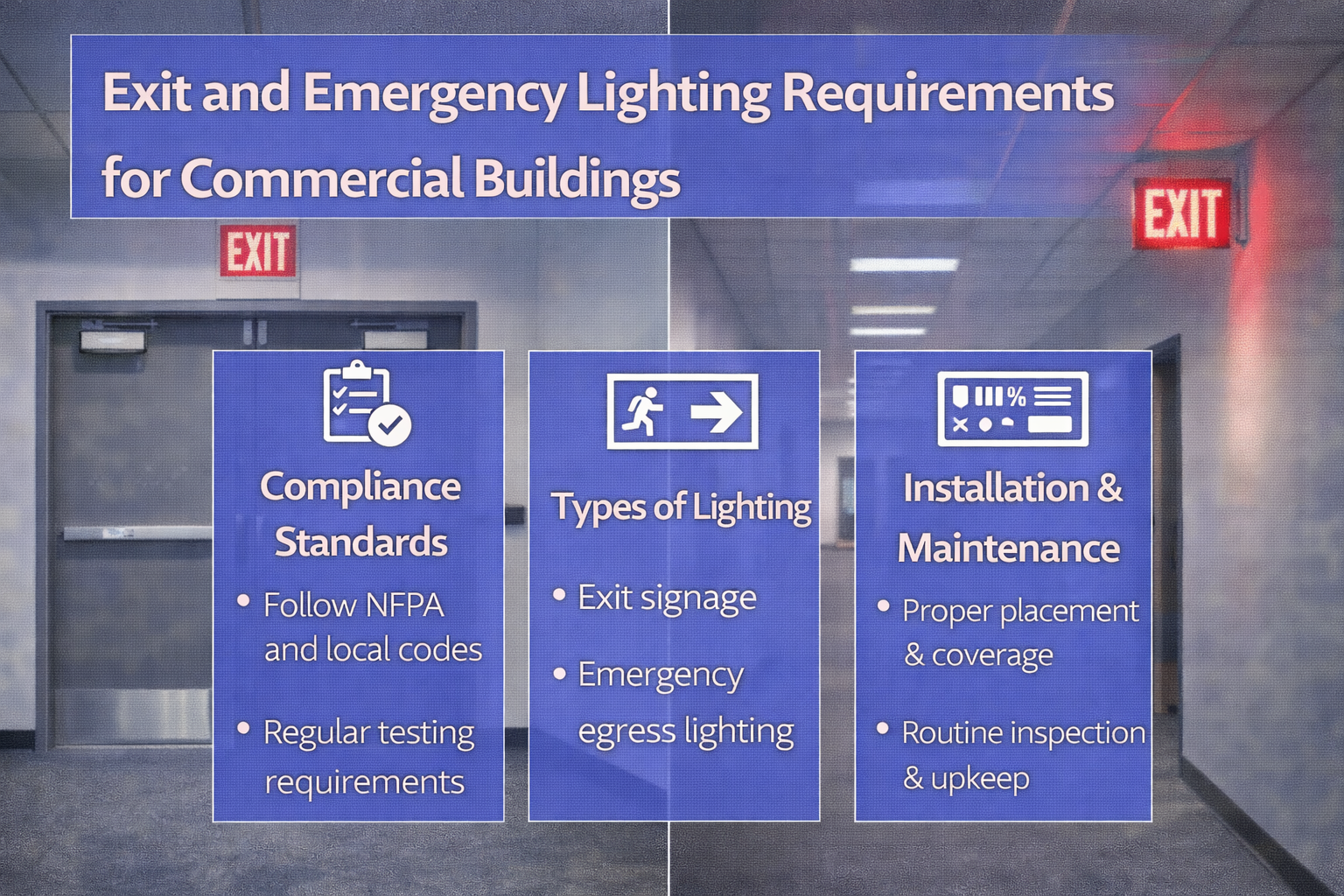

Exit and Emergency Lighting Requirements for Commercial Buildings

What codes are most commonly used to enforce exit and emergency lighting in commercial buildings?

Most projects reference a combination of NFPA 101 (Life Safety Code), the International Building Code (IBC), the International Fire Code (IFC), and OSHA egress provisions. The enforcing requirements typically come from the adopted local building and fire codes, with the Authority Having Jurisdiction (AHJ) interpreting final compliance on site.

What is the minimum emergency runtime required after loss of normal power?

A 90-minute emergency illumination duration is the common baseline used across life-safety standards. Battery units, inverters, generators, or central systems must be able to maintain the required egress illumination for the full duration under emergency mode.

Which locations typically require emergency illumination beyond just exit signs?

Emergency illumination is typically required along the egress path, including corridors, stair enclosures, exit discharge routes, and areas where occupants must travel to reach an exit. Areas with changes in elevation, direction changes, or identified hazards are commonly included because visibility is part of safe egress, not only door identification.

When should a combo exit/emergency unit be specified instead of separate fixtures?

Combo units are commonly used where a single device can satisfy both the exit identification and the immediate egress illumination requirement without creating aiming conflicts or maintenance access issues. Separate fixtures are often preferred when the exit sign location is not ideal for delivering the required light levels to the walking surface or when coverage needs extend beyond the exit location.

What should be verified for remote-capable emergency units and remote heads?

Confirm the remote head electrical loading limits (wattage or VA capacity), output compatibility (voltage/current), and the allowed number of remote heads per unit. Also verify conductor routing requirements, maximum lead distances (if specified), and that the remote heads will achieve required illumination where they are aimed.

Are self-testing/self-diagnostic exit signs required by code?

Self-testing is generally an accepted compliance method, not a universal requirement. The underlying requirement is that periodic testing and documentation occur at the required intervals. Self-testing models can reduce manual testing labor, but they do not remove documentation responsibilities unless the system provides records that meet the AHJ’s expectations.

What are the typical testing intervals for exit and emergency lighting systems?

A common enforcement pattern is monthly functional testing and an annual full-duration test that verifies the 90-minute emergency operation. Many jurisdictions expect records showing dates, pass/fail results, corrective actions, and the person or system responsible for the test.

What documentation should facilities maintain for inspections and audits?

Maintain test logs (monthly and annual), maintenance and battery replacement records, a list of device locations (by area or tag), and any commissioning notes for self-test systems. For larger sites, AHJs often prefer documentation that can be produced quickly and shows continuity over time rather than isolated test entries.

How do you choose between Ni-Cd and Li-ion batteries for emergency lighting?

Selection is typically based on temperature tolerance, expected replacement interval, and maintenance policy. Verify the manufacturer’s specified ambient temperature range, recharge time behavior, and whether replacement packs are readily obtainable for the expected service life of the fixture.

What environmental ratings are most important for exit and emergency fixtures?

Select damp-location or wet-location ratings based on exposure to moisture, washdown, or exterior conditions. For public-facing or abuse-prone areas, evaluate vandal resistance and lens/housing impact tolerance. The rating should match the installation environment rather than relying on generic “indoor use” assumptions.

What are common reasons exit signs fail inspection even when they illuminate?

Common issues include inadequate visibility due to placement or obstructions, incorrect directional indicators, insufficient emergency coverage on the egress path, degraded battery performance that fails duration testing, missing test records, and damage to housings or lenses that compromises safety or environmental protection.

How should exit sign color requirements be handled across different jurisdictions?

Where local requirements vary (for example, red versus green), treat sign color as a jurisdictional compliance item and confirm expectations early with the AHJ or local code guidance. Standardizing color across a portfolio without checking local enforcement can create avoidable retrofit work.

Do exit signs and emergency lights need to be on dedicated circuits?

Many projects use dedicated life-safety circuits or emergency power sources depending on the building’s emergency system design (battery units, inverter systems, generator-backed circuits). Verify how emergency power is provided and ensure the devices are connected in a way that guarantees automatic transfer to emergency operation upon loss of normal power.

How should spacing and placement be validated for emergency lighting coverage?

Use manufacturer photometric data (IES files where available) and layout logic to confirm that required illumination is achieved along the egress route, especially in stairwells and long corridors. Field verification during commissioning is typically required because mounting height, obstructions, and aiming can materially change delivered light on the walking surface.
