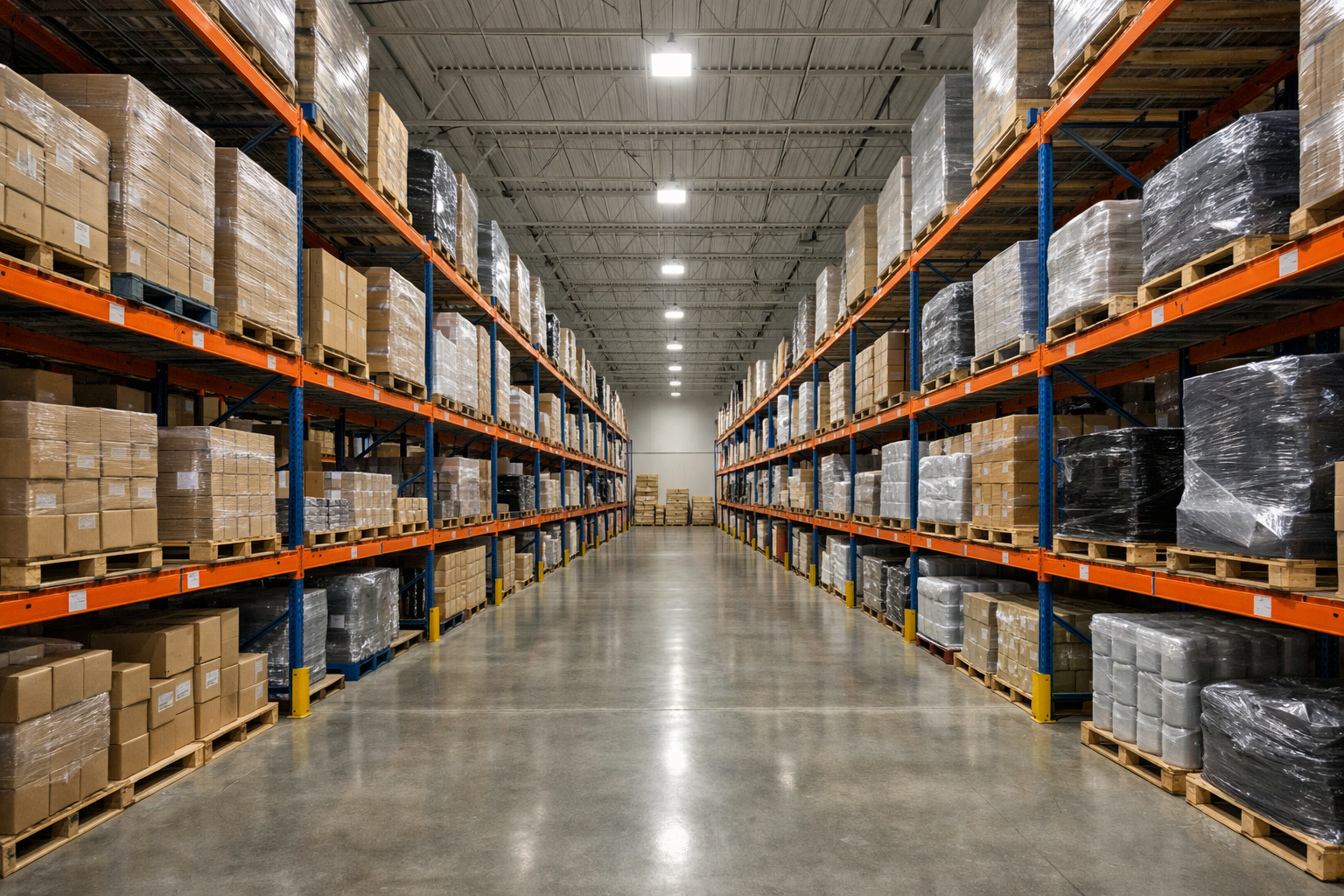

LED Lighting Systems for Commercial Warehouses and Distribution Facilities

How do I choose between 2x2 and 2x4 layouts for a ceiling grid?

The decision depends on your desired light density and grid aesthetics. 2x4 LED Troffers are the traditional standard, providing high lumen output and requiring fewer fixtures to cover large open offices. 2x2 LED Panels are increasingly popular in modern architecture because they create a more modular, symmetrical look and allow for more granular control over lighting zones. In 2026, using 2x2 fixtures with higher lumen efficacy often allows for more creative staggered layouts while still meeting mandatory foot-candle requirements.

What is the importance of Plenum-Rated cables in suspended ceilings?

In most commercial buildings, the space above the drop ceiling (the plenum) is used for air circulation. Because this air is distributed throughout the building, code requires all electrical components, including 0–10V dimming wires and junction boxes, to be Plenum-Rated (UL 2043). This rating ensures that in the event of a fire, the materials will not release toxic smoke or support flame spread, maintaining the Engineering Resilience of the facility.

How does Volumetric optical design reduce eye strain?

Standard flat panels can sometimes create cavernous lighting where the ceiling remains dark while the floor is bright. Volumetric Troffers use a curved internal reflector and a center basket diffuser to bounce light off the fixture’s interior walls. This creates a broader beam angle that illuminates the upper portion of the walls and the ceiling itself. This vertical luminance reduces the harsh contrast between the light source and the ceiling tiles, significantly lowering glare and eye fatigue in computer-heavy office environments.

What are T-Grid Linear Lights and when should I use them?

For a high-end architectural look, T-Grid Linear LEDs replace the actual cross-tees of the suspended ceiling grid. This integrates the light source directly into the structure of the ceiling. These are ideal for lobbies, high-end retail, or Class A office spaces where you want to move away from the traditional grid of squares look. They provide a continuous line of light that can be used to define pathways or accentuate architectural geometry without taking up extra ceiling real estate.

How do I handle lighting in shallow plenum spaces?

If your suspended ceiling is mounted close to the structural slab (less than 4 inches of clearance), traditional deep-body troffers will not fit. Ultra-Slim LED Panels, which are often less than 1 inch thick, are specifically designed for these low-plenum applications. These fixtures utilize edge-lit technology to provide uniform light without the need for a deep reflector housing, allowing for a clean, recessed look even in buildings with restrictive ceiling heights.

Is 480V high-voltage lighting used in drop ceilings?

While 120V and 277V are standard for office and school interiors, some 2026 Advanced Infrastructure projects use 480V distribution to feed lighting panels. In these cases, you must specify fixtures with High-Voltage LED Drivers. This eliminates the need for bulky step-down transformers in the ceiling, reducing heat generation in the plenum and simplifying the overall electrical layout for large-scale institutional facilities.
