Recessed Lighting Planning for Offices, Retail, and Institutional Facilities
Recessed lighting is widely used in commercial environments due to its clean appearance, low-profile installation, and ability to deliver consistent illumination without visual clutter. In offices, retail spaces, healthcare facilities, and educational buildings, proper recessed fixture sizing directly impacts light uniformity, visual comfort, and overall performance.
Modern LED recessed lighting systems offer multiple housing diameters and lumen packages to accommodate a wide range of ceiling heights and application requirements.
Key Factors That Determine Recessed Lighting Size
Ceiling Height
- Lower ceilings typically require smaller-diameter fixtures to control glare
- Higher ceilings benefit from larger fixtures or higher-lumen packages
- Ceiling height directly affects beam spread and spacing requirements
Room Size and Layout
- Smaller rooms require tighter spacing and controlled beam angles
- Larger open areas may require larger fixtures or increased fixture counts
- Fixture size must align with ceiling grid layouts and architectural elements
Required Illumination Levels
- Task-intensive environments require higher delivered foot-candles
- Higher output may be achieved through fixture size or quantity
- Lighting levels should comply with recommended industry standards
Architectural and Visual Considerations
- Smaller apertures provide a cleaner, more modern ceiling aesthetic
- Larger apertures deliver broader light distribution in open spaces
- Fixture trim style and lens type influence perceived brightness

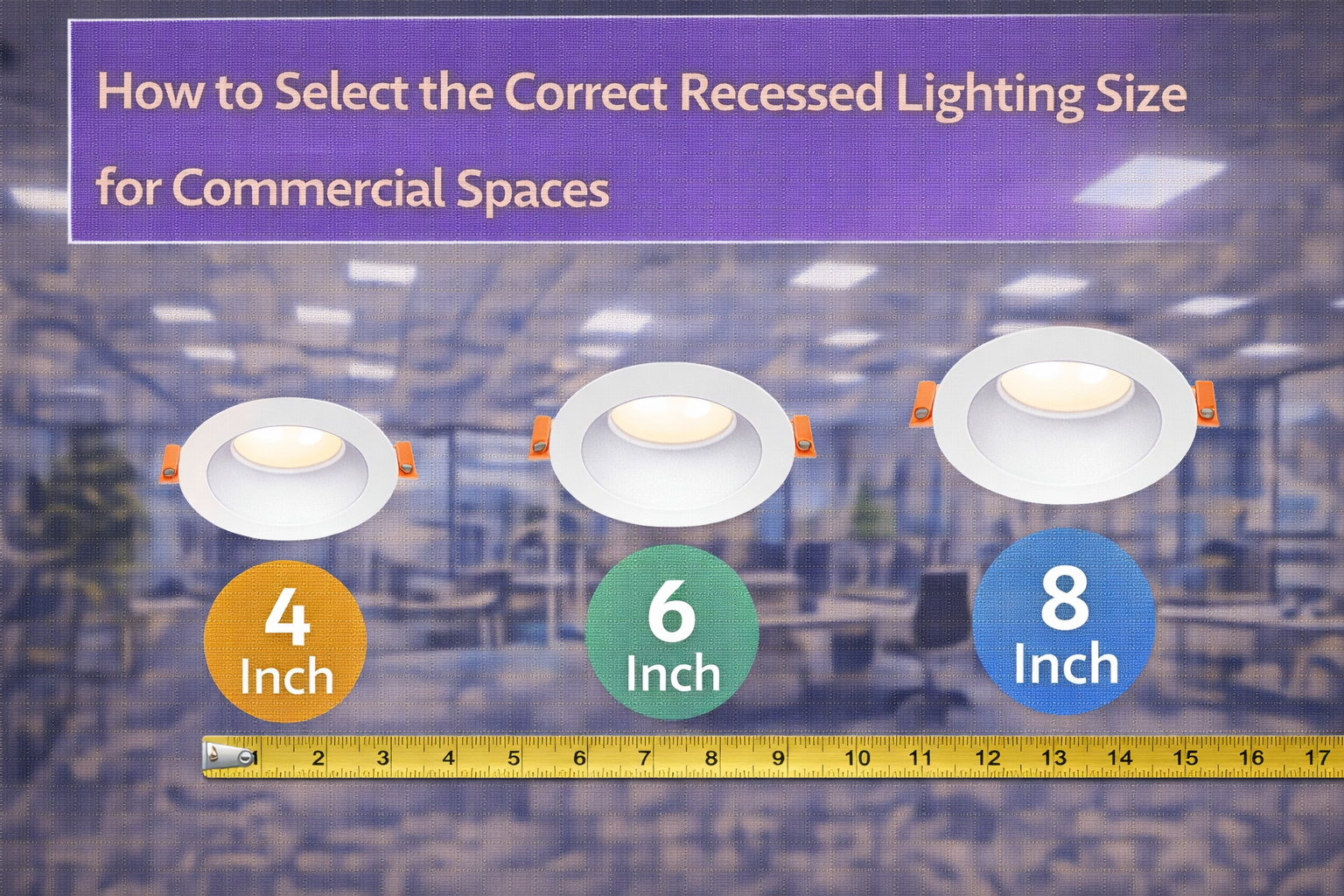

Common Recessed Lighting Sizes and Commercial Applications
| Fixture Size | Typical Applications | Lighting Characteristics |
|---|---|---|
| 4-Inch | Corridors, accent zones, display areas | Focused beam, precise control |
| 6-Inch | Offices, classrooms, retail floors | Balanced output and coverage |
| 8-Inch | Large open areas, high ceilings | Wide distribution, higher lumen capacity |
Installation and Specification Considerations
Insulation and Plenum Requirements
- IC-rated housings required for insulated ceilings
- Non-IC housings used in open plenums with proper clearance
- Air-tight housings reduce energy loss in conditioned spaces
Electrical and Controls Compatibility
- Verify voltage compatibility with existing electrical infrastructure
- Ensure fixture drivers support 0–10V dimming where required
- Confirm compatibility with occupancy sensors and daylight harvesting
Spacing and Layout Planning
- Fixture spacing should be based on mounting height and beam angle
- Even distribution reduces hot spots and shadowing
- Layout should align with ceiling grid and architectural features
Related Commercial Lighting Categories
- LED recessed lighting
- Ceiling-mounted lighting
- LED panel lights
- Office lighting systems
- Commercial LED lighting
Designing Effective Recessed Lighting Systems
Selecting the correct recessed lighting size ensures proper illumination, visual comfort, and long-term performance in commercial environments. When fixture size is aligned with ceiling height, space usage, and lighting objectives, recessed LED systems deliver efficient, professional-grade results across a wide range of applications.
