Why Long-Run Strip Installs Fail Without a Power Plan
Continuous-run strip lighting is common in industrial production lines because it creates uniform illumination along conveyors, assembly lines, and work cells. The failure point in long runs is rarely the fixture; it is the electrical plan. When installers treat a 100–300 ft run like a short branch circuit, they end up with visible brightness variation, nuisance driver behavior, and service callbacks.
This guide is written as a field-focused planning tool for contractors installing long rows of strip lighting in warehouses and production environments.
Related resource: For ceiling-system planning that ties linear strip runs to layout, control strategy, and documentation across panels, troffers, recessed, and linear fixtures, reference the Commercial Ceiling Lighting Buying Guide.
What Voltage Drop Changes in LED Strip Systems
Voltage drop increases as circuit length and current increase. In long continuous runs, the far end can see reduced voltage under load, which can reduce light output or cause driver instability depending on the driver design.
| What You Observe | Common Electrical Cause | Typical Fix |
|---|---|---|
| Far end looks dimmer | Voltage drop on long branch | Add feeds / shorten circuit length |
| Random flicker or dropout | Driver undervoltage behavior | Improve feed strategy; verify connections |
| Uneven output between rows | Different circuit loading/length | Standardize feed points and loading |
Long-run planning is about keeping voltage at the driver within its acceptable operating window across the entire row.
Deciding Where to Feed a Long Run

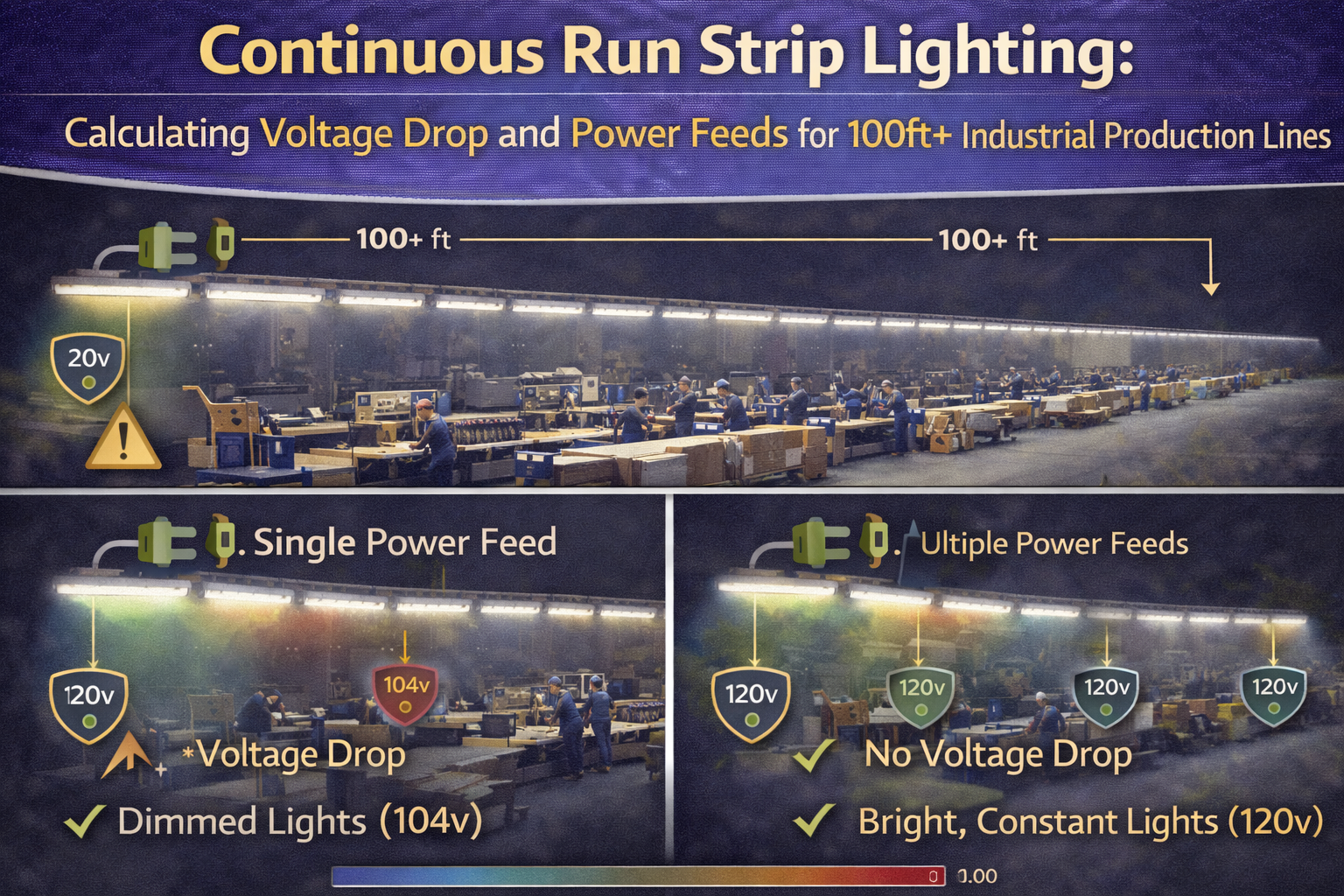

For 100 ft+ continuous runs, “one feed at one end” is often the wrong default. Multiple feeds reduce the effective distance current must travel, lowering voltage drop.
| Feed Strategy | Best Use Case | Why It Works |
|---|---|---|
| Single-end feed | Short runs / low load | Simplest wiring |
| Center feed | Long straight runs | Cuts effective length in half |
| Both-end feed | Very long runs / higher load | Balances drop across row |
| Multiple segment feeds | 300 ft+ production lines | Keeps each segment within acceptable drop |
Feeding from the center or multiple points often prevents the “bright-to-dim gradient” seen in long rows.
A Simple Voltage Drop Workflow for Contractors
Use a repeatable workflow instead of guessing. This keeps field changes from turning into performance issues.
| Step | What to Collect | Why It Matters |
|---|---|---|
| 1 | Total run length (ft) and fixture count | Defines conductor distance and load |
| 2 | Fixture watts per unit and total watts | Determines current draw |
| 3 | Voltage (120/277V) and circuit type | Changes current and drop sensitivity |
| 4 | Conductor size and material | Directly impacts drop |
| 5 | Choose feed points and segment lengths | Controls maximum drop per segment |
After you segment the run, compute drop per segment and adjust feeds until the design stays within the project’s voltage drop target.
Common Feed Configurations for 100ft+ Runs
These feed patterns are commonly used because they reduce effective length without adding complex wiring.
| Run Length | Recommended Feed Pattern | Notes |
|---|---|---|
| 100–150 ft | Center feed | Reduces drop vs. end feed |
| 150–250 ft | Both-end feed or two feeds | Balance brightness across row |
| 250–400 ft | Multiple segment feeds | Treat as multiple shorter runs |
For very long lines, the cleanest approach is to design multiple shorter electrical segments that appear continuous mechanically.
Field Pro-Tips to Prevent Dimming and Driver Issues
- Standardize feed points across parallel rows so brightness matches line-to-line
- Avoid mixing conductor sizes across the same continuous row
- Verify all mechanical connections; a single high-resistance joint can mimic voltage drop
- If using 0–10V dimming, keep low-voltage control wiring segregated from line conductors to reduce interference
- Document the feed strategy on as-builts so future maintenance doesn’t break the electrical balance
Most “strip lighting performance” complaints trace back to feed placement, conductor sizing, and connection quality.
Commissioning Checks Before Turnover
| Check | What to Verify | Why It Matters |
|---|---|---|
| Voltage at far end under load | Measure energized, normal operation | Confirms actual drop, not theoretical |
| Uniform brightness | Walk line and compare ends to midpoints | Catches feed imbalance |
| Thermal behavior | No overheating at joints/connectors | Prevents early failures |
| Control response (if used) | Dimming steps, occupancy response | Confirms integration |
Measuring voltage under load at the far end is the fastest field validation for long-run performance.
Related Strip Lighting Articles
Long-run performance is usually won or lost on feed strategy, bridging method, and how consistently the electrical design is replicated across rows. The following articles expand on continuous-run wiring choices, efficiency planning, and strip-fixture specification in commercial and industrial spaces:
- Strip Light “Continuous Run” Wiring: Evaluating Internal vs. External Bridging for 200-Foot Warehouse Runs
- Energy-Efficient LED Strip Lighting for Commercial Facilities
- Commercial LED Strip Lighting for Efficient, Flexible Space Illumination
- How to Specify LED Strip Light Fixtures for Commercial and Professional Spaces
- Wraparound vs. Strip Lights: Choosing the Right Low-Profile Fixture for Stairwells and Utility Corridors Under LPD Limits
Related Industrial Lighting Categories
For 100 ft+ continuous runs, electrical planning determines uniformity. A clear feed strategy (center feeds, both-end feeds, or segmented feeds), consistent conductor sizing, and under-load voltage verification prevent brightness gradients and driver instability.
