Why Stairwell and Corridor Lighting Is Usually an Efficiency and Control Problem
Stairwells and utility corridors are high-runtime spaces with strict energy constraints. Many projects are limited by Lighting Power Density (LPD) targets while still requiring safe, uniform illumination for circulation and egress. In these spaces, fixture selection alone rarely determines success—distribution, controls, and lumen tuning usually decide whether a design meets energy code without sacrificing visibility.
Related resource: For broader guidance on how low-profile linear fixtures integrate with troffers, panels, recessed layouts, controls, and inspection-ready documentation across commercial interiors, reference the Commercial Ceiling Lighting Buying Guide.

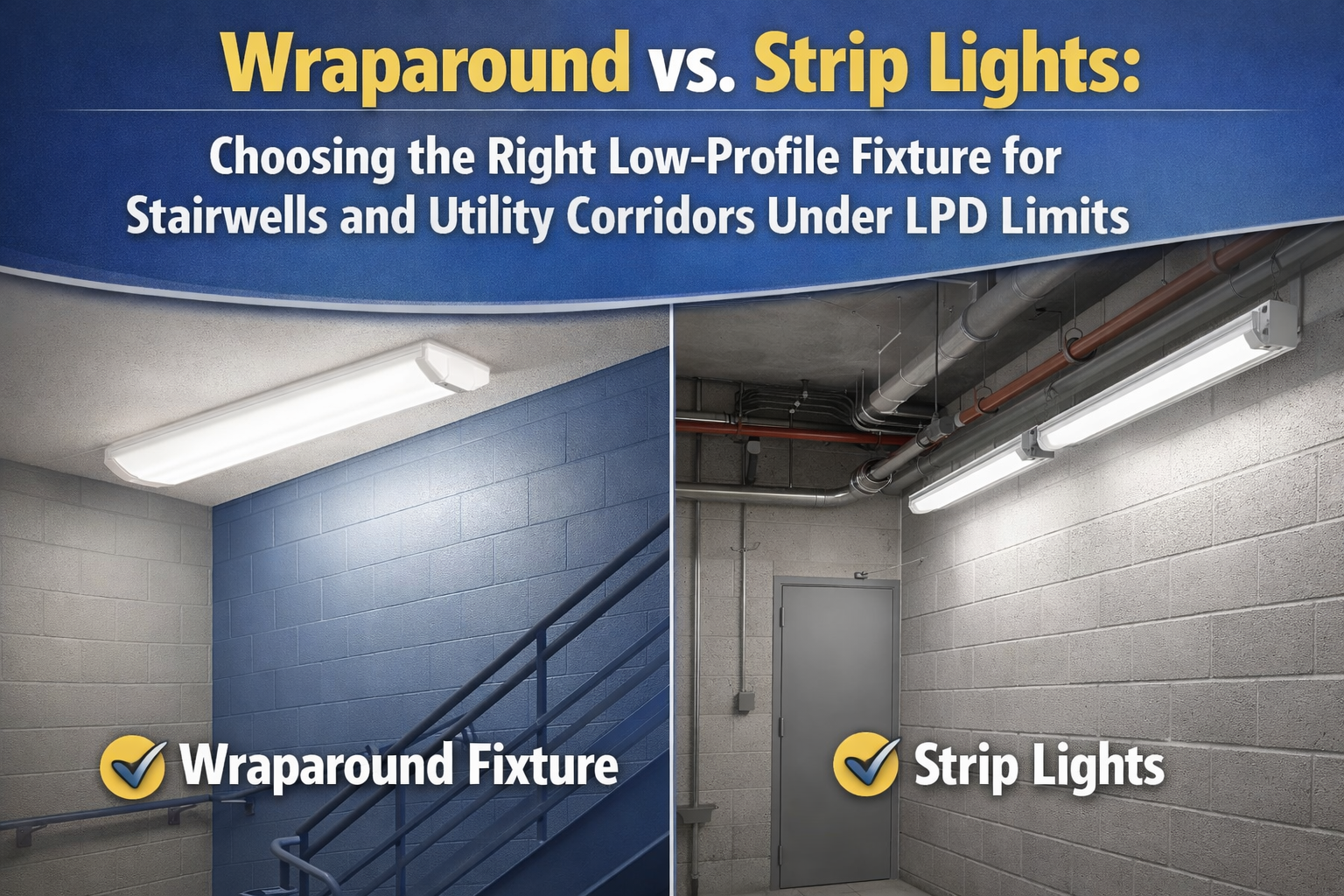

How Wraparound and Strip Lights Differ
| Fixture Type | Optical Behavior | Typical Result |
|---|---|---|
| Wraparound | Diffuse lens wraps sides; wider distribution | Smoother wall wash, fewer dark bands |
| Strip | More direct downward distribution | Higher efficiency and punch, more contrast |
Distribution and Uniformity in Narrow Spaces
Corridors and stairwells benefit from controlled lateral distribution. Wraparounds often reduce shadowing and improve perceived brightness on walls, which can allow lower wattage while maintaining comfort and safety perception.
| Space Condition | Better Default | Reason |
|---|---|---|
| Narrow corridor with many doors | Wraparound | Better side distribution improves facial recognition and visibility |
| Utility corridor with exposed piping | Strip | Higher efficiency; good downward task visibility |
| Stairwells with landings | Wraparound | Reduces harsh contrast and improves uniformity |
LPD Considerations and Control Strategies
If LPD is the constraint, the fastest savings typically come from controls and right-sized lumen packages, not from choosing the most aggressive optic.
- Use step-dimming or bi-level control for stairwells and long corridors
- Occupancy sensors reduce runtime dramatically in low-traffic utility corridors
- Selectable wattage fixtures should be set based on measured performance, not defaulted to max
Where Each Fixture Type Is the Better Choice
| Application | Preferred Fixture | Selection Reason |
|---|---|---|
| Public stairwell | Wraparound | Uniformity and reduced harsh glare |
| Back-of-house corridor | Strip | Efficiency and maintenance simplicity |
| Mechanical/utility run | Strip | Directional light for equipment visibility |
Common Mistakes in Stairwell Retrofits
- Over-lighting to “feel safe” instead of using bi-level controls
- Mounting strips where lateral distribution is needed, creating harsh shadows
- Ignoring lens glare; diffuse distribution is not always low-glare
- Setting selectable fixtures to max output by default and failing LPD targets
Related Commercial Wraparound Lighting Articles
In stairwells, corridors, and other circulation spaces, performance is shaped by optical distribution, mounting constraints, retrofit conditions, and control strategy—not fixture form alone. The following resources expand on wraparound lighting selection, retrofit execution, and specification considerations for low-profile commercial interiors.
- Retrofitting Surface-Mount Wraparounds: Converting Legacy 4-Lamp T12 Fixtures to LED Without Repainting the Ceiling
- Specifying Wraparound LED Lighting for Offices, Schools, and Facilities
- LED Wrap Fixtures for Commercial and Institutional Interior Spaces
- Commercial LED Wrap Fixtures: Applications, Performance, and Specification
Related Linear and Corridor Lighting Categories
Wraparounds typically improve perceived uniformity and reduce contrast in stairwells and public corridors. Strip lights can be the better choice in utility corridors where efficiency, directional visibility, and simpler distribution are the priority. Under LPD limits, control strategy and correct lumen selection usually matter more than fixture form factor.
Frequently Asked Questions
What is the most cost-effective way to keep the existing footprint?
The simplest method is a Type B LED tube conversion. By removing the old ballast and wiring the sockets directly to line voltage, you keep the original metal housing and lens intact. Since the housing never leaves the ceiling, there is zero risk of exposing unpainted areas or ghosting. This approach also removes the ballast—the most common failure point—from the system entirely.
Should I reuse my old wraparound lenses or buy new ones?
If your current lenses are over 10 years old, they have likely yellowed due to UV exposure from the old fluorescent lamps. A yellowed lens can reduce light output by as much as 20% and will make your brand-new 4000K or 5000K LED tubes look dingy and green. If the plastic is brittle or discolored, it is highly recommended to replace the entire fixture with a modern LED wraparound that matches the dimensions of the old one to ensure a clean look and maximum light transmission.
Why do 4-lamp retrofits often result in too much light?
A legacy 4-lamp T12 fixture with a dirty lens might only be delivering 4,000 net lumens. Replacing it with four modern LED tubes can jump that output to over 8,000 lumens, which can cause harsh glare in offices or hallways. When retrofitting a 4-lamp fixture, you can often achieve better results—and save more energy—by using only two high-output LED tubes and centered spacers, or by selecting a wattage-selectable LED fixture to dial in the appropriate brightness.
What is an Internal LED Retrofit Kit and is it better than tubes?
An internal retrofit kit consists of LED strips and a driver mounted on a metal plate that snaps into your existing housing. This is superior to tubes because it replaces the entire internal guts of the light with a high-performance LED engine. These kits often provide better heat dissipation than tubes and a more uniform light distribution across the lens, eliminating the striping effect sometimes seen with individual LED bulbs.
How do I identify shunted vs non-shunted sockets for Type B wiring?
This is the most critical safety check for a ballast-bypass retrofit. Most legacy T12 fixtures use non-shunted sockets (where the two pin-holes are not connected), while many T8 fixtures use shunted sockets. If you are installing single-ended LED tubes, you must use non-shunted sockets. If you have shunted sockets, you must either replace them or use double-ended LED tubes. Wiring an LED tube to the wrong socket type can cause an electrical short or immediate tube failure.
