Why Surge Protection Is the Leading Cause of Outdoor LED Failure
Outdoor LED floodlights are routinely exposed to voltage transients caused by lightning strikes, utility switching events, and ground potential rise. While LED drivers are efficient and compact, they are inherently sensitive to surge energy. Inadequate surge protection remains one of the most common causes of premature failure in exterior luminaires.
The difference between a 10kV and 20kV surge rating is not incremental—it represents a substantial increase in the amount of transient energy the fixture can absorb before catastrophic driver damage occurs.
How Voltage Surges Damage LED Floodlights
Surges introduce short-duration, high-voltage spikes that exceed the dielectric limits of LED drivers and internal components.
- Metal oxide varistors (MOVs) clamp voltage until they degrade
- Repeated surges lower the MOV’s clamping threshold
- Driver input stages experience thermal and electrical stress
Unlike incandescent or HID systems, LED drivers fail abruptly once internal protection components are exhausted.

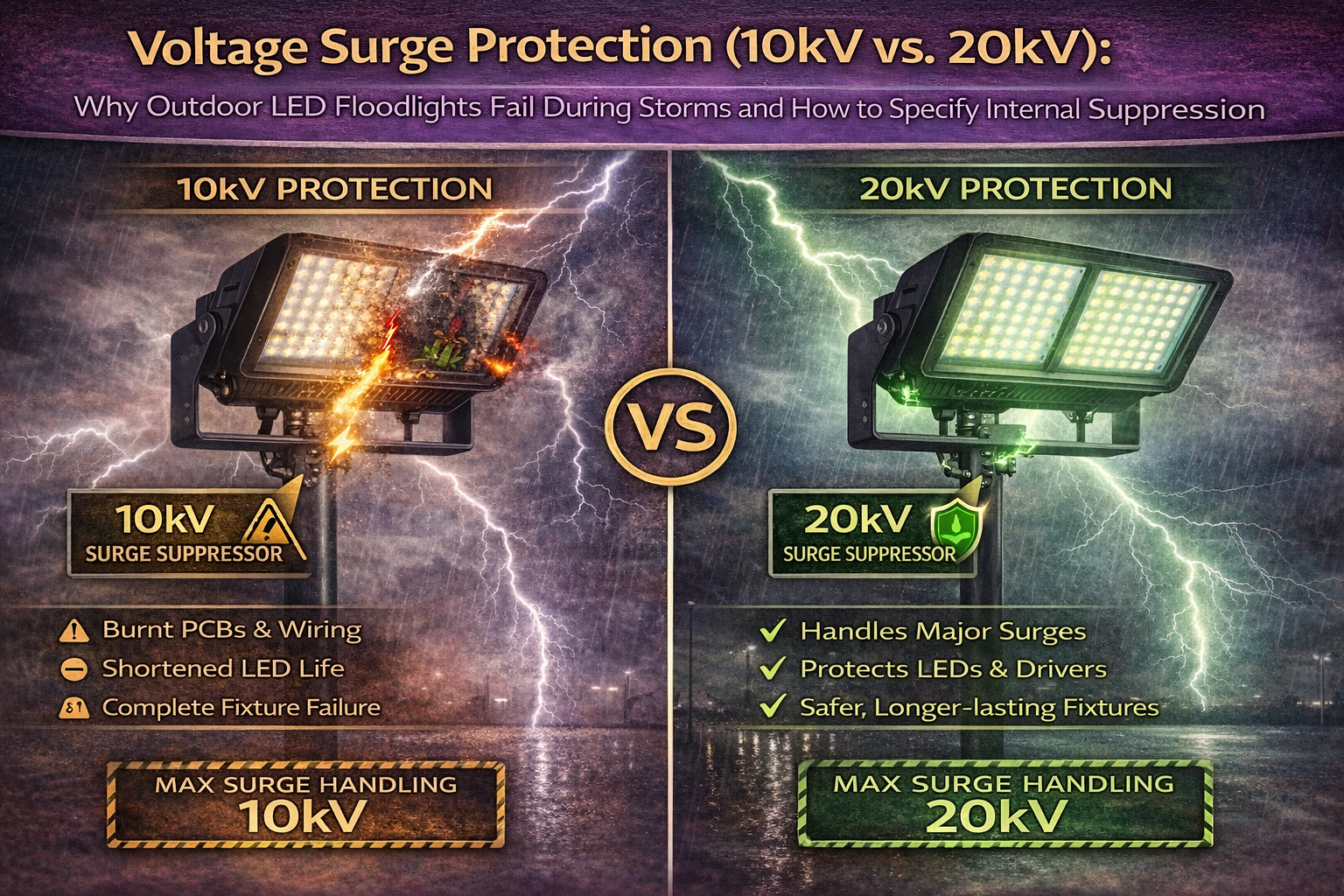

Understanding 10kV vs. 20kV Surge Ratings
Surge ratings define the maximum transient voltage a fixture can withstand under standardized test conditions.
| Surge Rating | Protection Level | Typical Application |
|---|---|---|
| 10kV | Moderate | Standard commercial exterior |
| 20kV | High | Storm-prone or critical sites |
Doubling the surge rating significantly increases survivability during nearby lightning events.
Storm-Related Failure Patterns in Outdoor Installations
Post-storm service calls often reveal consistent failure characteristics.
| Observed Issue | Root Cause |
|---|---|
| Multiple fixtures dead on same circuit | Shared surge exposure |
| Drivers failed, LEDs intact | Input stage damage |
| Intermittent flickering after storms | Degraded MOVs |
Fixtures without sufficient surge headroom often fail months after the storm event, not immediately.
Internal vs. External Surge Suppression
Surge protection can be provided internally within the luminaire or externally at the pole or panel.
| Protection Method | Advantages | Limitations |
|---|---|---|
| Internal SPD | Factory integrated, space efficient | Limited replacement options |
| External SPD | Serviceable, higher capacity | Additional install cost |
For high-wattage floodlights, internal protection alone may be insufficient in severe environments.
Specifying Surge Protection for High-Risk Sites
Site conditions should dictate surge protection strategy.
| Site Condition | Recommended Surge Rating | Additional Measures |
|---|---|---|
| Urban commercial areas | 10kV minimum | Grounding verification |
| Open parking lots | 20kV | Pole-mounted SPD |
| Coastal or storm-prone regions | 20kV+ | Panel and fixture protection |
Related Commercial Lighting Categories
Specifying 20kV surge protection for outdoor LED floodlights significantly reduces storm-related failures, extends driver lifespan, and lowers long-term maintenance costs in high-risk environments.
