Understanding Flicker in 0–10V Dimming Systems
0–10V dimming is widely used in commercial LED lighting because it is simple, scalable, and compatible with many control platforms. Despite this, flicker remains one of the most common commissioning and service issues in dimmed LED installations.
In most cases, flicker is not caused by the fixture or driver itself. It is the result of wiring polarity errors, grounding issues, electrical noise, or improper separation between control and power conductors.
How 0–10V Dimming Works in LED Drivers
In a 0–10V dimming system, the LED driver supplies a reference voltage and reads a control signal to determine output level.
- 10V = full light output
- 0–1V = minimum dim or off (driver dependent)
- The control circuit is low-voltage and low-current
The dimming signal does not power the fixture. It only communicates a control reference, making it sensitive to wiring errors and interference.
Common Symptoms of 0–10V Dimming Flicker
| Observed Behavior | Likely Root Cause |
|---|---|
| Flicker only when dimmed below 50% | Noise pickup on low-voltage control wiring |
| Random flicker across multiple fixtures | Shared ground or induced voltage |
| Flicker only when nearby equipment starts | Electromagnetic interference (EMI) |
| Uneven dimming between fixtures | Polarity reversal or inconsistent wiring |
Identifying when flicker occurs is the first step toward isolating the cause.

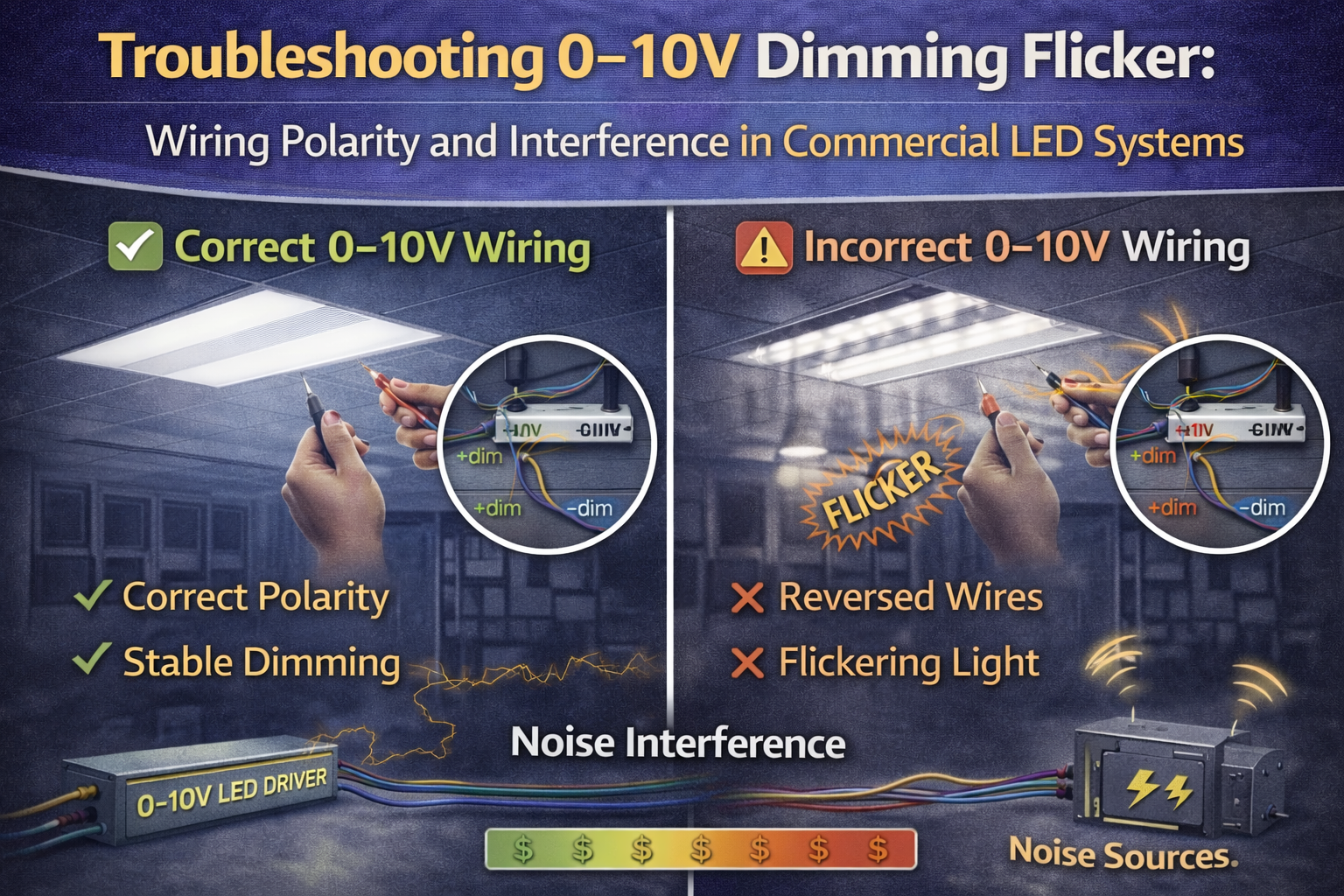

Wiring Polarity Errors and Their Effects
0–10V systems are polarity sensitive. Reversing the positive and negative control conductors can cause unstable dimming behavior.
| Polarity Condition | Resulting Behavior |
|---|---|
| Correct polarity | Smooth, stable dimming |
| Reversed polarity | Flicker, erratic dimming, or failure to dim |
| Mixed polarity across fixtures | Inconsistent brightness between luminaires |
Polarity issues commonly occur when fixtures are daisy-chained without verification at each connection point.
Electrical Interference and Noise Sources
Because the dimming circuit operates at low voltage, it is highly susceptible to electrical noise.
| Noise Source | Impact on Dimming Signal |
|---|---|
| Parallel runs with line-voltage conductors | Induced voltage causing signal fluctuation |
| VFDs and motor controllers | High-frequency EMI injection |
| Poorly grounded control devices | Unstable reference voltage |
| Long control wire runs | Signal attenuation and noise pickup |
Most interference issues are installation-related rather than product defects.
Grounding and Shielding Considerations
Improper grounding can introduce voltage offsets that appear as flicker at low dim levels.
- Control grounds should be consistent across all devices
- Shielded control cable should be grounded at one end only
- Never tie control negative directly to earth ground unless specified
Ground loops are a frequent cause of flicker in large, multi-zone systems.
Systematic Flicker Troubleshooting Process
| Step | Action | Purpose |
|---|---|---|
| 1 | Verify polarity at driver terminals | Eliminate wiring reversal |
| 2 | Disconnect controls and force full output | Confirm fixture stability |
| 3 | Measure control voltage at driver | Detect signal instability |
| 4 | Inspect routing of control wiring | Identify noise coupling |
| 5 | Test with temporary isolated control source | Confirm source of interference |
This process prevents unnecessary driver or fixture replacement.
When Flicker Is Not a Wiring Issue
Although less common, flicker can originate from other sources.
- Driver minimum dim level set below LED operating threshold
- Incompatible control device output range
- Driver firmware limitations at low current levels
These cases should be evaluated only after wiring and interference issues are ruled out.
Related Dimming and Control Categories
- Commercial LED lighting
Most 0–10V flicker issues can be resolved without replacing equipment. Proper polarity, clean grounding, and control-wire separation remain the most effective tools for maintaining stable dimming performance.
