Why “Dimming” Is a Driver Performance Spec, Not a Feature Checkbox
Many commercial LED fixtures support 0–10V dimming, but not all dimming implementations deliver the same low-end behavior. In conference rooms and presentation spaces, dimming performance at the bottom end determines whether the room can transition smoothly without visible steps, flicker, or uneven behavior between fixtures.
“10% dimming” is common in standard drivers. “1% dimming” (or lower) typically requires better driver design, better control interfaces, and stricter installation practices.
What 1% Dimming Means in Practice
1% dimming describes the driver’s ability to reduce light output smoothly to approximately 1% of full output while maintaining stability. The technical challenge is maintaining current regulation at very low output without flicker or dropout.

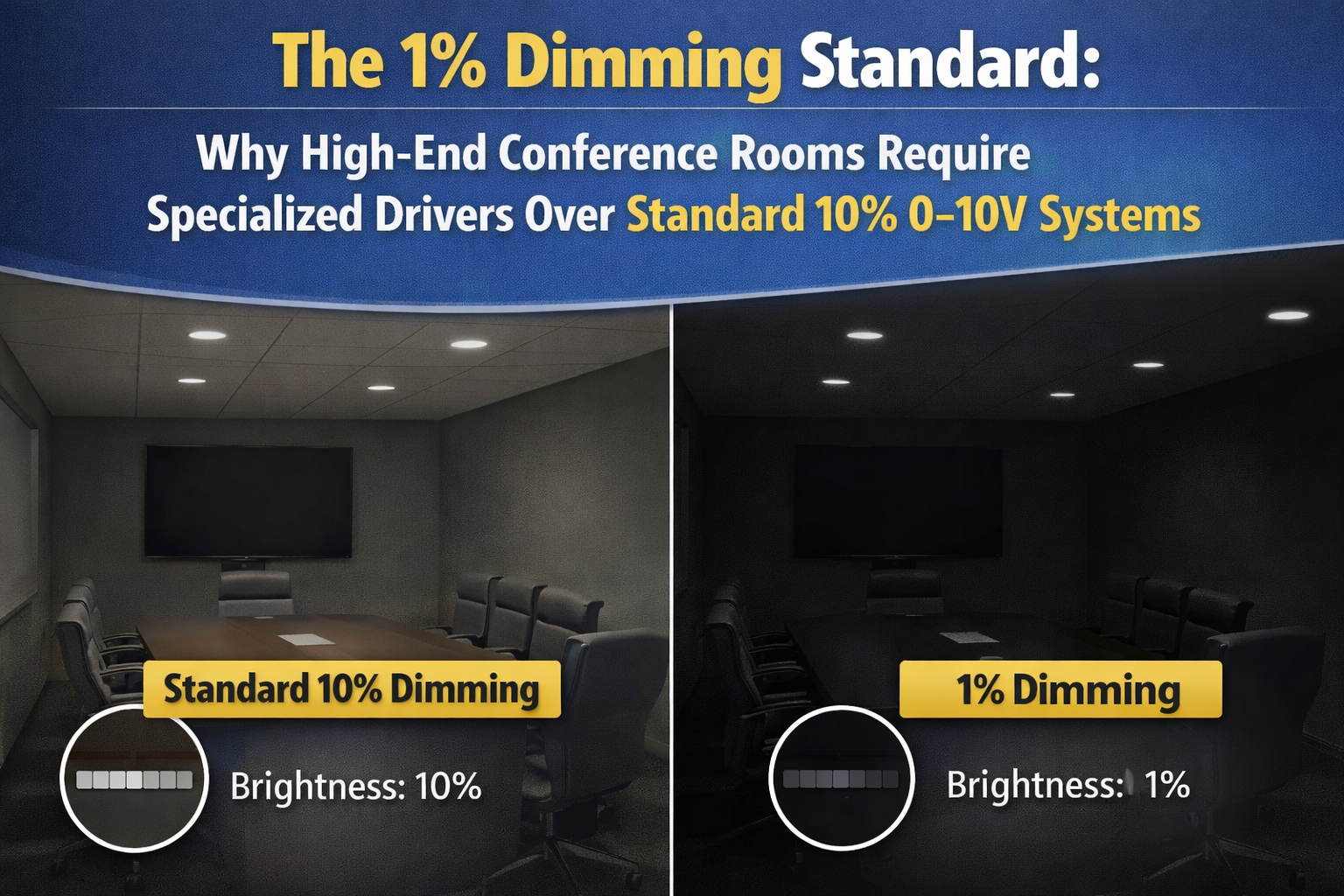

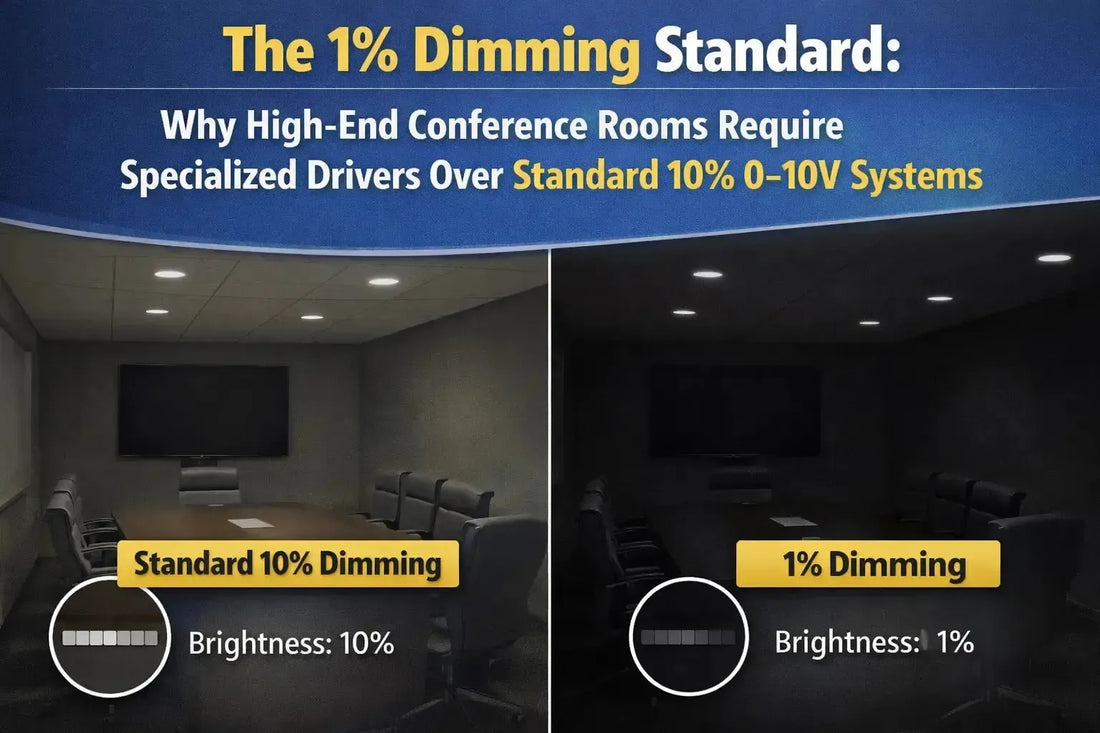

| Dimming Level | What Users Notice | Where It Matters |
|---|---|---|
| 10% minimum | Room still “bright” at minimum | General offices, corridors |
| 1% minimum | True low-light scene possible | Conference rooms, AV spaces |
| 0.1%–0.5% (specialty) | Near-blackout without switching off | Theaters, broadcast, premium AV |
Why 10% 0–10V Systems Fail in Conference Rooms
- Insufficient low-end range: 10% minimum is often too bright for projection and video calls.
- Stepping near the bottom: some drivers dim in visible increments.
- Fixture mismatch: multiple drivers respond differently to the same control voltage.
- Flicker sensitivity: cameras and viewers detect instability below ~20% more readily.
Driver and Control Options That Actually Hit 1%
| Approach | Best Use | Key Requirement |
|---|---|---|
| 1% 0–10V driver | Simple conference dimming | Driver must be rated to 1% and tested |
| Digital control (e.g., DALI) | Multi-scene rooms | Proper commissioning and addressing |
| Phase dimming (limited commercial cases) | Retrofits with existing controls | Compatibility validation is mandatory |
Wiring and Noise Factors That Break Low-End Dimming
Low-end dimming is sensitive to control wiring quality and electrical noise. A driver that can dim to 1% in a lab can behave like a 10% driver in the field if the control wiring is poor.
| Problem | Typical Cause | Field Fix |
|---|---|---|
| Flicker below 20% | Noise coupling into 0–10V control leads | Separate LV control from line voltage; verify grounding |
| Fixtures dim unevenly | Voltage drop on long 0–10V run; mixed driver models | Shorten/control runs; standardize drivers |
| Dropout at low end | Driver min-load behavior / control wiring errors | Confirm driver spec; check polarity and terminations |
Conference Room Spec Checklist
- Require 1% minimum dimming (or lower) with documented driver performance
- Standardize drivers across the room (avoid mixed revisions)
- Use separate zones for table, perimeter, and presentation wall
- Validate low-end behavior on camera (video calls detect flicker first)
- Commission scenes: “Meeting,” “Presentation,” “Video,” “Cleanup”
Related Conference Room Lighting Categories
Conference rooms expose the weaknesses of standard 10% dimming systems. When the use case demands true low-light scenes without flicker, the driver and control specification must be treated as a performance requirement, not a feature checkbox.
Frequently Asked Questions
How do Supply vs. Return air-handling troffers differ?
A Supply Troffer is connected directly to the HVAC ductwork via a flexible boot. It features slots along the side of the lens that distribute conditioned air into the room. A Return Troffer (often called Static Return) does not usually have a duct connection; instead, it has open vents that allow room air to be pulled up into the ceiling plenum. Because return troffers draw air over the LED driver and boards, they can actually help with thermal management, though they also tend to accumulate dust faster than supply fixtures.
What are the fire rating implications for air-handling fixtures?
When you use air-handling troffers, you are effectively creating holes in your ceiling membrane for air movement. If the ceiling is a fire-rated assembly, the fixtures must be evaluated for their Fire-Rated (FR) status. Often, you will need to install specialized fire blankets or tents over the fixtures to maintain the integrity of the 1-hour or 2-hour rating. Additionally, if the troffer is a supply unit, the flexible duct connection must meet local smoke and flame spread codes for plenum spaces.
How does airflow impact LED performance and color shifting?
One hidden benefit of air-handling troffers is active cooling. As air moves through the fixture, it carries away heat from the LED chips. This can lead to a slight increase in efficacy and a longer L70 lifespan. However, if a supply troffer is delivering extremely cold air directly across one side of the LED board and not the other, it can cause uneven thermal stress. In rare cases, this leads to a color shift where one side of the fixture appears slightly warmer or cooler than the other due to the way the phosphors react to the temperature differential.
Do integrated vents affect the light distribution and glare?
Modern air-handling troffers use slotted side rails that are designed to be nearly invisible. However, because these rails take up physical space, the luminous surface of the lens is slightly smaller than a standard 2x4 troffer. This can result in a more concentrated center-beam of light. When planning an open office, you must ensure that the air-handling slots do not create dark bands or shadow gaps on the ceiling, which can make the space feel smaller or more cavernous.
Why is Plenum Depth a critical measurement for air-handling units?
Standard LED panels are often less than 2 inches deep, but air-handling troffers require significant headroom for the air boots and duct connections. In many 2026-grade office retrofits, you may find that the plenum is crowded with data cables, sprinkler pipes, and structural beams. Before specifying air-handling units, you must verify that you have at least 6 to 8 inches of clear vertical space above the grid to accommodate the duct transitions without kinking the flexible hose, which would choke the HVAC system.
