Why Control Strategy Matters More Than Fixture Output for Perimeter Lighting
Perimeter lighting is often evaluated based on fixture output, distribution, and mounting height. In practice, however, control reliability determines whether perimeter lighting actually performs its security function. A high-output luminaire provides no benefit if it fails to activate at dusk, shuts off prematurely, or cycles unpredictably.

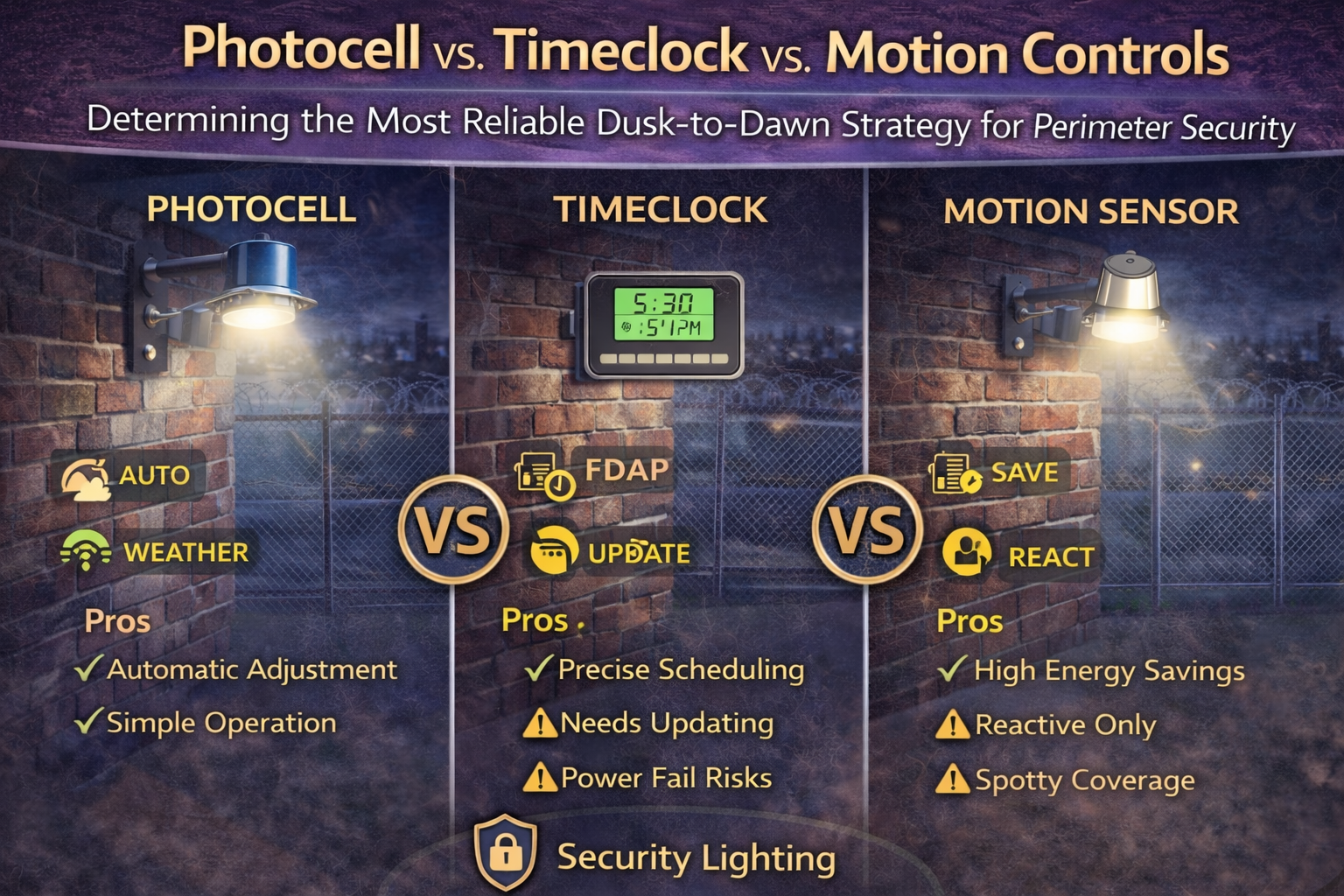

Three control strategies dominate perimeter lighting applications: photocells, timeclocks, and motion-based controls. Each operates on a different logic model, and each introduces distinct strengths and failure risks depending on site conditions.
Operational Logic of Common Perimeter Controls
Each control strategy determines fixture operation based on a different input signal. Understanding this logic is critical to predicting long-term reliability.
| Control Type | Primary Input | Decision Basis |
|---|---|---|
| Photocell | Ambient light level | Dusk/dawn detection |
| Timeclock | Scheduled time | Fixed or astronomical schedule |
| Motion sensor | Occupancy or movement | Presence detection |
Because each relies on a different trigger, their failure modes differ substantially.
Photocell Controls: Performance and Limitations
Photocells are the most common dusk-to-dawn control used in perimeter lighting. They activate fixtures based on ambient light levels and automatically adapt to seasonal daylight changes.
Strengths
- Automatic dusk-to-dawn operation
- No programming required
- Responds to actual site lighting conditions
Limitations
- Susceptible to false triggering from nearby light sources
- Performance degrades if sensor becomes obstructed or contaminated
- Inconsistent activation in shaded or reflective environments
| Failure Risk | Common Cause | Result |
|---|---|---|
| Daytime activation | Artificial light feedback | Unnecessary energy use |
| Delayed nighttime activation | Improper sensor placement | Security exposure |
Timeclock Controls: Performance and Limitations
Timeclocks activate lighting based on a programmed schedule. Astronomical timeclocks calculate sunrise and sunset based on geographic location.
Strengths
- Predictable and repeatable operation
- Immune to light interference
- Centralized control of multiple circuits
Limitations
- Requires correct programming and maintenance
- Drift or power loss can disrupt schedules
- Does not respond to abnormal weather conditions
| Issue | Cause | Impact |
|---|---|---|
| Lights on during daylight | Incorrect programming | Energy waste |
| Lights off at night | Clock drift or reset | Security risk |
Motion Controls: Performance and Limitations
Motion-based controls activate lighting when movement is detected. In perimeter applications, they are often used to supplement baseline illumination rather than replace it.
Strengths
- Reduces energy use during inactivity
- Provides alert-based illumination
- Effective in low-traffic zones
Limitations
- Not suitable as sole dusk-to-dawn control
- Detection gaps in large open areas
- False triggers from wildlife or environmental movement
For perimeter security, motion controls are best used in combination with continuous low-level illumination.
Selecting the Right Control Strategy for Site Conditions
The most reliable perimeter lighting systems often combine multiple control strategies.
| Site Condition | Recommended Strategy | Reason |
|---|---|---|
| Standard commercial perimeter | Photocell | Simple dusk-to-dawn reliability |
| Large multi-zone facility | Astronomical timeclock | Centralized scheduling |
| Low-traffic security zones | Photocell + motion | Baseline light with alert response |
Related Commercial Lighting Categories
Reliable perimeter security lighting depends on selecting a control strategy that aligns with site conditions, maintenance capabilities, and security objectives rather than relying on a single generic dusk-to-dawn solution.
Frequently Asked Questions
Why are municipalities specifically banning 5000K for outdoor use?
The primary reason is Rayleigh scattering. Shorter wavelengths of light (blue/cool light) scatter more easily when they hit molecules in the atmosphere. 5000K LEDs have a significantly higher blue light peak than 3000K LEDs. This scattering creates skyglow, which obscures the stars and disrupts nocturnal ecosystems. To combat this, many municipal codes now mandate a maximum CCT of 3000K for all outdoor commercial installations to meet Dark Sky standards.
Does switching to 3000K mean the area will look dimmer or less safe?
Not necessarily. While 5000K light is often perceived as brighter because of its harshness, it actually creates higher levels of disability glare, which can make it harder for the human eye to see into shadows. 3000K light provides better visual comfort and reduces the stray light that causes eye fatigue. When paired with high-quality optics, 3000K wall packs provide sufficient contrast for security cameras and foot traffic without the blinding glare of cooler temperatures.
What is a Full Cutoff fixture, and is it required for Dark Sky compliance?
A Full Cutoff wall pack is engineered so that zero light is emitted above the horizontal plane (90 degrees). Many traditional semi-cutoff wall packs allow light to escape upward and outward, contributing directly to light pollution. For a wall pack to be truly Dark Sky Compliant, it must feature a flat lens or internal shielding that directs 100% of the light downward toward the ground or the building perimeter.
How do I identify a Dark Sky compliant wall pack in a specification?
You should look for fixtures with a U0 (zero uplight) rating in their BUG (Backlight, Uplight, Glare) report. A fixture must combine a 3000K CCT (or warmer) with full-cutoff optics to receive Dark Sky certification. Simply selecting an LED fixture is not enough; you must verify that the specific model is IDA-approved or meets local U0 uplight requirements to pass 2026 code enforcement.
Are there energy efficiency penalties for choosing 3000K over 5000K?
There is a minor efficacy tradeoff. Because 3000K LEDs require more phosphor to shift the blue light into warmer tones, they typically produce about 5% to 7% fewer lumens per watt than 5000K LEDs. However, this is usually offset by improved visual performance and reduced glare, which often allows for slightly lower foot-candle targets while maintaining the same level of perceived safety.
