Why Hazardous Location Classification Is a Life-Safety Decision
Direct Answer: Hazardous-location lighting must be selected based on the hazard type (gas/vapor vs. combustible dust) and the likelihood of its presence (Division 2 = abnormal conditions). Class I Division 2 addresses flammable gases/vapors; Class II Division 2 addresses combustible dust. The difference is not cosmetic—gas hazards drive requirements around arcing isolation and vapor entry control, while dust hazards drive dust-tight construction, accumulation control, and surface-temperature management. A fixture rated for one is not automatically safe for the other.
Hazardous location lighting is not selected based on lumen output or fixture style—it is selected based on the presence, type, and behavior of explosive gases or combustible dusts. Misclassifying an environment or installing the wrong fixture type can introduce ignition sources, violate NEC requirements, and expose facility owners to severe safety and liability risks.
Key definition: A hazardous location classification identifies the material that can create an explosive atmosphere (gas/vapor or dust) and how often it may be present. Division 2 does not mean “low risk”—it means the hazard is expected only during abnormal conditions such as leaks, ventilation failures, spills, or process upsets.
Two of the most commonly misunderstood classifications are Class I Division 2 and Class II Division 2. While both describe environments where hazardous materials are not normally present under normal operating conditions, the nature of the hazard—gas versus dust—fundamentally changes fixture design requirements.
In both cases, the luminaire must be listed/labeled for the correct hazardous location rating and specified with appropriate thermal limits (often communicated as a temperature code/T-rating and ambient rating) so fixture surface temperatures remain below ignition thresholds for the material present.
Understanding NEC Hazardous Location Classes and Divisions
The National Electrical Code (NEC) categorizes hazardous locations by the type of material present and the likelihood of its presence.
| Classification | Hazard Type | Presence Condition |
|---|---|---|
| Class I | Flammable gases or vapors | May be present |
| Class II | Combustible dust | May accumulate |
| Division 2 | Not normally present | Abnormal conditions only |
Division 2 environments are often “safe” on routine days—until a leak, spill, process upset, or ventilation failure creates a hazardous mixture. Fixtures must be designed for that abnormal-event window.
What is the most common hazardous-location mistake?
Choosing a fixture by application (“paint booth light” or “grain facility light”) instead of by the actual material profile and its ignition behavior. Classification should start with the hazard material and conditions, then the fixture listing follows from that classification.
Class I Division 2: Gas and Vapor Environments
Class I Division 2 locations involve flammable gases or vapors that are typically contained but may escape due to leaks or equipment failure.
Common examples include:
- Paint spray booths
- Fuel storage and transfer areas
- Chemical processing rooms
- Solvent handling zones
| Design Concern | Why It Matters |
|---|---|
| Arcing/sparking isolation | Any ignition-capable component must be isolated from the hazardous atmosphere |
| Vapor entry control | Sealing and enclosure design reduce the chance of vapor reaching ignition sources |
| Surface temperature limits (T-rating) | Fixture must remain below ignition temperature thresholds for the gas/vapor present |
Fixtures are designed to prevent ignition during abnormal gas presence, not continuous exposure.
Class II Division 2: Combustible Dust Environments
Class II Division 2 locations involve combustible dust that may accumulate under abnormal conditions. Dust hazards differ from vapor hazards because dust can settle, build up, and insulate heat, changing thermal behavior over time.
Typical facilities include:
- Grain silos and elevators
- Flour mills
- Woodworking shops
- Chemical powder handling
| Design Concern | Why It Matters |
|---|---|
| Dust-tight construction | Prevents dust penetration and internal accumulation near electrical components |
| Surface temperature limits (T-rating) | Dust layers can insulate heat; temperature control prevents ignition and charring |
| Ingress protection strategy | Gaskets, lens sealing, and enclosure integrity reduce dust entry over time |
Dust hazards often require stricter sealing discipline than gas hazards due to accumulation over time and the way dust changes thermal performance.

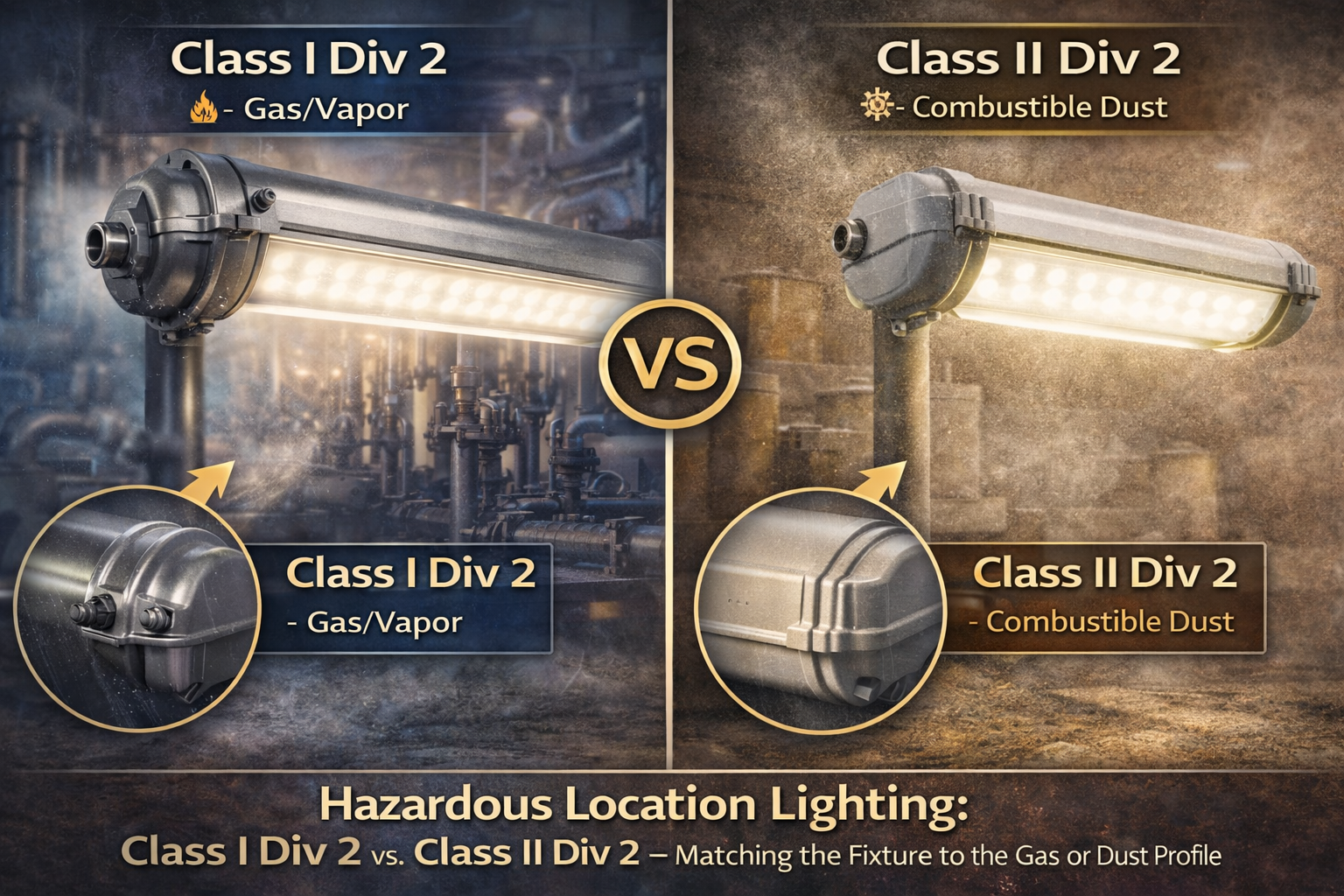

Key Fixture Design Differences
| Design Element | Class I Div 2 | Class II Div 2 |
|---|---|---|
| Primary hazard | Gas/vapor ignition | Dust ignition / dust layer heating |
| Sealing priority | Vapor entry control and isolation of ignition sources | Dust-tight enclosure to prevent buildup and insulation |
| Thermal risk mode | Ignition by spark/arc or hot surface during vapor event | Ignition by hot surface under dust layers or internal dust accumulation |
Fixtures rated for one class are not automatically safe for the other. Always match the fixture listing to the hazard class/division in the area classification documentation.
Matching the Fixture to the Hazard Profile
Correct classification starts with identifying the material present—not the room type—and then confirming the operating and abnormal conditions that can introduce the hazard.
How do you specify the right fixture quickly?
- Identify the hazard material: gas/vapor or dust (and whether both may be present).
- Confirm the classification: Class and Division from the facility’s hazardous-area documentation.
- Match the luminaire listing: fixture must be listed/labeled for the exact Class/Division required.
- Verify thermal limits: confirm temperature code/T-rating and ambient rating are appropriate for the hazard and environment.
- Validate sealing and construction: prioritize enclosure integrity and ingress strategy appropriate to gas vs. dust exposure profiles.
| Environment | Typical Hazard | Required Rating |
|---|---|---|
| Paint booth | Solvent vapors | Class I Div 2 |
| Grain elevator | Grain dust | Class II Div 2 |
| Chemical storage | Mixed vapor risk | Class I Div 2 |
When dust and vapor hazards coexist, the fixture must be rated for both classifications as required by the area classification.
Related Commercial Lighting Categories
Correctly distinguishing between Class I Div 2 and Class II Div 2 environments ensures fixtures are matched to the actual ignition risk—protecting personnel, maintaining code compliance, and reducing liability exposure.
Hazardous-location projects typically require fixtures with recognized safety listings (e.g., UL/ETL listed for the applicable hazardous location), and designs should be reviewed against the facility’s classification documentation before installation.
Frequently Asked Questions
Is IP69K equivalent to NEMA 4X for food processing facilities?
No, they are not interchangeable. IP69K is an IEC standard specifically testing for high-pressure (up to 1,450 psi) and high-temperature (176°F) water jets at close range. NEMA 4X is a North American standard that confirms protection against hose-directed water but adds a mandatory requirement for enhanced corrosion resistance. In food plants, you often need IP69K for the washdown pressure and NEMA 4X to ensure the housing and clips won't degrade from caustic cleaning chemicals.
Why do some IP65 or IP66 vapor-tight fixtures fail in washdown zones?
IP65 and IP66 ratings are designed for rain or standard hose spray, not the concentrated thermal shock and mechanical force of industrial sanitation. When a high-pressure hot water wand hits a standard vapor-tight fixture, the pressure can bypass gaskets not rated for IP69K. Furthermore, the rapid temperature change can create a vacuum effect, pulling moisture through cable glands or seams that aren't engineered for severe washdown environments.
What makes the X in NEMA 4X critical for chemical exposure?
The X designation specifically requires the enclosure to withstand a 200-hour salt spray test without significant corrosion. While a standard NEMA 4 fixture is watertight, a NEMA 4X fixture must be built from materials like 316 stainless steel or specialized fiberglass that can withstand salt, acids, and fertilizers. This makes NEMA 4X the minimum standard for wastewater plants, marine environments, and chemical processing floors.
Can I use standard conduit fittings on an IP69K-rated fixture?
No. An IP69K or NEMA 4X rating only applies to the fixture housing itself. If you use standard zinc or plastic conduit fittings that aren't rated for high-pressure washdown, you create a leak path. To maintain the system's integrity, you must use IP69K-rated cable glands or liquid-tight conduit connectors that match the fixture’s ingress protection rating to ensure the seal remains intact at the entry point.
When should a specifier require both IP69K and NEMA 4X ratings?
You should specify both when the environment is aggressively sanitary, such as in breweries, dairies, or poultry processing. These sites utilize high-pressure hot water (requiring IP69K) combined with caustic foaming agents or acidic cleaners (requiring NEMA 4X corrosion resistance). Specifying only one increases the risk of either internal water damage or external hardware failure within the first year of operation.
