Why Traditional Ground-Level Metrics Fall Short Under Fuel Canopies
Gas station canopy lighting is often evaluated using horizontal foot-candle measurements taken at ground level. While these values are useful for general illumination planning, they do not adequately address the primary safety and security risks present at fueling stations.
Under canopy structures, vertical illumination—light striking faces, torsos, and vehicle sides—is more critical than horizontal light on pavement. High vertical foot-candle levels improve facial recognition, situational awareness, and perceived safety for customers and attendants.

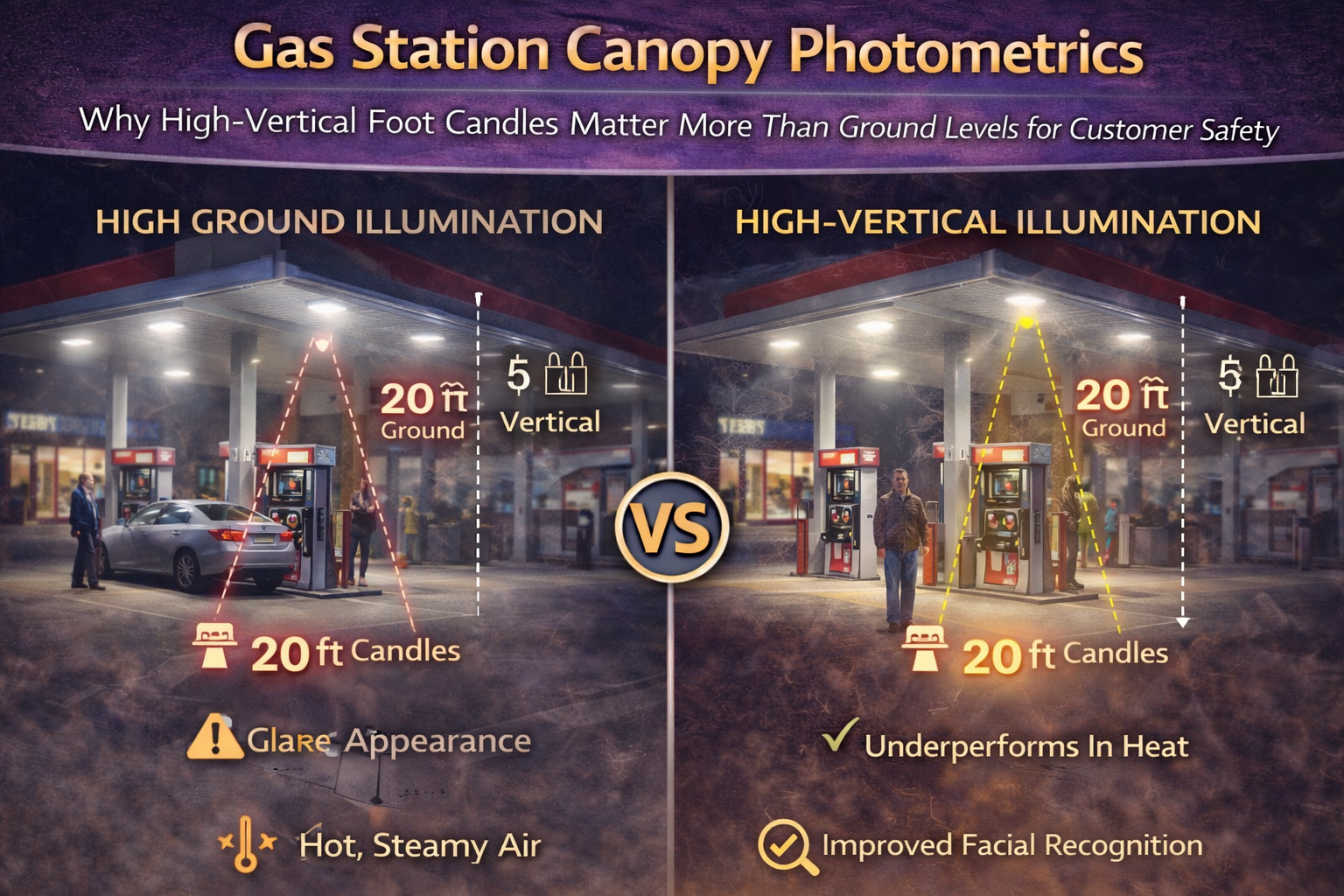

Understanding Horizontal vs. Vertical Illuminance
Horizontal illuminance measures light incident on flat surfaces such as pavement or concrete. Vertical illuminance measures light falling on vertical planes, including people, vehicles, pump faces, and building façades.
| Metric | Measures | Primary Use Case |
|---|---|---|
| Horizontal foot candles | Light on ground surfaces | General illumination and code minimums |
| Vertical foot candles | Light on people and objects | Facial recognition and security |
Fueling environments involve close human interaction, cash transactions, and vehicle movement, making vertical illumination a more meaningful safety metric.
Why Vertical Foot Candles Drive Perceived Safety
Customers judge safety based on visibility of other people, not pavement brightness. Insufficient vertical illumination creates shadows on faces and vehicle interiors even when ground-level lighting appears adequate.
Higher vertical foot-candle levels improve:
- Facial recognition at pump islands
- Visibility inside vehicles
- Camera performance for security systems
- Perceived safety during nighttime fueling
Facilities with strong vertical illumination consistently report lower incident perception and improved customer comfort.
Canopy Optic Design and Vertical Light Delivery
Optical distribution determines how effectively a canopy fixture delivers vertical illumination. Fixtures optimized solely for downward output often produce high ground readings but poor vertical coverage.
| Optic Characteristic | Vertical Illumination Impact | Result |
|---|---|---|
| Wide lateral distribution | High | Improved face and vehicle lighting |
| Narrow downlight focus | Low | Bright pavement, dark faces |
| Edge-to-edge canopy coverage | High | Reduced shadow zones |
Canopy luminaires with optimized lateral throw produce balanced horizontal and vertical illumination.
Common Photometric Mistakes in Canopy Lighting
Many canopy lighting designs fail due to reliance on incomplete photometric criteria.
- Designing to ground foot-candle minimums only
- Ignoring vertical measurement planes in simulations
- Using fixtures with overly narrow optics
- Spacing fixtures too far from pump islands
These errors often result in visually bright canopies that still feel unsafe to users.
Specifying Canopy Lighting for Visibility and Security
Effective canopy lighting specifications prioritize vertical illumination while maintaining reasonable ground-level uniformity.
| Design Goal | Recommended Focus | Reason |
|---|---|---|
| Customer safety | Vertical foot candles | Improves facial visibility |
| Security monitoring | Vertical uniformity | Enhances camera performance |
| Visual comfort | Balanced distribution | Reduces glare and harsh shadows |
Related Commercial Lighting Categories
Canopy lighting designs that prioritize vertical foot-candle performance deliver safer, more secure fueling environments and improve customer perception without excessive energy use.
Frequently Asked Questions
What is the most common reason photocells fail in perimeter applications?
The primary cause of photocell failure is artificial light interference. If a wall pack's photocell is positioned where it can see light from a nearby pole light, a reflective window, or even its own reflected beam, it may trigger a cycling effect where the light turns on and off repeatedly. To ensure reliability, photocells should always be oriented toward the north sky or shielded from direct artificial light sources.
How does an Astronomical timeclock differ from a standard timer?
A standard timer requires manual adjustment as the days get shorter in the winter and longer in the summer. An Astronomical Timeclock has an internal database of sunrise and sunset times based on your specific latitude and longitude. Once programmed, it automatically adjusts the on and off times every day of the year, providing the consistency of a photocell without the risk of false-triggering from dirt or nearby lights.
Can motion sensors be used for primary security lighting?
Motion sensors are rarely recommended as the only control for perimeter security. If a sensor fails or has a blind spot, your perimeter remains dark. The most reliable strategy is a bi-level approach: use a photocell or timeclock to keep fixtures at a 20% dimmed brightness all night for baseline visibility, and use motion sensors to ramp them up to 100% brightness when movement is detected. This provides both security and a visual alert to intruders.
What is Flicker Stress and how does it affect LED drivers?
Flicker stress occurs when a faulty control—usually a dying photocell or a poorly configured motion sensor—causes an LED fixture to rapid-fire on and off. Unlike old HID lamps, LEDs react instantly to power signals. Frequent on/off cycling creates thermal shock within the LED driver, significantly shortening its lifespan. For maximum reliability, ensure your controls have a time delay feature (usually 30–60 seconds) to prevent rapid cycling during passing clouds or car headlights.
Which control method is best for high-vibration industrial areas?
In high-vibration environments, such as near heavy machinery or loading docks, centralized timeclocks are the most reliable. On-fixture photocells and integrated motion sensors contain delicate components that can vibrate loose or provide false readings. By moving the brain of the system into a centralized, wall-mounted timeclock inside the building, you protect the control logic from the environmental stress at the fixture head.
