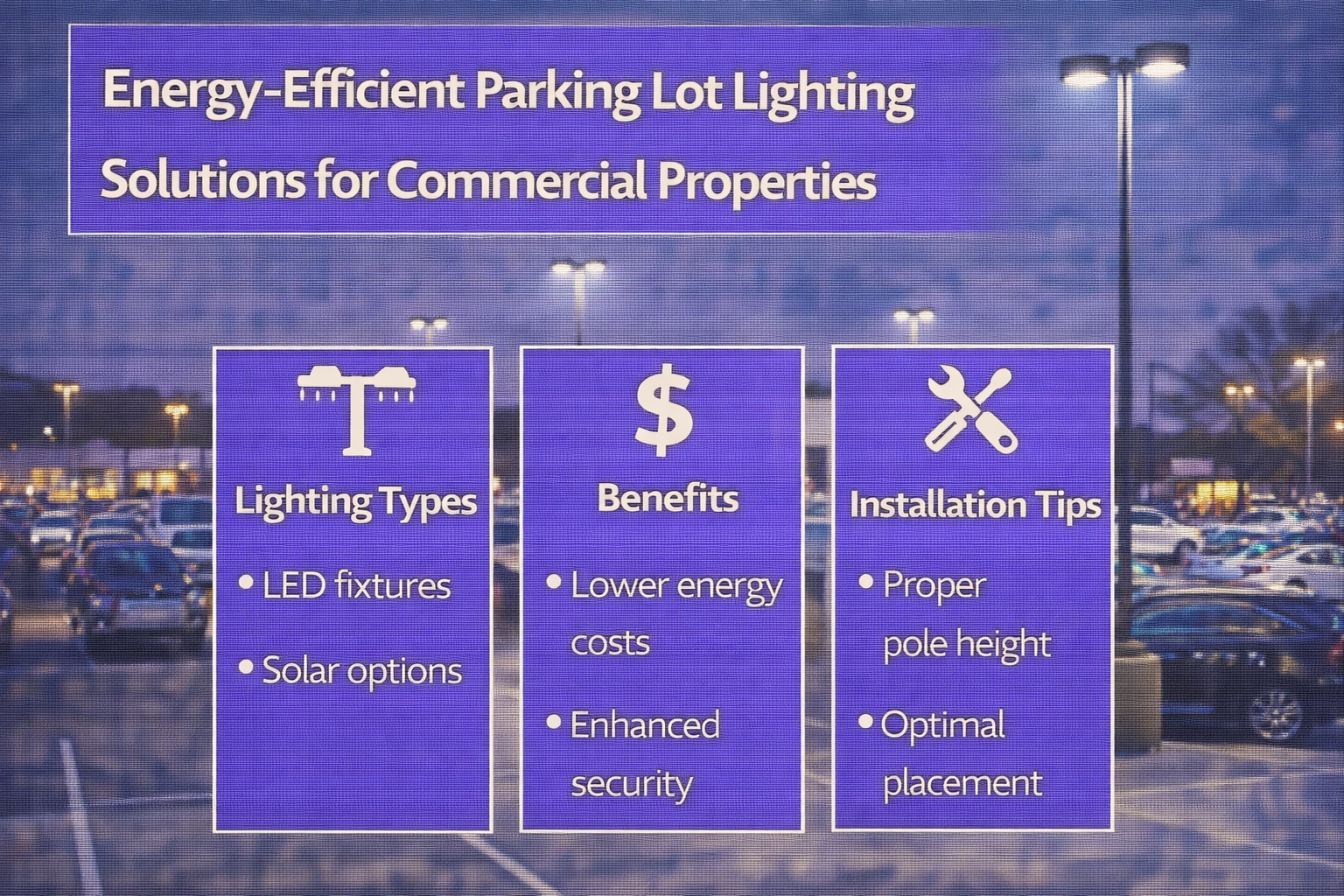

LED Parking Lot Lighting for Safety, Efficiency, and Sustainability
Parking lot lighting is a critical component of commercial exterior infrastructure, supporting pedestrian safety, vehicle navigation, and site security. At the same time, exterior lighting systems can represent a significant portion of a facility’s energy usage if not properly specified.
Modern LED site lighting and LED area lights provide high-output illumination with dramatically reduced energy consumption and maintenance requirements, making them the preferred solution for commercial parking lots, campuses, and exterior facilities.
Operational Benefits of Energy-Efficient Parking Lot Lighting
Reduced Energy Consumption
- LED parking lot fixtures consume substantially less power than HID or metal halide systems
- Higher lumen-per-watt performance delivers required light levels with fewer fixtures
- Adaptive controls reduce runtime during low-traffic periods
Lower Maintenance and Lifecycle Costs
- LED systems offer rated lifespans exceeding 50,000 hours
- Eliminates lamp and ballast replacement cycles
- Reduced service calls in large or hard-to-access parking areas
Environmental and Regulatory Benefits
- Lower electrical demand reduces greenhouse gas emissions
- DLC-listed fixtures may qualify for utility rebate programs
- Improved optical control supports dark-sky and municipal compliance
Energy-Efficient Parking Lot Lighting Technologies
| Technology | Primary Function | Efficiency Advantage |
|---|---|---|
| LED Area & Pole Lights | General parking lot and drive lane illumination | High efficacy, uniform distribution |
| Integrated Motion Sensors | Adaptive output based on occupancy | Reduces energy use during low traffic |
| Photocells | Automatic dusk-to-dawn operation | Prevents unnecessary daytime operation |
| Networked Lighting Controls | Centralized monitoring and scheduling | Optimized system-wide performance |
Photometric Performance and Light Quality
| Performance Metric | Typical Commercial Range | Design Impact |
|---|---|---|
| Lumen Output | 10,000 – 50,000+ lumens | Supports wide pole spacing |
| Color Temperature | 4000K – 5000K | Improves visibility and security perception |
| Distribution | Type II, III, IV, V optics | Controls spill light and uniformity |
| CRI | 70–80+ | Adequate color recognition outdoors |
Design Considerations for Energy-Efficient Parking Lots
Proper Fixture Placement and Spacing
- Use photometric layouts to verify uniformity ratios
- Optimize pole height and spacing to minimize fixture count
- Avoid over-lighting low-traffic perimeter zones
Light Trespass and Glare Control
- Specify full cutoff or forward-throw optics
- Shield fixtures near property lines and residential zones
- Use dimming profiles during late-night hours
Maintenance and Monitoring Strategy
- Implement remote monitoring for fault detection
- Schedule routine lens cleaning for maximum output
- Document fixture locations and control zones
Integrated Controls and Automation
- Motion-based dimming for adaptive lighting levels
- Time scheduling to reduce overnight output
- Photocell integration for reliable dusk-to-dawn operation
Related Commercial Exterior Lighting Categories
- LED area lights
- Commercial site lighting
- Wall pack lights
- Canopy lighting
- Commercial lighting systems
When properly specified and controlled, energy-efficient parking lot lighting systems improve safety, reduce operating costs, and support long-term sustainability goals across commercial properties.
Frequently Asked Questions
How do I choose the right lumen package for an energy-efficient parking lot?
Select lumen output based on mounting height, target maintained light levels, and the optic distribution (Type II–V). Higher poles can use higher-output fixtures with wider spacing, but energy efficiency is achieved by meeting uniformity and minimums without excessive average illuminance. Validate with an IES-based photometric layout before locking fixture count.
Which optic distribution should I use: Type II, III, IV, or V?
Match the distribution to the geometry. Type II is commonly used for narrow drive lanes and perimeter roads, Type III for general parking areas and row layouts, Type IV for perimeters and property-line throws, and Type V for more central pole placements where symmetric coverage is needed. Confirm spill and uniformity with the fixture’s IES file.
What pole height is typical for commercial parking lot lighting?
Many commercial lots use poles in the 15–30 foot range, with height selected to balance spacing, glare control, and maintenance access. Lower poles can reduce off-site spill but may require more fixtures; higher poles can increase spacing but must be paired with optics that control glare and backlight near property lines.
How do I reduce glare and light trespass near property lines?
Use full cutoff optics and select distributions that limit backlight and uplight. Place poles and fixtures to keep high-angle light out of adjacent properties, and apply site-side shielding where needed. Late-night dimming schedules are also effective for reducing spill when the lot is low-traffic.
Is 4000K or 5000K better for parking lot safety?
4000K is commonly used for general exterior circulation where visual comfort is a priority. 5000K is often specified for higher-visibility security zones where contrast recognition is emphasized. Keep CCT consistent across the lot to avoid patchy appearance and perceived brightness differences.
What CRI should I specify for outdoor parking areas?
Outdoor parking lots commonly use CRI in the 70–80 range, which is typically adequate for color recognition and general visibility. Higher CRI may be selected for areas where accurate color identification supports security operations, but it should be tied to a defined need.
Do photocells and time scheduling still matter if I have networked controls?
Yes. Photocells provide reliable dusk-to-dawn operation at the fixture or zone level, while scheduling ensures output is reduced during predictable low-traffic periods. Networked controls can manage both functions centrally, but the control intent should still define on/off thresholds and dimming profiles.
When should I use motion sensors in a parking lot?
Motion-based dimming is most effective in low-occupancy areas such as overflow parking, perimeter zones, and after-hours lots. In high-traffic retail lots, sensors may provide limited savings unless paired with dim-to-low settings and correctly defined detection coverage. Confirm sensor mounting height limits and coverage patterns.
How can I avoid over-lighting while still meeting safety expectations?
Design to maintained targets and uniformity rather than relying on “brighter is safer.” Use photometrics to verify minimums in walk paths, entries, and crossings, then apply zoning so high-activity areas run at higher levels while perimeter zones run reduced output during late hours.
What maintenance factors make an LED parking lot system truly lower cost?
Look beyond rated life and confirm driver quality, surge protection, and thermal design. In exterior installations, surge events and environmental exposure are common failure drivers, so appropriate surge protection and environmental sealing are critical. Document fixture locations, aiming, and control zones to reduce troubleshooting time.
Do energy-efficient fixtures qualify for utility rebates?
Many rebate programs require DLC-listed products and may specify minimum efficacy, control capability, or wattage thresholds. Confirm requirements with the local utility program before purchase, and keep cut sheets and DLC/QPL documentation for closeout and incentive processing.
What documentation should be included for a commercial parking lot lighting project?
At minimum: photometric layout, fixture schedule with lumen package/optics/CCT, control zoning narrative, pole and mounting details, and a commissioning plan for schedules and dimming profiles. This reduces change orders and supports consistent performance after installation.
