2×2 LED panel retrofit for grid ceilings, low-profile retrofit panel with diffused optic; 120–277V input, 0–10V dimming, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.

2×2 LED Panel Light Retrofit 15/20/25/30/40W 1950–5000 Lumens 3500K/4000K/5000K/5700K/6500K 0–10V Dimming 120–277V

$44.19 $51.99
Skip to product information
2×2 LED panel retrofit for grid ceilings, low-profile retrofit panel with diffused optic; 120–277V input, 0–10V dimming, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.

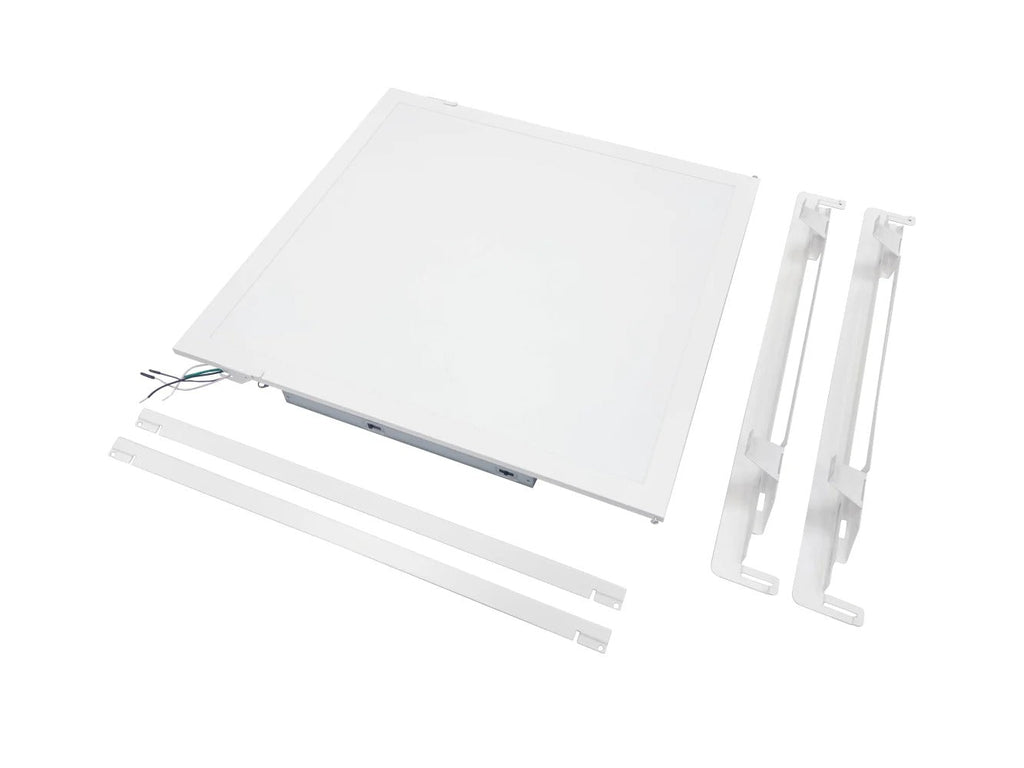

  • 2×2 LED panel retrofit for grid ceilings, low-profile retrofit panel with diffused optic; 120–277V input, 0–10V dimming, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.
  • 2×2 LED flat panel retrofit (installed appearance) showing the completed panel lens and frame seated in a drop ceiling grid; 120–277V input, 0–10V dimming, 15/20/25/30/40W selectable delivering 1,950–5,000 lumens with selectable 3500K/4000K/5000K/5700K/6500K.
  • Tight angled view of the 2x2 LED panel retrofit showing the lens and ceiling-grid clip interface for T-bar installation; 0–10V dimming, 1950–5000 lm, CCT selectable 3500K–6500K, 120–277V.

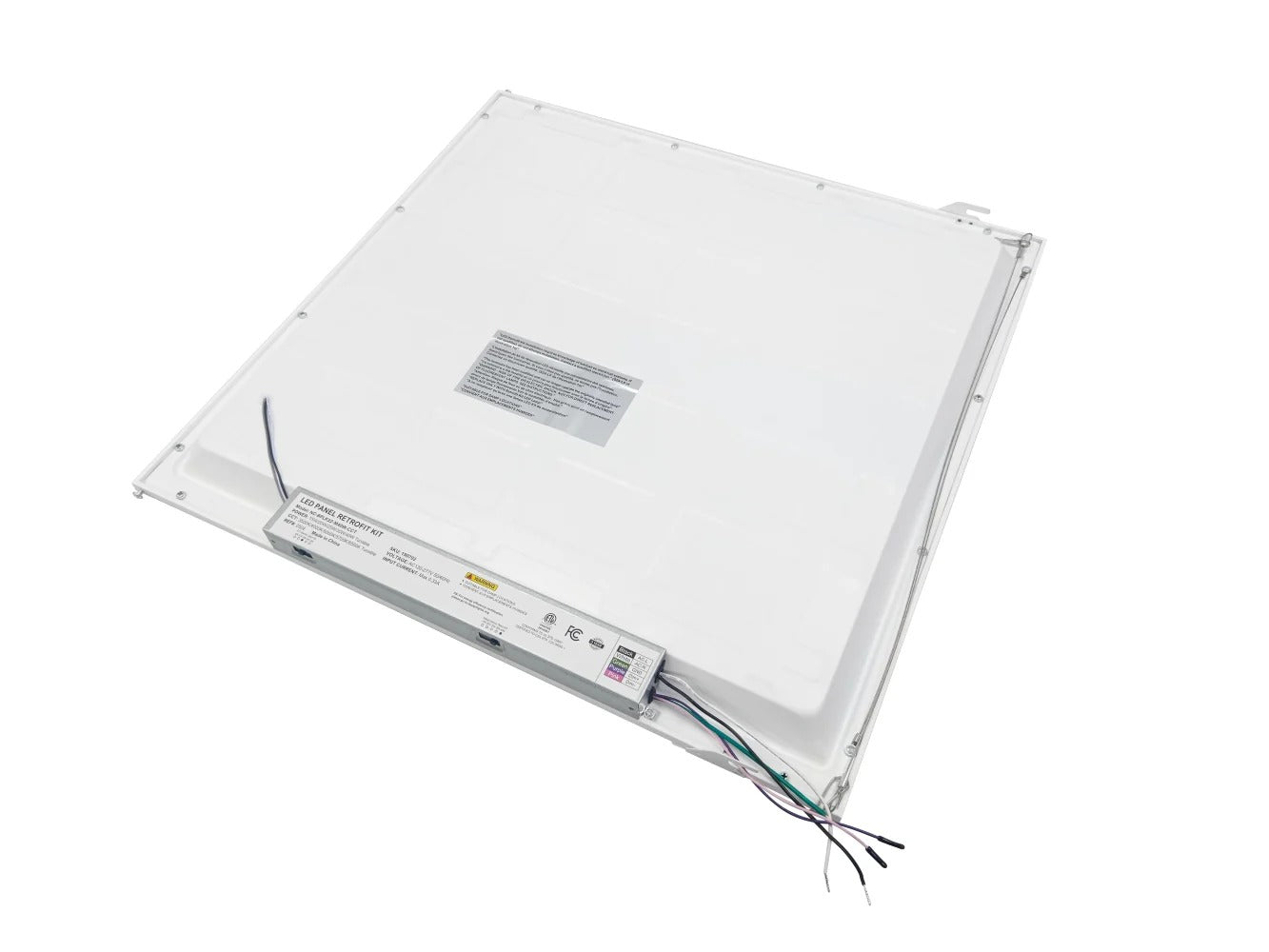

  • Back view of the 2×2 LED panel retrofit showing the safety cable, grid clips, and driver with CCT- and wattage-selectable dip/slide switches; black, white, green, and pink leads exit the end of the driver for field wiring, 15/20/25/30/40W, 1,950–5,000 lm, 3500K/4000K/5000K/5700K/6500K, 0–10V dimming, 120–277V.
  • 2×2 LED panel retrofit for grid ceilings, low-profile retrofit panel with diffused optic; 120–277V input, 0–10V dimming, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.
  • 2×2 LED flat panel retrofit (installed appearance) showing the completed panel lens and frame seated in a drop ceiling grid; 120–277V input, 0–10V dimming, 15/20/25/30/40W selectable delivering 1,950–5,000 lumens with selectable 3500K/4000K/5000K/5700K/6500K.
  • Tight angled view of the 2x2 LED panel retrofit showing the lens and ceiling-grid clip interface for T-bar installation; 0–10V dimming, 1950–5000 lm, CCT selectable 3500K–6500K, 120–277V.
  • Back view of the 2×2 LED panel retrofit showing the safety cable, grid clips, and driver with CCT- and wattage-selectable dip/slide switches; black, white, green, and pink leads exit the end of the driver for field wiring, 15/20/25/30/40W, 1,950–5,000 lm, 3500K/4000K/5000K/5700K/6500K, 0–10V dimming, 120–277V.
  • 2×2 LED panel retrofit for grid ceilings, low-profile retrofit panel with diffused optic; 120–277V input, 0–10V dimming, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.
  • 2×2 LED flat panel retrofit (installed appearance) showing the completed panel lens and frame seated in a drop ceiling grid; 120–277V input, 0–10V dimming, 15/20/25/30/40W selectable delivering 1,950–5,000 lumens with selectable 3500K/4000K/5000K/5700K/6500K.
  • Tight angled view of the 2x2 LED panel retrofit showing the lens and ceiling-grid clip interface for T-bar installation; 0–10V dimming, 1950–5000 lm, CCT selectable 3500K–6500K, 120–277V.
  • Back view of the 2×2 LED panel retrofit showing the safety cable, grid clips, and driver with CCT- and wattage-selectable dip/slide switches; black, white, green, and pink leads exit the end of the driver for field wiring, 15/20/25/30/40W, 1,950–5,000 lm, 3500K/4000K/5000K/5700K/6500K, 0–10V dimming, 120–277V.
  • 2×2 LED panel retrofit for grid ceilings, low-profile retrofit panel with diffused optic; 120–277V input, 0–10V dimming, 15/20/25/30/40W options (1,950–5,000 lumens) with selectable 3500K/4000K/5000K/5700K/6500K.
  • 2×2 LED flat panel retrofit (installed appearance) showing the completed panel lens and frame seated in a drop ceiling grid; 120–277V input, 0–10V dimming, 15/20/25/30/40W selectable delivering 1,950–5,000 lumens with selectable 3500K/4000K/5000K/5700K/6500K.
  • Tight angled view of the 2x2 LED panel retrofit showing the lens and ceiling-grid clip interface for T-bar installation; 0–10V dimming, 1950–5000 lm, CCT selectable 3500K–6500K, 120–277V.
  • Back view of the 2×2 LED panel retrofit showing the safety cable, grid clips, and driver with CCT- and wattage-selectable dip/slide switches; black, white, green, and pink leads exit the end of the driver for field wiring, 15/20/25/30/40W, 1,950–5,000 lm, 3500K/4000K/5000K/5700K/6500K, 0–10V dimming, 120–277V.
2×2 LED Panel Light Retrofit 15/20/25/30/40W 1950–5000 Lumens 3500K/4000K/5000K/5700K/6500K 0–10V Dimming 120–277V

2×2 LED Panel Light Retrofit 15/20/25/30/40W 1950–5000 Lumens 3500K/4000K/5000K/5700K/6500K 0–10V Dimming 120–277V

Brand: NCLTG
SKU: NC-BPLK22-M40W-CCT
Product Type: LED Panel Light

Existing ceiling housings that require flexible output without integrated controls can utilize this 2×2 panel retrofit to standardize performance across varied spaces. It supports selectable 15W, 20W, 25W, 30W, or 40W output delivering 1,950 to 5,000 lumens to match room size and layout. Five CCT options from 3500K through 6500K, along with 0–10V dimming and 120–277V operation, support consistent retrofit performance in commercial interiors.
$44.19 $51.99
Secure Checkout

Payment information is processed through encrypted, PCI-compliant payment gateways. Card details are never stored on our servers.
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see Shipping Reliability & Fulfillment.
Returns & Restocking

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see Returns & Restocking.

Specifications

BrandNCLTG
Manufacturer Part NumberNC-BPLK22-M40W-CCT
DLC Product IDS-JFV025
Wattage15W, 20W, 25W, 30W, 40W
Voltage120–277V
Lumens1,950, 2,600, 3,250, 3,810, 5,000
Efficacy125–130 lm/W
CCT3500K, 4000K, 5000K, 5700K, 6500K
Dimming0–10V
Special FeaturesWattage and CCT Selectable
CertificationscETLus Listed, RoHS Compliant, DLC Premium Listed
Dimensions21.41"L x 22.08"W x 1.47"H
Warranty5-Year Limited Warranty
