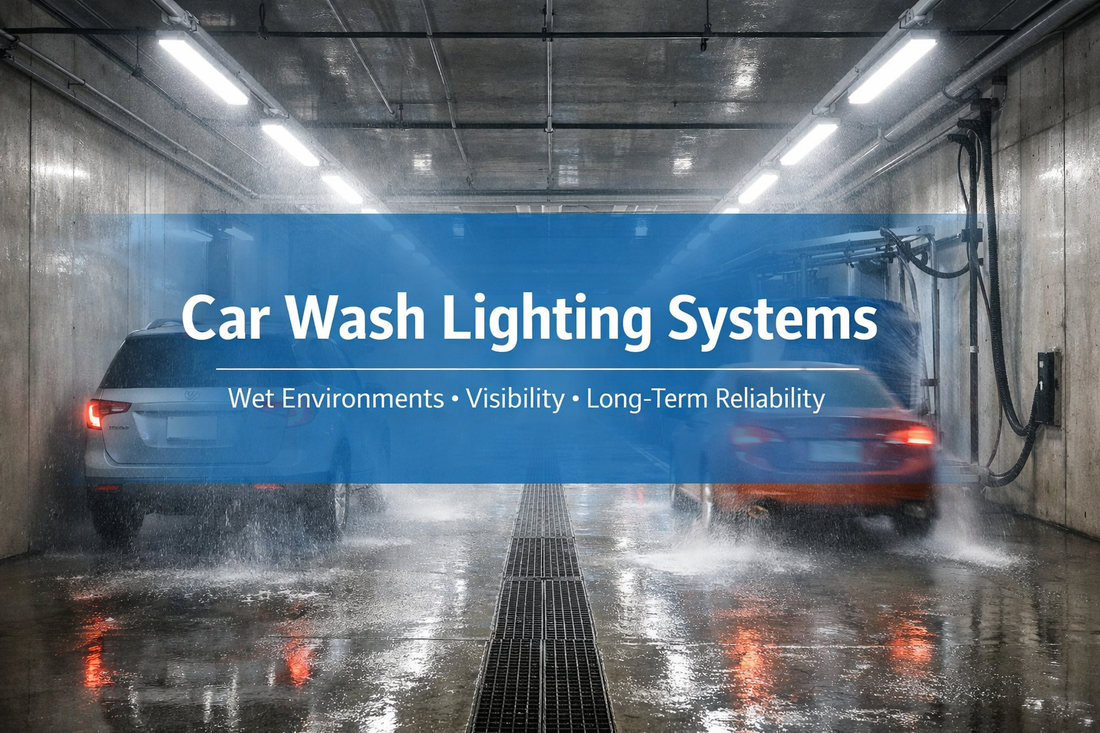

Car Wash Lighting Systems: Designing for Wet Environments, Visibility, and Long-Term Reliability

Car Wash Lighting Systems for Wet Environments, Operational Efficiency, and Long-Term Reliability

Car wash facilities operate in one of the most demanding lighting environments in commercial applications. Continuous exposure to water, chemicals, temperature variation, and reflective surfaces places unique stress on lighting systems while simultaneously increasing the need for consistent, high-quality illumination.

Lighting in these environments is not a secondary consideration—it is a core operational system that directly affects safety, inspection accuracy, throughput efficiency, and customer perception. Improper lighting design results in glare, shadowing, inconsistent wash quality, and increased maintenance frequency.

Effective car wash lighting systems are engineered to maintain visibility under wet conditions, support inspection tasks across varying surfaces, and operate reliably under continuous exposure to moisture and chemical agents.

Why Car Wash Lighting Requires Specialized Design

Unlike standard commercial interiors, car wash environments combine moisture, reflectivity, and continuous operation. These factors create conditions where traditional lighting systems fail prematurely or perform inconsistently.

• Wet surfaces amplify glare and reduce contrast if light is not properly diffused
• Water droplets and mist scatter light, affecting perceived brightness
• Chemical exposure accelerates material degradation in low-quality fixtures
• Continuous operation increases thermal stress on drivers and LEDs

Lighting must be specified to perform under these compounded environmental and optical challenges.

Fixture Types for Car Wash and Wash Bay Applications

Fixture Type	Application Area	Functional Role
Vapor Tight Fixtures	Wash tunnels, bays	Primary illumination with sealed protection
Linear Fixtures	Equipment zones, sidewalls	Uniform side illumination and reduced shadowing
Canopy Fixtures	Entry and exit zones	Wide-area coverage for vehicle movement
Inspection and Task Lighting	Detailing stations	High-contrast visibility for surface evaluation

Fixture selection should be based on environmental exposure level and task requirements rather than standard commercial defaults.

Performance Requirements for Wet and Reflective Environments

Lighting performance in car wash facilities is governed by how well the system maintains visibility under reflective and moisture-heavy conditions.

Metric	Recommended Range	Impact
Lumen Output	4,000 – 12,000+ lumens	Maintains visibility through mist and reflections
Color Temperature	4000K – 5000K	Enhances contrast for inspection tasks
CRI	80+	Improves detection of surface defects
Ingress Protection	IP65 or higher	Ensures resistance to water and contaminants

Higher light levels alone do not solve visibility issues—distribution, glare control, and optical clarity must be balanced.

Lighting Controls and Operational Efficiency

Control strategies in car wash environments focus on reducing energy consumption while maintaining safe operating conditions.

• Occupancy-based activation limits unnecessary runtime
• Zoning allows independent control of wash bays, detailing areas, and access points
• Dimming strategies reduce output during low-traffic periods
• Automated systems support consistent lighting levels without manual adjustment

Controls must be compatible with high-moisture environments and continuous cycling.

Material Durability and Environmental Resistance

Car wash lighting systems are subject to continuous environmental stress that accelerates failure in standard fixtures.

• Sealed housings prevent water intrusion and internal corrosion
• Corrosion-resistant materials withstand chemical exposure
• Impact-resistant lenses protect against vibration and equipment movement
• Thermal stability ensures consistent output over long operating cycles

Material selection directly influences service life and maintenance frequency.

Facility-Wide Lighting Integration Strategy

Lighting systems in car wash facilities must operate as part of a unified lighting strategy across the entire property.

• Entry and exit zones require transition lighting for driver visibility
• Wash bays require high-output, moisture-resistant illumination
• Detailing areas require higher color accuracy and focused lighting
• Support areas require consistent ambient lighting for maintenance tasks

When lighting systems are designed holistically, facilities achieve consistent visibility, reduced operational costs, and improved long-term performance.

Properly specified car wash lighting systems improve safety, support efficient workflows, and maintain consistent visual conditions across all operational zones, even under continuous exposure to moisture and environmental stress.
