Understanding the NEC Code: Outdoor Buried Electrical Wiring 101

The Critical Role of NEC Compliance in Commercial Facilities

In commercial and industrial electrical design, adherence to the National Electrical Code (NEC) for underground wiring is not just a matter of safety, but a legal requirement for facility commissioning. Outdoor buried wiring provides the power for perimeter security, LED shop annexes, and parking lot illumination. Because these systems are exposed to soil moisture, chemical corrosion, and heavy vehicle traffic, the NEC provides specific mandates to prevent catastrophic system failure.

Primary NEC Requirements for Underground Wiring

The NEC regulates underground installations primarily through Article 300. Commercial projects must account for soil type, moisture presence, and the potential for physical impact from heavy machinery.

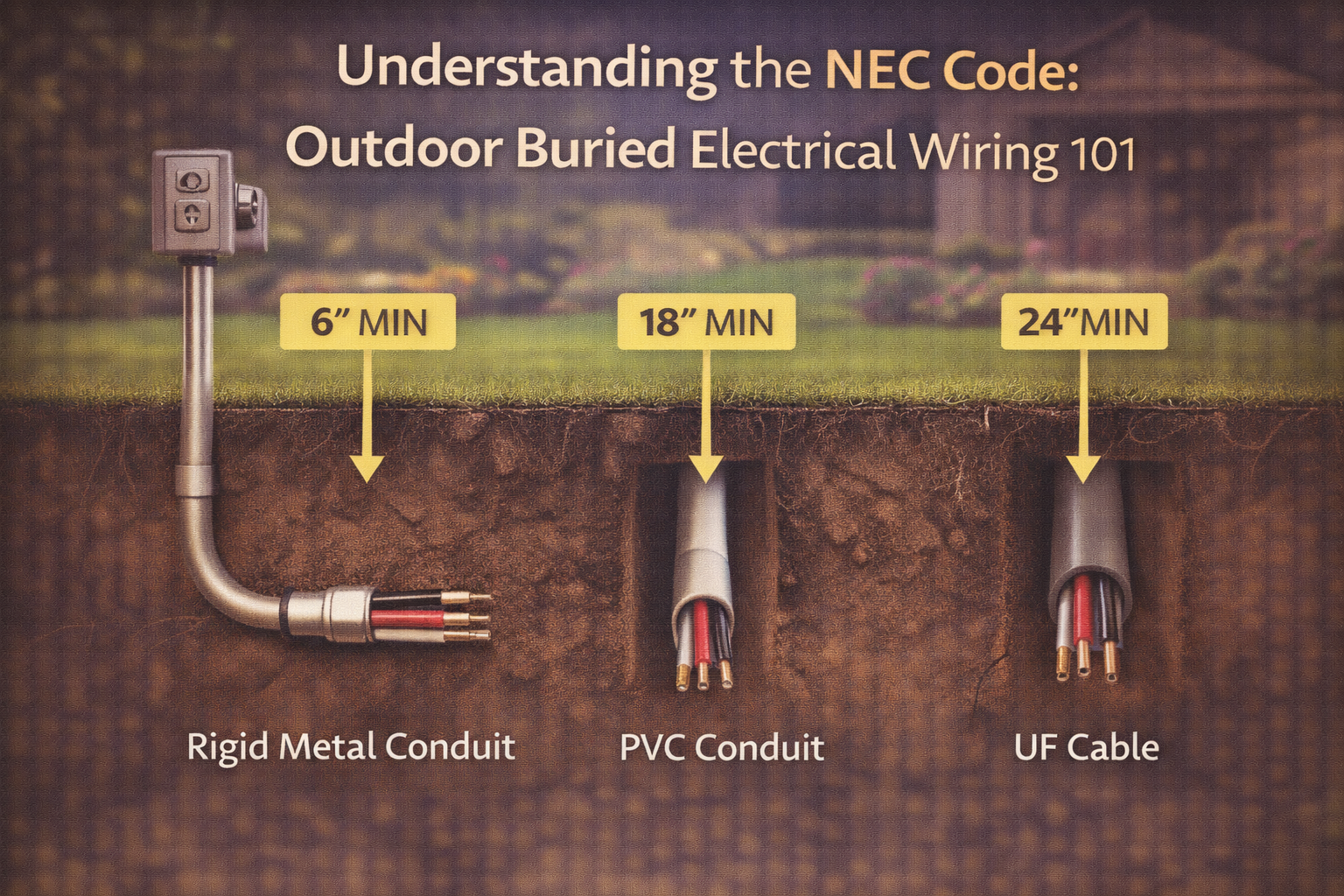

Commercial Burial Depths (NEC Table 300.5)

The required depth of burial is determined by the wiring method used and the environment above the ground. Common commercial standards include:

• Rigid Metal Conduit (RMC): Must be buried at least 6 inches deep. This is often the preferred choice for industrial shops where shallow trenching is required due to slab thickness.
• Schedule 40 PVC Conduit: Requires a minimum depth of 18 inches. In commercial areas subject to heavy vehicle traffic (such as loading docks), this must be increased to 24 inches.
• Direct Burial Cable (Type UF): While less common in commercial settings, if utilized, it must be buried at least 24 inches deep.

Wiring Methods and Conduit Selection

For a durable commercial installation, the wiring method must match the environmental stressors:

• Rigid Metal Conduit (RMC) & Intermediate Metal Conduit (IMC): These provide the highest level of physical protection. NEC 344 requires these to be galvanized or coated to prevent corrosion when in direct contact with soil.
• Liquidtight Flexible Nonmetallic Conduit (LFNC): Often used for the final connection to outdoor equipment like HVAC units or gate motors, providing flexibility while maintaining a moisture-proof seal.
• PVC Schedule 80: Required in areas where the conduit is "subject to physical damage," such as where the conduit emerges from the ground along the side of a warehouse or shop.

Grounding and Bonding Requirements

Proper grounding is a non-negotiable safety standard for outdoor commercial circuits. NEC Article 250 requires that all metallic raceways and equipment enclosures be bonded to the building’s grounding electrode system. Underground runs typically require an insulated green equipment grounding conductor to be pulled within the conduit to ensure a low-impedance path to the breaker panel, preventing energized enclosures during a fault.

Equipment Installation and Environmental Ratings

All outdoor components, including switches, outlets, and LED drivers, must be specifically rated for "Wet Locations." In a commercial shop or garage annex, outlets must be GFCI-protected. Furthermore, outdoor receptacles must be installed in "extra-duty" weatherproof covers (often called "while-in-use" covers) to maintain the NEMA rating even when a cord is plugged into the device.

Commercial Compliance and Inspection

To ensure your facility meets code and passes inspection, follow these professional protocols:

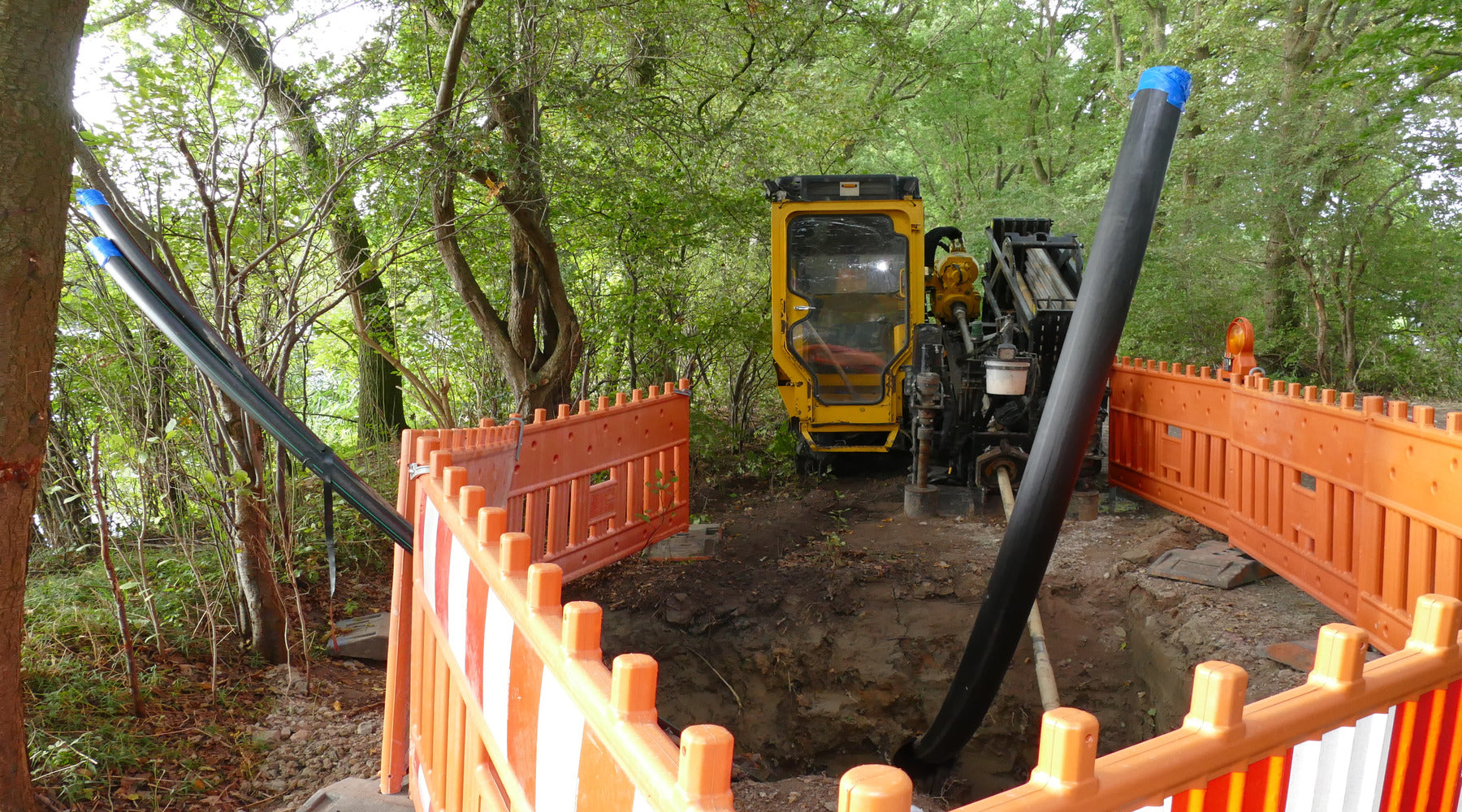

• Pre-Backfill Inspection: Most jurisdictions require an electrical inspector to verify the conduit type and trench depth before the trench is filled.
• Warning Tape: For high-voltage commercial lines, the NEC requires a warning tape to be buried at least 12 inches above the conduit to alert future excavators.
• Conduit Sealing: NEC 300.5(G) requires that the ends of conduits leading into a building be sealed with an approved compound to prevent moisture or gases from entering the interior electrical panels.

Conclusion

Compliance with the NEC for outdoor buried wiring is essential for the longevity and safety of commercial electrical infrastructure. By selecting the correct conduit for the environment and adhering to strict burial depths, facility managers can ensure their outdoor lighting and power systems remain operational for decades. For more information on outdoor lighting safety, consult our Outdoor Lights FAQs.
