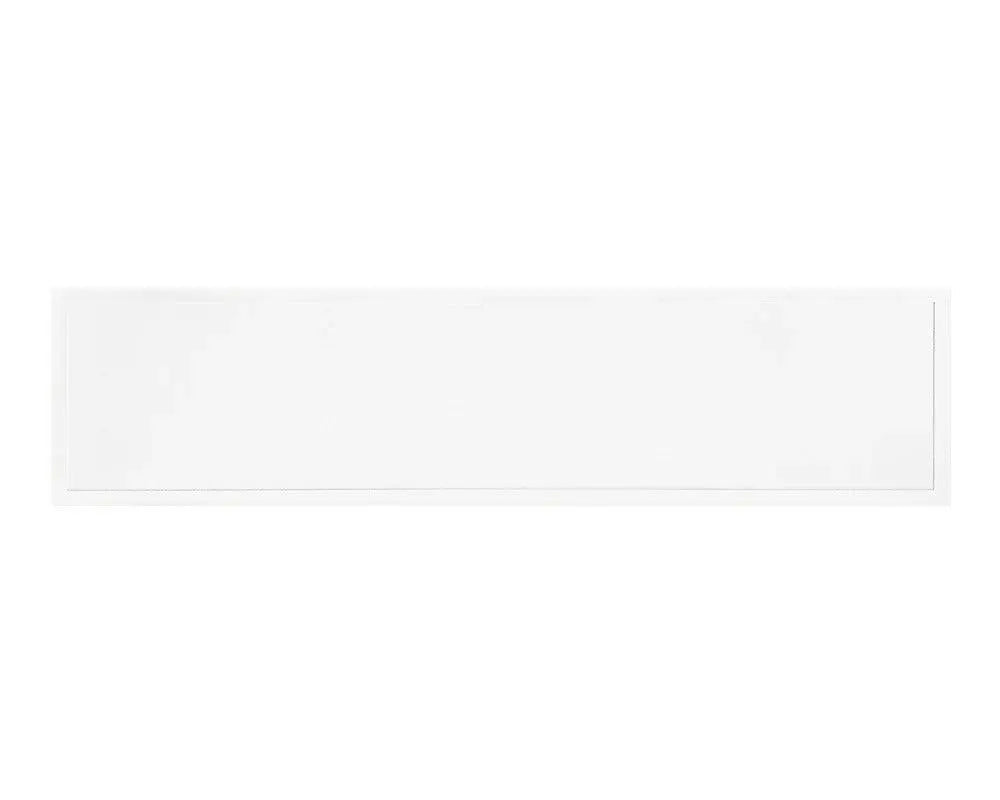

  • SkyLine Series 2x4 LED flat panel light commercial recessed ceiling fixture designed for suspended T-grid systems with integrated driver assembly

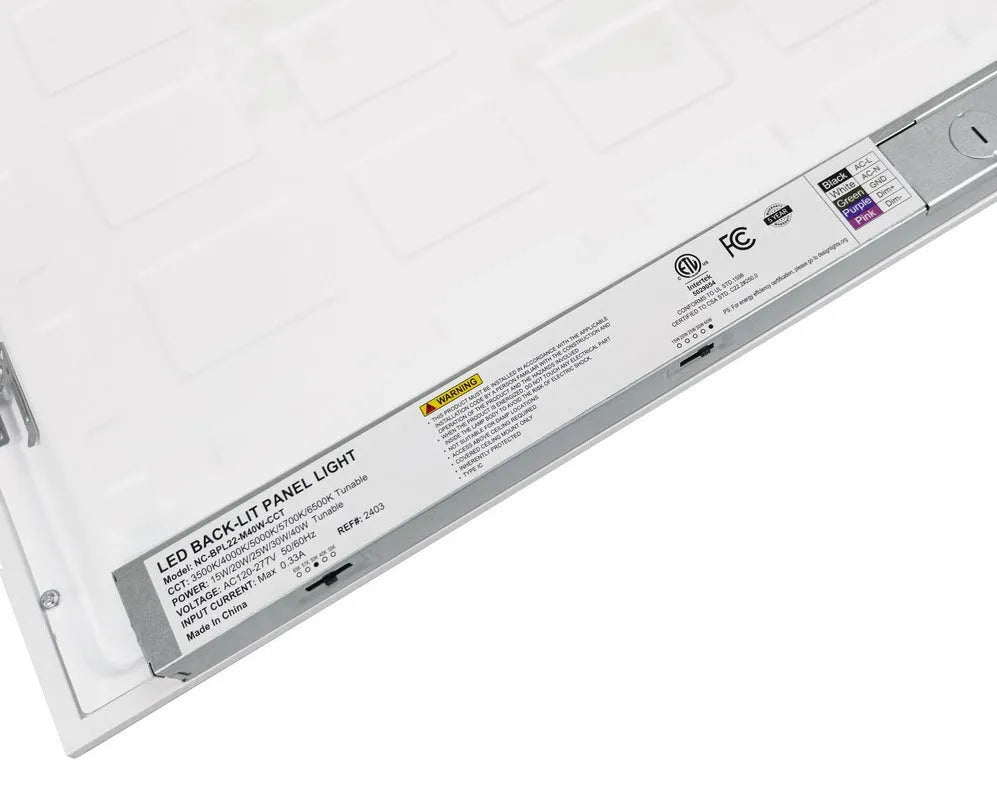

  • Close-up angled view of SkyLine Series LED flat panel rear driver and electrical housing mounted along panel back edge

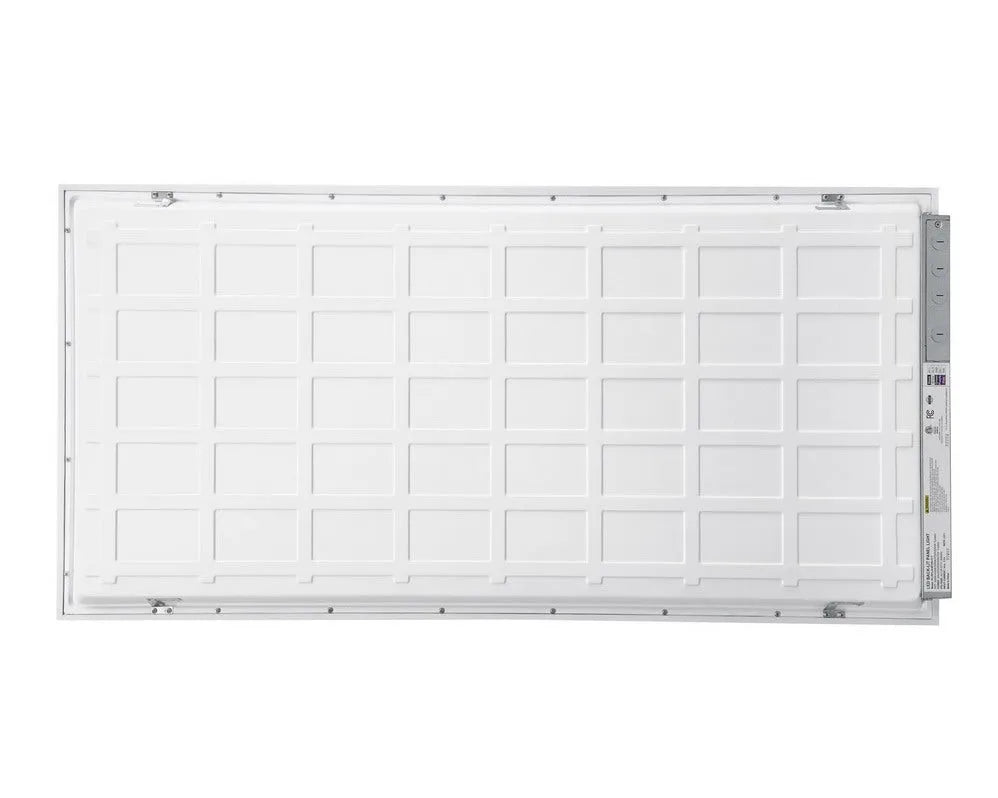

  • SkyLine Series 2x4 LED flat panel rear view showing integrated LED driver and electrical junction box for commercial ceiling installation

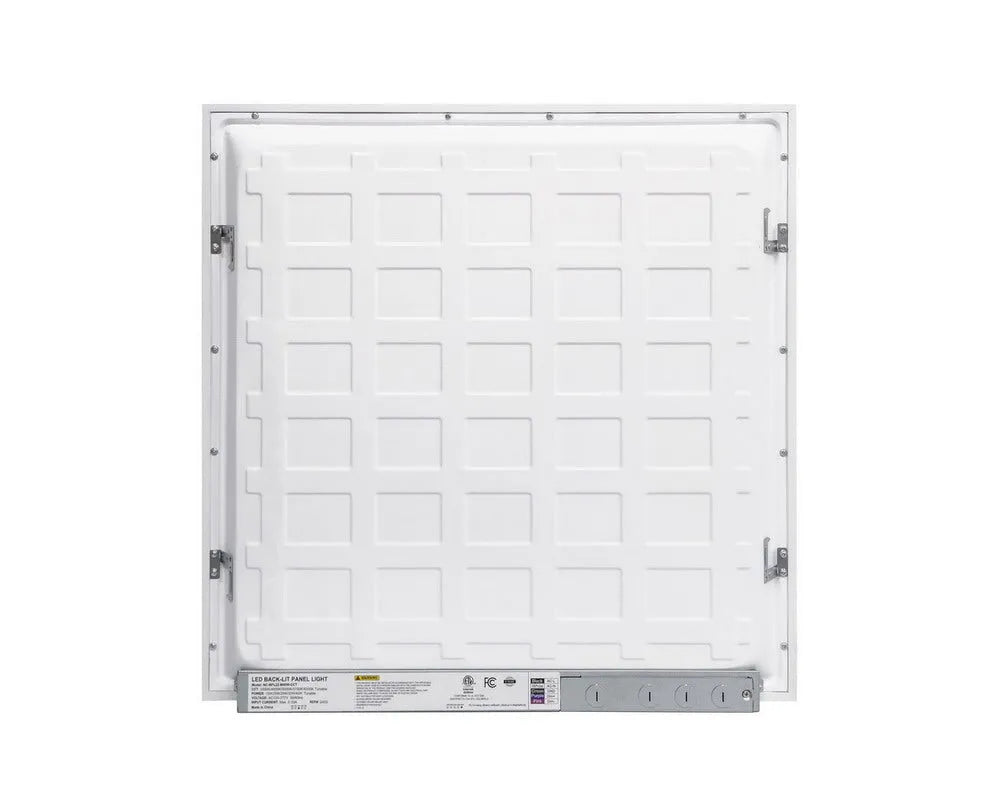

  • SkyLine Series 2x2 LED flat panel back view displaying driver housing and electrical connection box

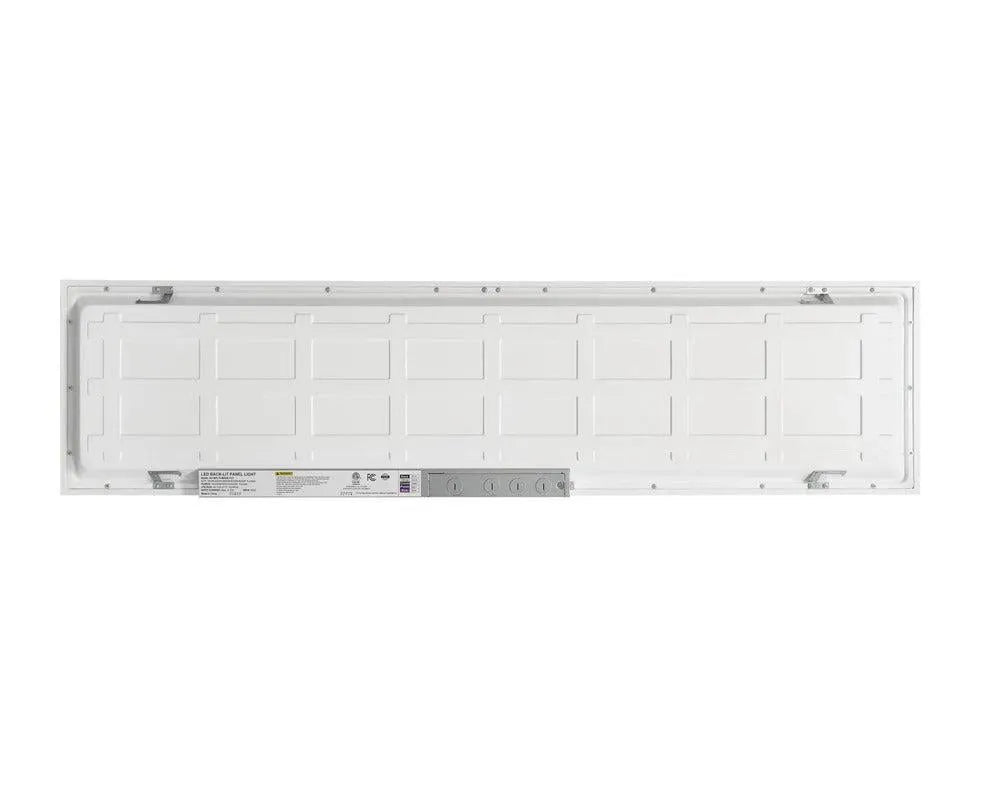

  • SkyLine Series 1x4 LED flat panel rear assembly showing integrated driver and electrical enclosure

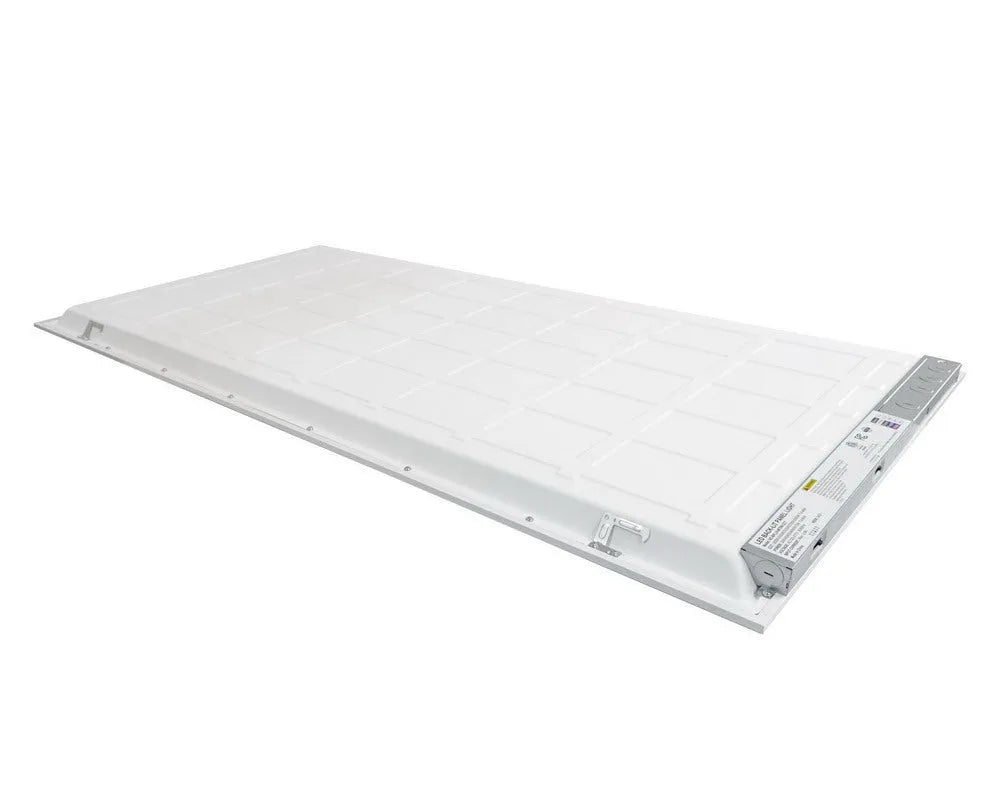

  • Angled rear perspective of SkyLine Series 2x4 LED flat panel showing driver housing and junction box mounting position

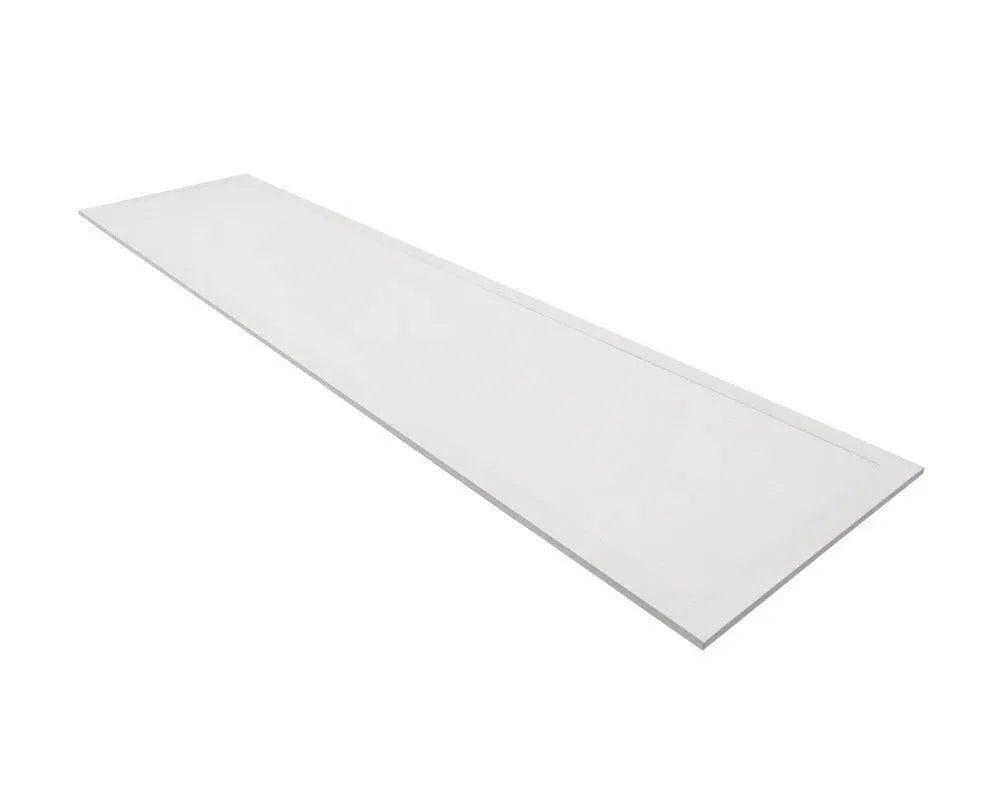

  • Angled view of SkyLine Series 1x4 LED flat panel diffusion lens showing low-profile recessed commercial ceiling design
  • SkyLine Series 2x4 LED flat panel light commercial recessed ceiling fixture designed for suspended T-grid systems with integrated driver assembly
  • Close-up angled view of SkyLine Series LED flat panel rear driver and electrical housing mounted along panel back edge
  • SkyLine Series 2x4 LED flat panel rear view showing integrated LED driver and electrical junction box for commercial ceiling installation
  • SkyLine Series 2x2 LED flat panel back view displaying driver housing and electrical connection box
  • SkyLine Series 1x4 LED flat panel rear assembly showing integrated driver and electrical enclosure
  • Angled rear perspective of SkyLine Series 2x4 LED flat panel showing driver housing and junction box mounting position
  • Angled view of SkyLine Series 1x4 LED flat panel diffusion lens showing low-profile recessed commercial ceiling design
SkyLine Series LED Panel Light

SkyLine Series LED Panel Light

Brand: NCLTG
SKU: NC-BPL14-M40W-CCT
Product Type: LED Panel Light
$32.29 $37.99
Secure Checkout

Payment information is processed through encrypted, PCI-compliant payment gateways. Card details are never stored on our servers.
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Shipping information

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see our shipping policy.
Returns & Restocking

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see our return and refund policy.

Product Overview

The SkyLine Series LED Flat Panel is a recessed lay-in luminaire family for suspended T-grid ceilings, specified where fixture geometry, electrical compatibility, and selectable performance need to remain consistent across multiple ceiling module sizes. The series covers 1×4, 2×2, and 2×4 openings and supports field-selectable wattage and selectable CCT to align lumen output and color appearance with room function and layout density across offices, classrooms, corridors, and support areas commonly addressed by LED panel lights.

Configuration options are managed at the fixture level: select models include an integrated sensor receptacle for controls-ready deployment, and select models include a factory-integrated 90-minute emergency battery system for designated egress and life-safety locations. This approach supports one panel platform across standard lighting zones, sensor-controlled zones, and emergency-designated zones while maintaining consistent installation and appearance within broader commercial lighting specifications.

Fixture Specifications

Voltage 120–277V
CCT 3500K, 4000K, 5000K, 5700K, 6500K
Dimming 0–10V
Special Features Wattage and CCT Selectable
Certifications cETLus Listed, RoHS Compliant, DLC Premium Listed
Warranty 5-Year Limited Warranty

Performance & Physical Configurations

Size Sensor Port Emergency Option MPN Selectable Wattage Lumen Output Dimensions DLC Product ID
1×4 Flat Panel No No Emergency Backup NC-BPL14-M40W-CCT 15W / 20W / 25W / 30W / 40W 1,950–5,000 lm 47.76" L × 11.93" W × 1.38" H S-FRVCC0
2×2 Flat Panel No No Emergency Backup NC-BPL22-M40W-CCT 15W / 20W / 25W / 30W / 40W 1,950–5,000 lm 23.74" L × 23.74" W × 1.38" H S-KK2HX9
2×4 Flat Panel No No Emergency Backup NC-BPL24-M72W-CCT 30W / 40W / 50W / 60W / 72W 3,900–9,000 lm 47.72" L × 23.74" W × 1.38" H S-Q25QKF
2×2 Flat Panel Yes No Emergency Backup NC-BPL22-M40W-CCT-S 15W / 20W / 25W / 30W / 40W 1,950–5,000 lm 23.74" L × 23.74" W × 1.38" H S-KK2HX9
2×2 Flat Panel Yes 90-Minute Emergency Backup NC-BPL22-M40W-CCT-S-EM 15W / 20W / 25W / 30W / 40W 1,950–5,000 lm 23.74" L × 23.74" W × 1.38" H S-KK2HX9
2×2 Flat Panel No 90-Minute Emergency Backup NC-BPL22-M40W-CCT-EM 15W / 20W / 25W / 30W / 40W 1,950–5,000 lm 23.74" L × 23.74" W × 1.38" H S-KK2HX9
2×4 Flat Panel Yes No Emergency Backup NC-BPL24-M72W-CCT-S 30W / 40W / 50W / 60W / 72W 3,900–9,000 lm 47.72" L × 23.74" W × 1.38" H S-Q25QKF
2×4 Flat Panel No 90-Minute Emergency Backup NC-BPL24-M72W-CCT-EM 30W / 40W / 50W / 60W / 72W 3,900–9,000 lm 47.72" L × 23.74" W × 1.38" H S-Q25QKF
2×4 Flat Panel Yes 90-Minute Emergency Backup NC-BPL24-M72W-CCT-S-EM 30W / 40W / 50W / 60W / 72W 3,900–9,000 lm 47.72" L × 23.74" W × 1.38" H S-Q25QKF
