RecessEdge Series LED Commercial Downlight

4-Inch / 6–16W (600–1515 lm) / No Emergency Backup

$22.94 $26.99

RecessEdge Series LED Commercial Downlight

Brand: NCLTG

SKU: NC-CDL4-16W-5CW

Product Type: LED Commercial Downlight

$22.94 $26.99

Aperture Size

Output Range

Configuration

Secure Checkout

Payment information is processed through encrypted, PCI-compliant payment gateways. Card details are never stored on our servers.

Shipping is calculated at checkout based on product type, destination, and delivery method (parcel or freight). For lead times, tracking, freight delivery, and inspection requirements, see our shipping policy.

Returns and restocking are handled through an authorization and routing process based on product type and manufacturer policy. Some returns may be subject to a manufacturer-determined restocking fee. For eligibility, steps, and correction handling, see our return and refund policy.

Product Overview

The RecessEdge Series LED Commercial Downlight is a recessed architectural luminaire platform developed for commercial interiors requiring standardized aperture sizing, field-adjustable output, and optional emergency illumination within a unified fixture family. The series supports 4-inch through 10-inch ceiling openings, allowing consistent specification across offices, healthcare facilities, educational environments, and public buildings while maintaining uniform visual appearance commonly associated with LED recessed lighting systems.

Selectable wattage configurations allow delivered lumen output to be aligned with ceiling height, spacing criteria, and task illumination targets without changing fixture type or trim geometry. Wide input voltage compatibility and integrated dimming capability support deployment across new construction and retrofit projects operating on standard commercial electrical systems used throughout modern commercial lighting installations.

Select models incorporate a factory-integrated 90-minute emergency battery system intended for egress paths and designated life-safety zones, enabling continuity between general illumination and emergency lighting requirements while minimizing the need for separate emergency fixtures. This approach supports simplified layout coordination across normal and emergency circuits within commercial lighting designs.

Fixture Specifications

Voltage	120–277V
CCT	2700K, 3000K, 3500K, 4000K, 5000K
Dimming	0–10V

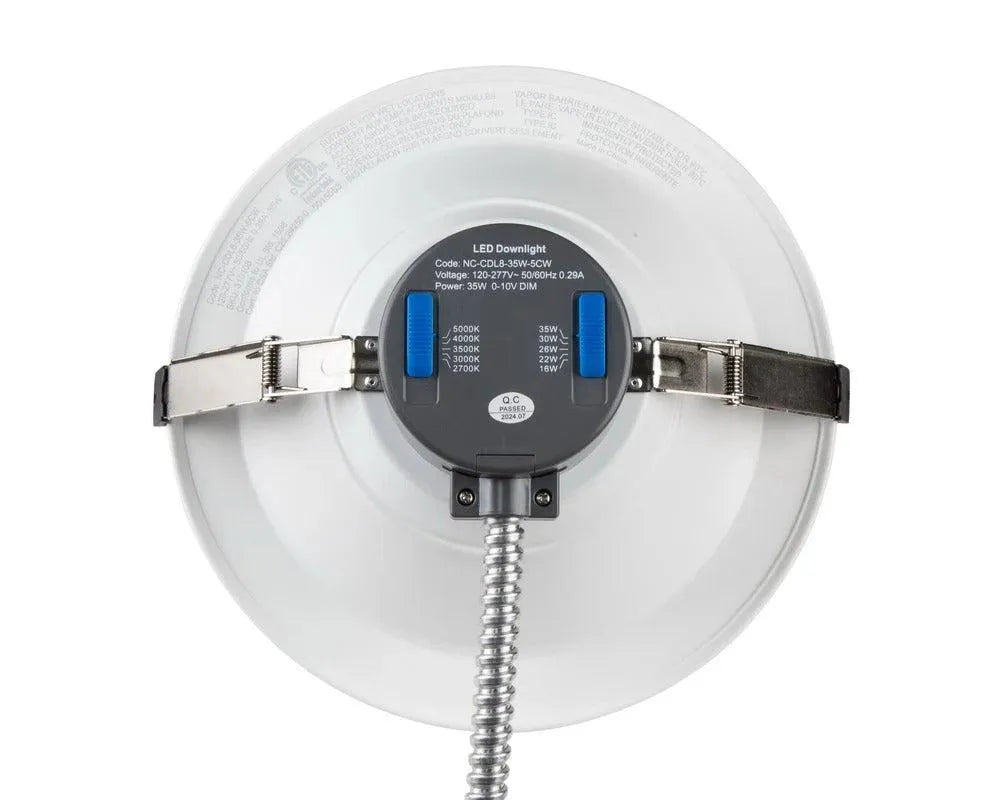

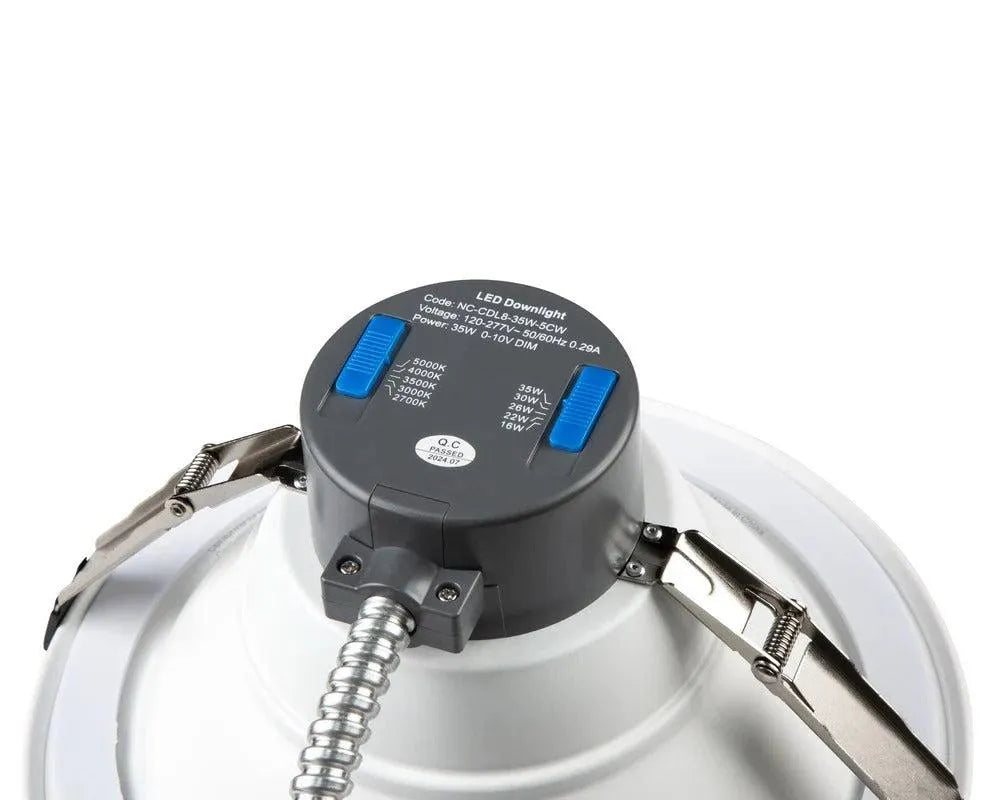

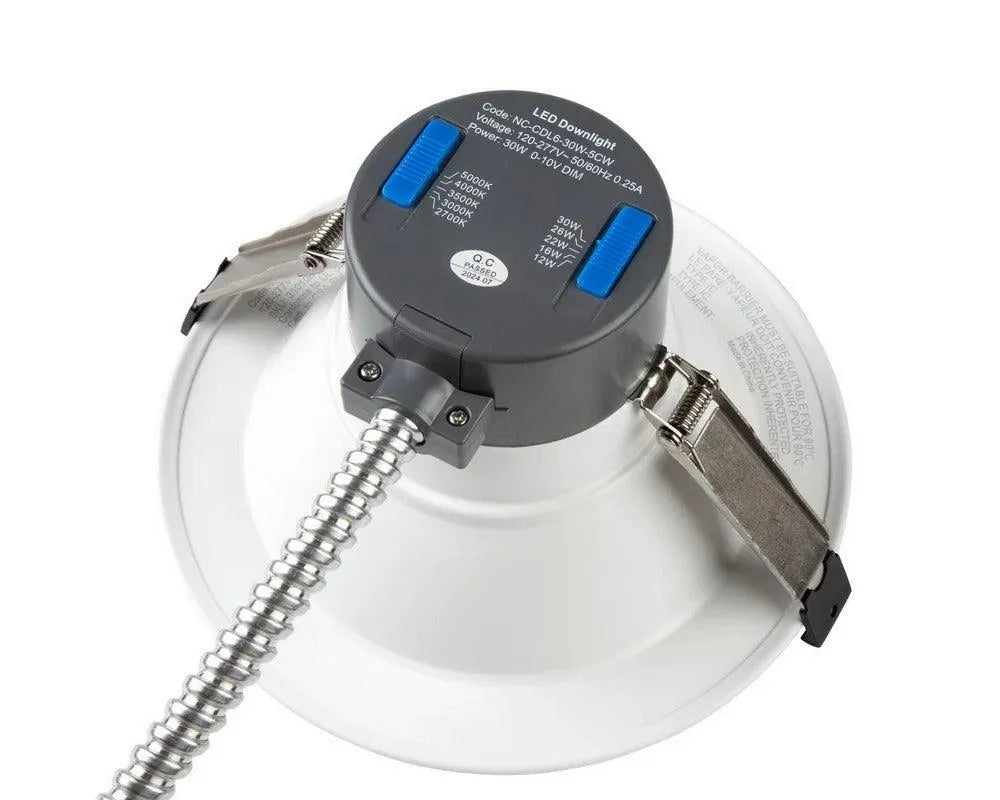

Special Features	Field Selectable Wattage and CCT
Certifications	cETLus Listed
Warranty	5-Year Limited Warranty

Performance & Physical Configurations

Aperture	Emergency Option	MPN	Selectable Wattage	Lumen Output	Dimensions
4–Inch	Standard	NC-CDL4-16W-5CW	6–16W	600–1,515 lm	6"D × 4.1"H
6–Inch	No Emergency Backup	NC-CDL6-30W-5CW	12–30W	1,440–3,600 lm	8.3"D × 4.8"H
6–Inch	90-Minute Emergency	NC-CDL6-30W-5CW-EM	12–30W	1,440–3,600 lm	8.3"D × 4.8"H
8–Inch	No Emergency Backup	NC-CDL8-35W-5CW	16–35W	1,920–4,200 lm	10.3"D × 5.3"H
8–Inch	90-Minute Emergency	NC-CDL8-35W-5CW-EM	16–35W	1,920–4,200 lm	10.3"D × 5.3"H
10–Inch	No Emergency Backup	NC-CDL10-40W-5CW	22–40W	2,640–4,800 lm	11.6"D × 5.9"H
