Product Overview

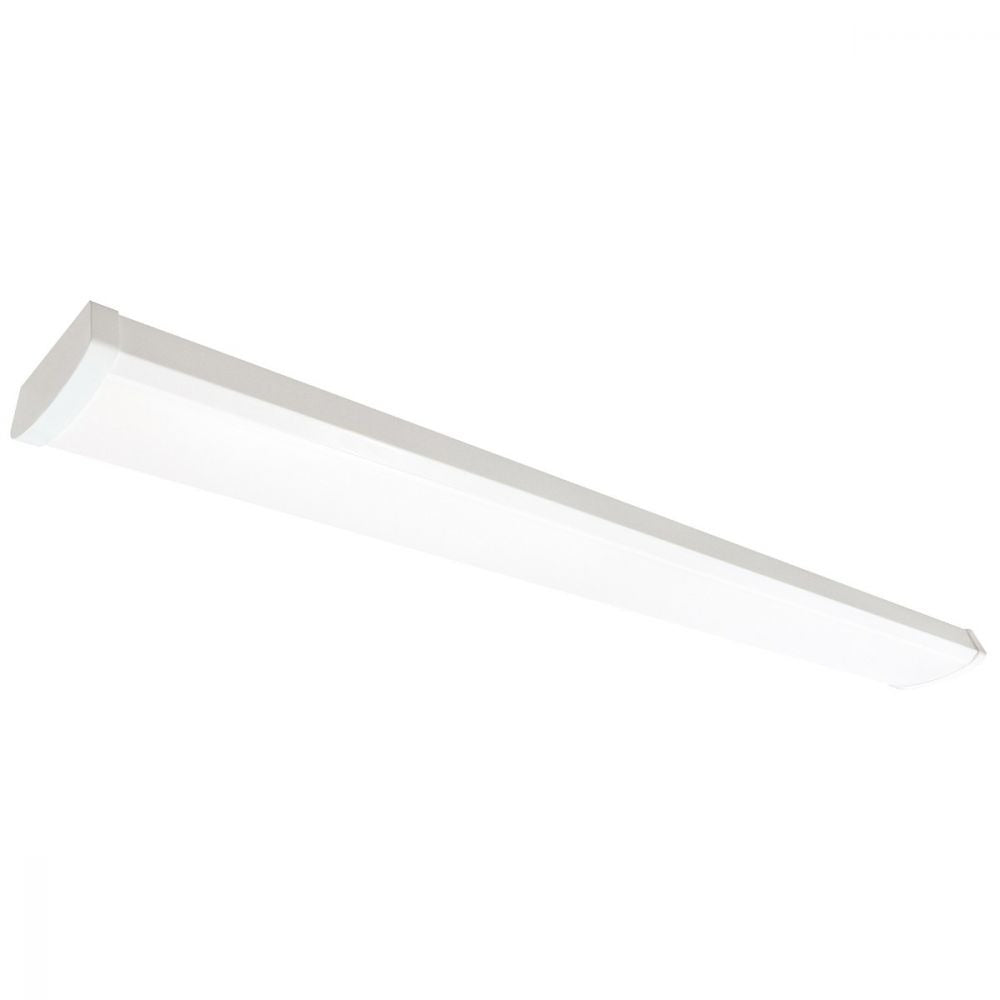

The TRC Selectable Surface Wraparound is a low-profile linear luminaire designed for commercial ceiling applications requiring wide light distribution, surface-mounted installation, and consistent illumination across functional interior spaces. Engineered as part of the LED Wraparound Lights category, this fixture provides an efficient alternative to traditional fluorescent strip and wrap fixtures.
The wraparound design incorporates a frosted diffuser and enclosed housing structure to deliver broad, uniform light distribution across the task plane. This configuration reduces glare while maintaining consistent horizontal illumination, making it suitable for corridors, hallways, utility areas, and general-purpose commercial spaces.
Selectable output configurations allow lumen output to be adjusted between multiple wattage levels, enabling alignment with mounting height, spacing, and application requirements. Field-selectable CCT options (3500K, 4000K, 5000K) support consistent color performance across different environments.
The system operates on standard 120–277V electrical systems and supports optional 0–10V dimming for controlled light output.
With efficacy up to 123 lumens per watt and a durable metal housing with decorative end caps, the TRC is designed for long-term operation in commercial environments. As part of a broader commercial lighting system, it provides a practical solution for replacing fluorescent wraparound fixtures with LED technology.
Fixture Specifications
- Voltage: 120–277V
- CCT: 3500K, 4000K, 5000K
- CRI: 80
- Dimming: Optional 0–10V
- Construction: Metal Housing with Decorative End Caps
- Lens: Frosted Diffuser
- Mounting: Surface Mount
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Efficacy: Up to 123 lm/W
- Rated Life: L70 (based on system design)
- Certifications: UL Listed (Damp Location), DLC Standard 5.1
- Warranty: 5-Year Limited Warranty
Performance & Configurations
4 ft Configuration
- Lumen Output: 3,950 / 4,800 / 5,600 lumens
- Wattage: 32W / 40W / 48W
- Mounting Height: 8–12 ft (typical applications)
- Application Use: Corridors, hallways, kitchens, utility areas, and commercial interiors
Optical and Distribution Characteristics
The frosted diffuser provides wide light distribution across the fixture length, producing uniform illumination while minimizing glare. Optical performance should be evaluated alongside distribution and spacing characteristics to ensure proper fixture layout.
This wraparound configuration is designed to replace fluorescent strip fixtures while improving light consistency and reducing maintenance requirements.
Installation and System Integration
The TRC is designed for surface-mounted installation, allowing deployment in areas where recessed ceiling systems are not present. This makes it suitable for utility spaces, retrofit projects, and applications requiring direct ceiling mounting.
Optional motion sensor integration enables occupancy-based control strategies, supporting energy efficiency and operational flexibility in commercial environments.
Typical Applications
- Corridors and hallways
- Utility and service areas
- Commercial kitchens and prep spaces
- Office support areas
- Retail back-of-house environments
- General commercial interiors
