Product Overview

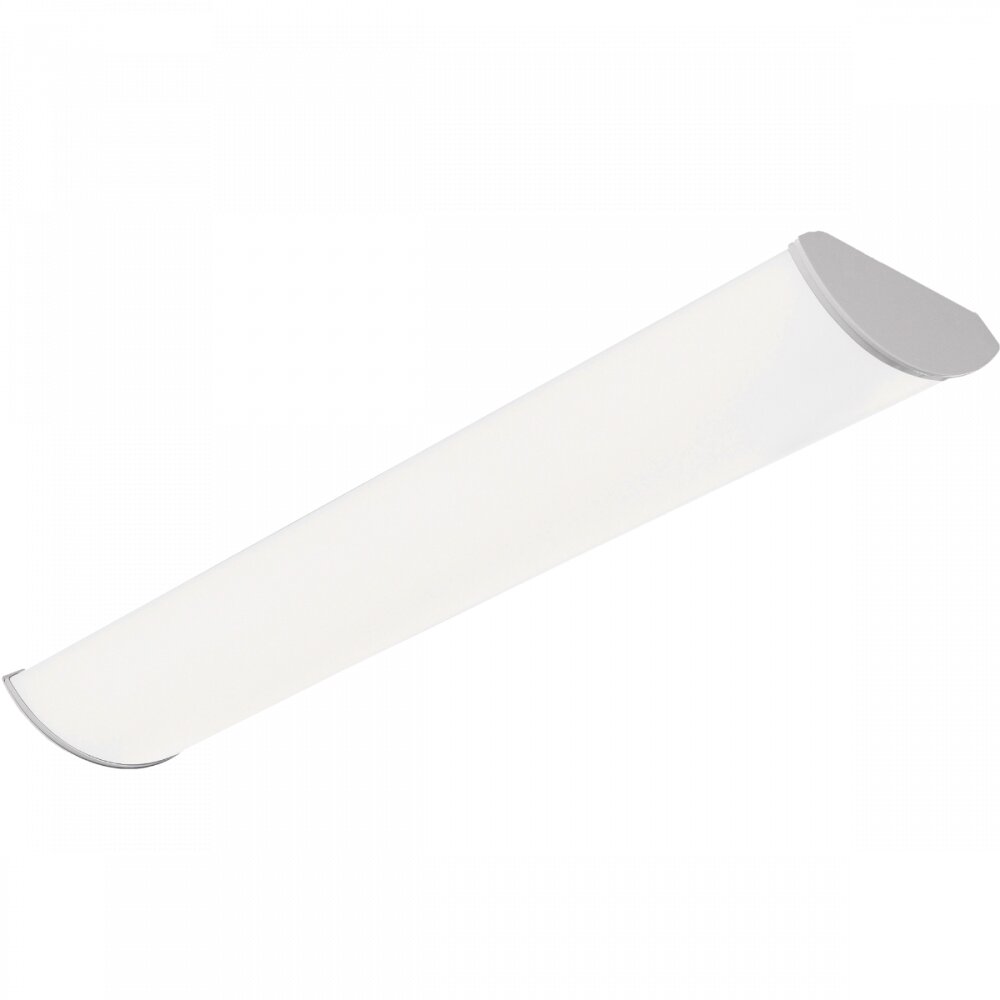

The TR Select G2 LED Surface Wraparound is a field-configurable linear luminaire designed for commercial ceiling applications requiring installation flexibility, adaptable output, and consistent surface-mounted performance. As part of the LED Wraparound Lights category, this fixture is engineered to streamline installation while reducing the need for multiple SKUs across varying applications.
The selectable design provides three lumen output settings and three correlated color temperature options within a single fixture platform, allowing performance to be adjusted in the field based on mounting height, spacing, and application requirements. This multi-configuration approach supports contractor-driven projects where layout conditions may vary across spaces.
Field-adjustable output allows lumen levels ranging from approximately 3,800 to over 5,300 lumens to be selected without changing fixtures, while selectable CCT options (3500K, 4000K, 5000K) ensure consistent visual output across different environments.
The TR Select G2 operates on standard 120–277V electrical systems and supports 0–10V dimming for adjustable light output.
With efficacy up to 138 lumens per watt and a lightweight steel housing design, the fixture is optimized for installation efficiency while maintaining long-term performance. As part of a broader commercial lighting system, it provides a direct upgrade path from fluorescent wraparound fixtures with improved energy performance and reduced maintenance.
Fixture Specifications
- Voltage: 120–277V
- CCT: 3500K, 4000K, 5000K
- CRI: 80+
- Dimming: 0–10V
- Construction: 22 Gauge Steel Housing
- Mounting: Surface Mount or V-Hook Suspension
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Efficacy: Up to 138 lm/W
- Rated Life: L70 (based on system design)
- Certifications: UL Listed (Damp Location), DLC 5.1 Listed, FCC Compliant
- Warranty: 5-Year Limited Warranty
Performance & Configurations
4 ft Selectable Configuration
- Lumen Output: 3,800 / 4,500 / 5,300 lumens
- Wattage: 28W / 34W / 40W
- Power Settings: 70% / 85% / 100%
- Dimensions: Approx. 46 in L × 7.7 in W × 3.4 in H
- Application Use: Corridors, utility spaces, storage areas, and general commercial interiors
Optical and Distribution Characteristics
The wraparound diffuser design provides wide, even light distribution across the fixture length, supporting uniform illumination in linear applications. Optical performance should be evaluated alongside distribution and spacing characteristics to ensure proper fixture layout and consistent light levels.
Installation and System Integration
The TR Select G2 is engineered for fast installation with a lightweight construction and simplified mounting options. Surface mounting and V-hook suspension compatibility allow flexibility across different ceiling conditions.
Optional accessories including motion sensors, emergency backup, and optical lenses enable expanded functionality for energy management and application-specific performance.
Typical Applications
- Corridors and hallways
- Utility and service areas
- Storage and warehouse support spaces
- Office support areas
- Retail back-of-house environments
- General commercial interiors
