Product Overview
The TPSC LED Selectable Panel is a controls-ready luminaire platform engineered for commercial ceiling systems requiring integrated sensor compatibility, adaptable output, and consistent visual performance. Available in 1×4, 2×2, and 2×4 configurations, the panel supports deployment across office environments, educational facilities, and healthcare applications where control integration is required at the fixture level.
As part of the LED Panel Lights category, the TPSC delivers a flat, uniform light-emitting surface designed to reduce glare and eliminate visible diode imaging. The panel architecture provides consistent horizontal illumination across the task plane, supporting environments where visual comfort and uniformity are critical.
A built-in controls-ready design enables direct integration with motion sensors, daylight harvesting systems, and Bluetooth-enabled lighting controls. This allows luminaire-level lighting control (LLLC) strategies to be implemented without additional rewiring, supporting modern energy code compliance and scalable system deployment.
Selectable output configurations allow lumen levels to be adjusted across multiple power settings, aligning with mounting height, spacing, and target illumination levels. Field-selectable CCT options from 2700K through 5000K support consistent color deployment across varied applications.
With efficacy up to 140 lumens per watt and a rated life exceeding 100,000 hours, the TPSC is engineered for long-term operational performance. As part of a larger commercial lighting system, it combines efficiency, controls integration, and predictable layout performance.
Fixture Specifications
- Voltage: 120–277V
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 80
- Dimming: 0–10V
- Construction: Sheet Metal Housing with Polystyrene Lens
- Finish: White
- Mounting: Recessed (Standard), Surface or Suspended Options Available
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Efficacy: Up to 140 lm/W
- Rated Life: L70 > 100,000 Hours
- Certifications: UL Listed (Damp Location), DLC Premium (pending/qualified models)
- Warranty: 5-Year Limited Warranty
Performance & Configurations

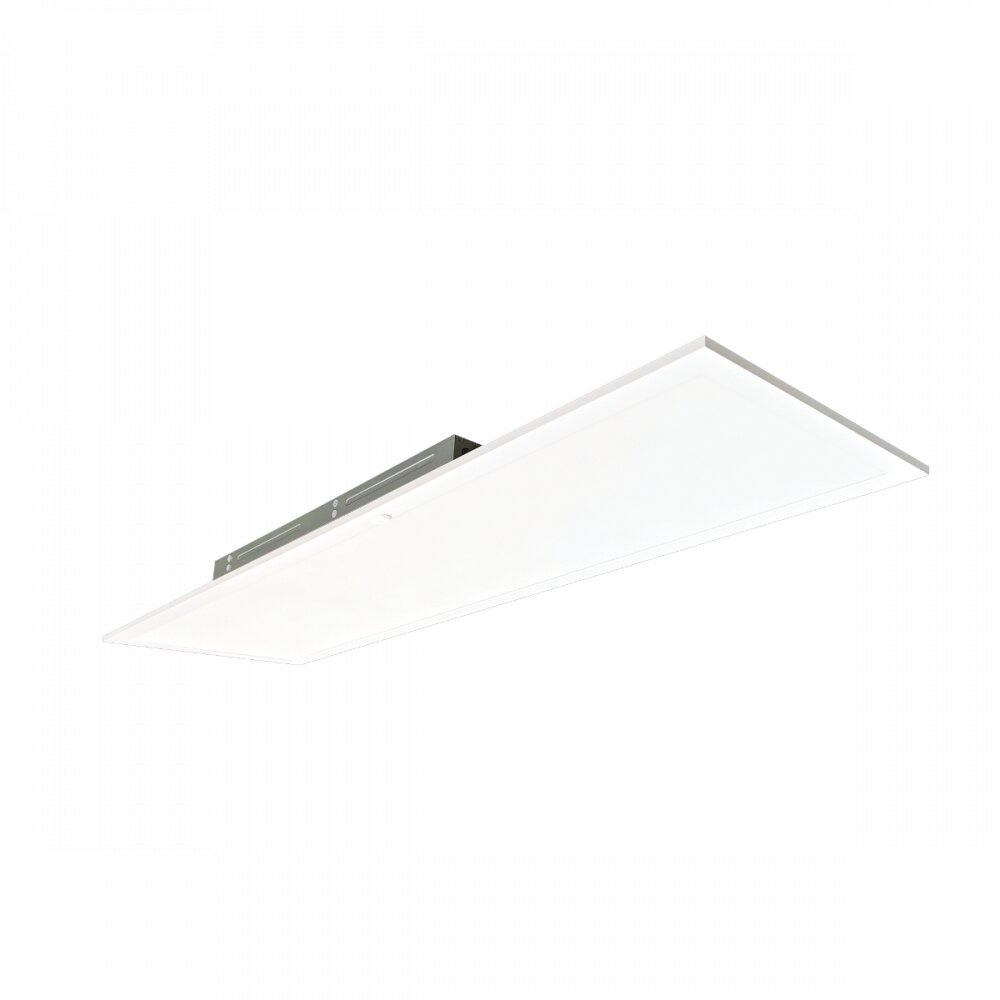

1×4 Configuration (TPSC 14)
- Lumen Output: 2,250 / 2,700 / 3,750 / 4,500 lumens
- Wattage: 16W / 19W / 26W / 32W
- Application Use: Linear ceiling layouts and corridors

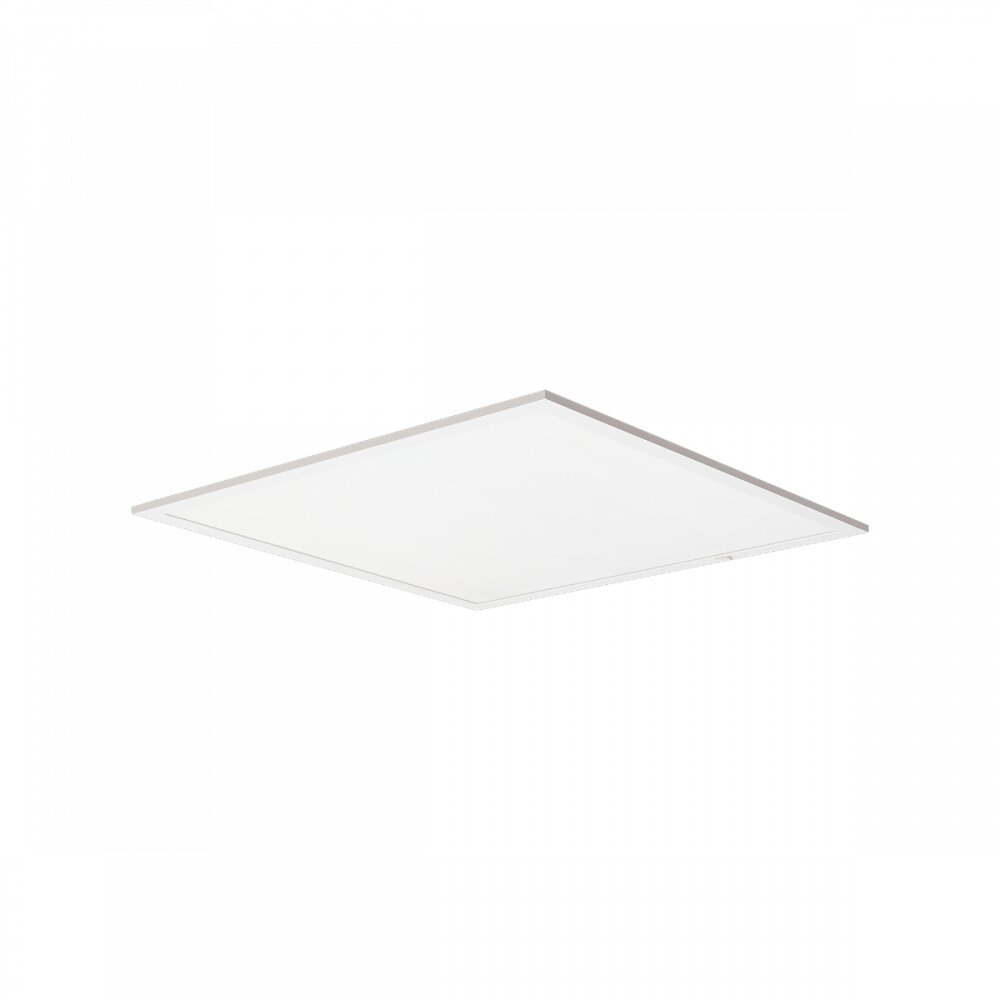

2×2 Configuration (TPSC 22)
- Lumen Output: 2,250 / 2,700 / 3,750 / 4,500 lumens
- Application Use: Standard grid layouts requiring uniform distribution

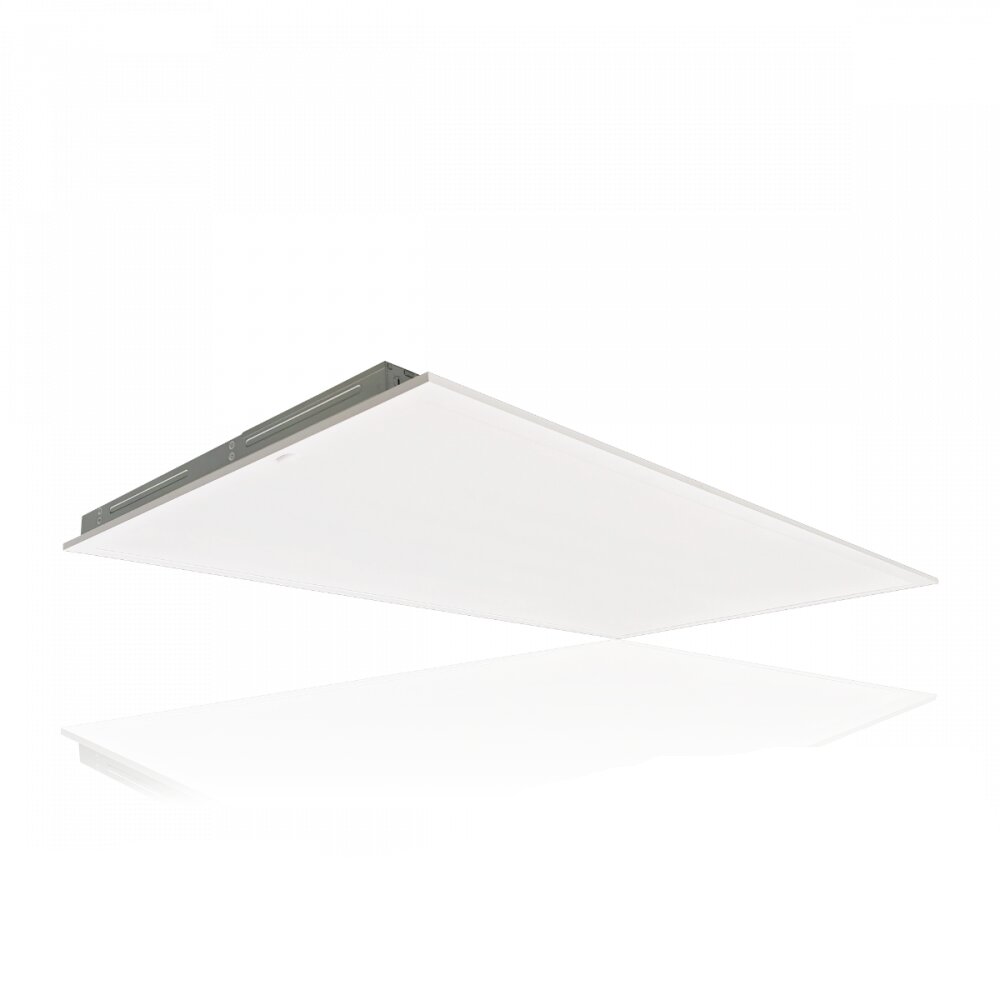

2×4 Configuration (TPSC 24)
- Lumen Output: 2,650 – 10,000 lumens
- Wattage: 19W – 71W
- Application Use: Larger open areas requiring higher output coverage
Controls and System Integration
The controls-ready design supports plug-and-play integration with motion sensors, including Bluetooth-enabled and standalone options. These systems enable occupancy-based control, daylight response, and scheduling without centralized rewiring.
According to the sensor specifications on page 4, Bluetooth-enabled sensors provide wireless commissioning and control via mobile applications, while standalone sensors support remote-based configuration. This allows flexible deployment based on project requirements and control system architecture.
Optical and Distribution Characteristics
The flat panel design provides uniform light distribution across the entire fixture surface, reducing glare and eliminating visible LED hotspots. Optical performance should be evaluated alongside distribution and spacing characteristics to maintain consistent illumination levels.
Installation and System Integration
The TPSC is designed for recessed T-grid installation with optional surface and suspended mounting kits available. This allows consistent deployment across multiple ceiling conditions without changing fixture families.
Integration with commercial lighting control requirements ensures compliance with modern energy standards while supporting scalable lighting control strategies.
Typical Applications
- Office lighting systems
- Educational environments
- Healthcare support areas
- Commercial interiors requiring integrated lighting controls
- Open office and administrative layouts
- Smart lighting retrofit and new construction projects
