DRS Series LED Selectable Downlight

Product Overview

The DRS LED Selectable Downlight Retrofit Series is a multi-configuration recessed luminaire designed for LED Recessed Lighting applications requiring flexible output, high color rendering, and compatibility with multiple dimming systems. Engineered for both retrofit and new construction installations, the series supports deployment across commercial interiors where precision lighting and architectural integration are required.

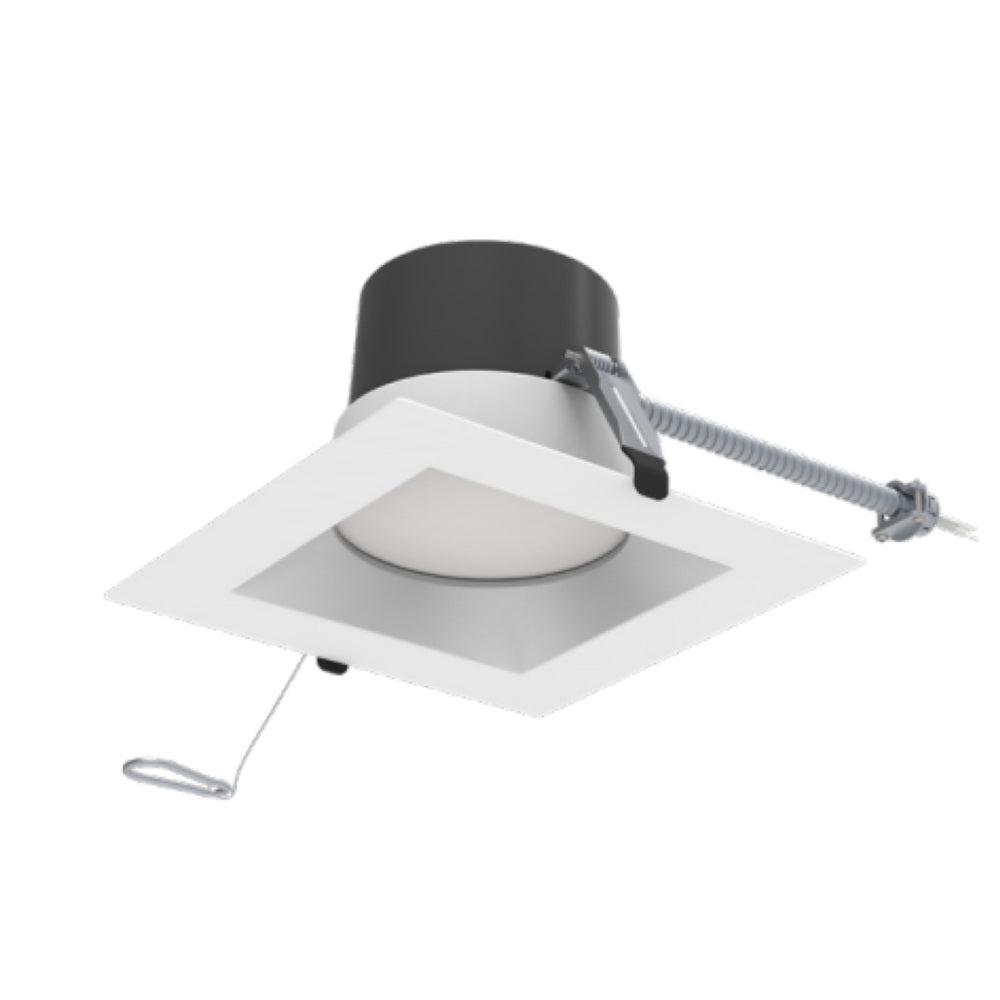

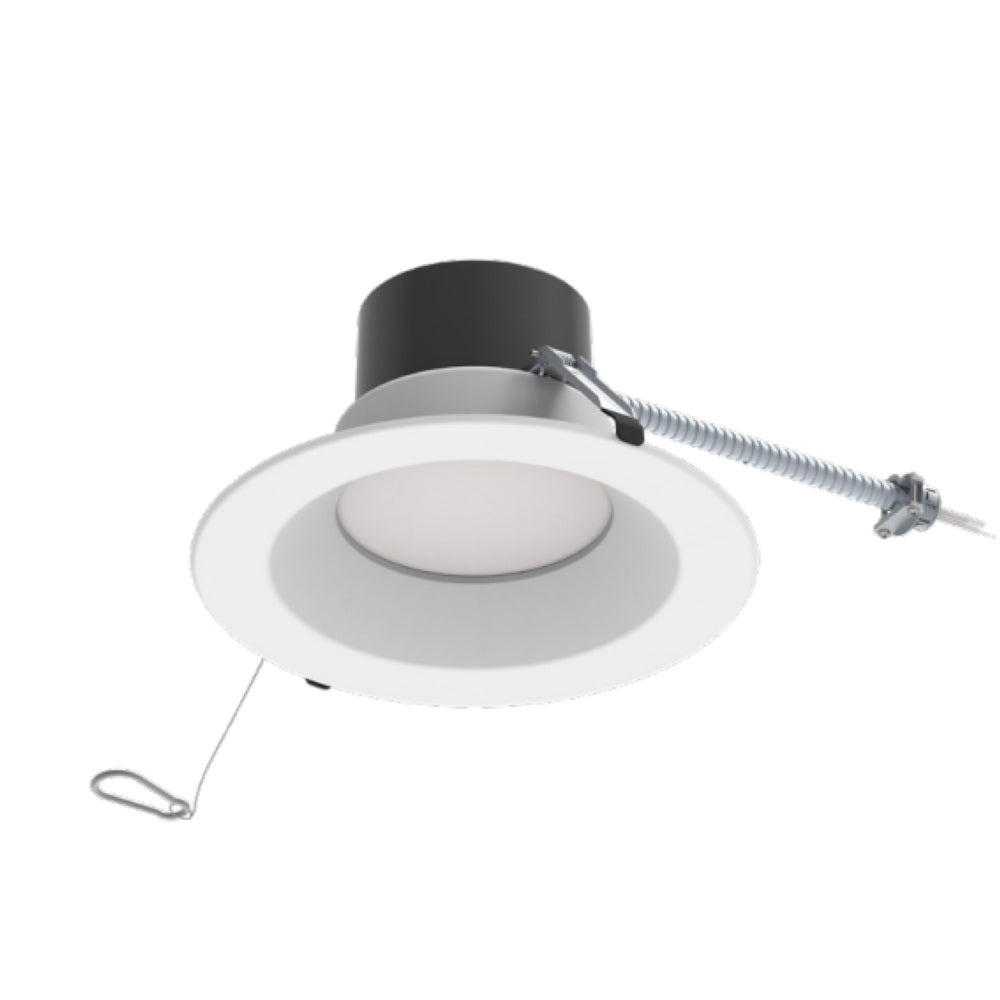

Available in 4", 6", 8", and 10" round configurations along with 4" and 6" square options, the DRS provides a scalable platform for consistent recessed lighting layouts. Field-selectable lumen packages allow light output to be adjusted from 600 to 3,500 lumens depending on fixture size and application requirements.

The system includes five selectable CCT options ranging from 2700K through 5000K, allowing the same fixture family to support warm architectural environments, neutral office lighting, and higher-visibility task areas. With a 90 CRI rating, the fixture maintains accurate color rendering across commercial applications.

The DRS operates on 120–277V electrical systems and supports tri-combo dimming, including 0–10V, TRIAC, and ELV dimming within a single driver platform. This eliminates the need to specify different drivers for different control systems.

With efficacy up to 110 lumens per watt and an integrated low-voltage driver design, the DRS provides consistent performance across recessed lighting layouts. As part of a broader commercial lighting system, it supports predictable illumination results while maintaining installation flexibility.

Fixture Specifications

• Voltage: 120–277V
• CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• CRI: 90
• Dimming: 0–10V, TRIAC, ELV
• Construction: UL94-5VA Fire Rated Polycarbonate Driver Box with Integrated Housing Design
• Lens: Polycarbonate Diffuser
• Mounting: Retrofit and New Construction Recessed Mount
• Operating Temperature: -13°F to 104°F (-25°C to 40°C)
• Efficacy: Up to 110 lm/W
• Rated Life: L70 (based on system design)
• Certifications: UL Listed, Energy Star, FCC Part 15 Class B, Title 24 JA8 Compliant, IC Rated (excluding 10" model)
• Warranty: 5-Year Limited Warranty

Performance & Configurations

4” and 4” Square Downlights

• Lumen Output: 600 / 800 / 1,200 lumens
• Wattage: 6W / 8W / 12W
• Round Dimensions: 6"D x 4.1875"H
• Square Dimensions: 6.7"L x 6.7"W x 4"H
• Application Use: Accent lighting, small spaces, and perimeter zones

6” and 6” Square Downlights

• Lumen Output: 750 / 1,100 / 1,500 lumens
• Wattage: 7W / 10W / 15W
• Round Dimensions: 8.4375"D x 4.8125"H
• Square Dimensions: 8.3"L x 8.3"W x 4.8"H
• Application Use: General ambient lighting and mid-height ceilings

8” Downlights

• Lumen Output: 1,100 / 2,000 / 2,500 lumens
• Wattage: 10W / 20W / 25W
• Dimensions: 10.0625"D x 5"H
• Application Use: Open areas requiring higher output distribution

10” Downlights

• Lumen Output: 2,000 / 2,500 / 3,500 lumens
• Wattage: 20W / 25W / 36W
• Dimensions: 11.375"D x 5.5"H
• Application Use: High-ceiling applications and large open interiors

Optical and Distribution Characteristics

The recessed diffuser design provides controlled light distribution while minimizing glare and maintaining visual comfort. Optical performance should be evaluated alongside distribution and spacing characteristics to ensure proper layout and consistent illumination.

Installation and System Integration

The DRS supports both retrofit and new construction installations through spring-action mounting clips and compatible housing options. The integrated driver and flexible conduit design simplify installation while maintaining secure fixture positioning.

Tri-combo dimming compatibility eliminates the need to match specific drivers to control systems, allowing the fixture to be deployed across projects with varying dimming requirements without additional specification changes.

Typical Applications

• Commercial interiors and office spaces
• Office lighting systems
• Educational environments
• Healthcare support areas
• Retail environments and display lighting
• Corridors and circulation paths

Product Downloads

• Specification Sheet
• Installation Instructions
• Warranty
