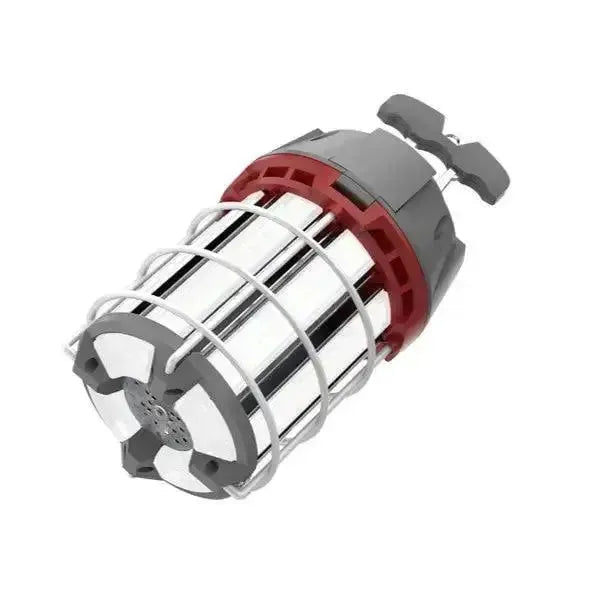

Product Overview
The Armor Series LED Temporary Work Light is engineered for construction, maintenance, and industrial environments requiring portable high-output illumination without permanent fixture installation. Designed for rapid deployment, this LED temporary lighting solution delivers consistent jobsite visibility using selectable power settings that allow output adjustment without changing equipment.
Integrated Power Select capability enables field selection between 60W, 80W, or 100W operation, supporting lumen outputs up to 10,000 lumens from a single temporary fixture. This flexibility allows contractors and facility teams to match illumination levels to task zones, ceiling heights, or phased construction conditions while maintaining standardized equipment across active construction and LED industrial lighting environments.
A fully sealed driver assembly and IP64-rated construction protect internal components from dust intrusion and water splashing commonly encountered on active jobsites. Passive thermal management eliminates the need for internal cooling fans, supporting operation in elevated ambient temperatures while reducing mechanical failure points commonly associated with portable work lighting systems.
The included 6-foot cord with standard 120V three-prong plug and integrated hanging clip enables immediate installation across scaffolding, open ceilings, mechanical rooms, renovation zones, and temporary work areas. For projects transitioning from temporary illumination into permanent systems, this fixture supports broader LED commercial lighting deployment strategies used throughout construction turnover, commissioning, and facility modernization phases.
Fixture Specifications
- Input Voltage: 120V
- Color Temperature: 5000K
- CRI: 80+
- Dimming: Non-Dimmable
- IP Rating: IP64
- Location Rating: Wet Location
- Minimum Operating Temperature: -22°F
- Cord Type: 6 ft Power Cord with 3-Prong Plug
- Mounting: Integrated Hanging Clip
- Certifications: cULus Listed, RoHS Compliant
- Rated Life: 50,000 Hours
- Dimensions: 5.12 in D × 11.18 in H
Performance & Electrical Configuration
60W Configuration
- Lumen Output: 6,800 lm
- Input Voltage: 120V
- Color Temperature: 5000K
- Distribution: Omni-Directional Temporary Work Lighting
80W Configuration
- Lumen Output: 8,500 lm
- Input Voltage: 120V
- Color Temperature: 5000K
- Distribution: Omni-Directional Temporary Work Lighting
100W Configuration
- Lumen Output: 10,000 lm
- Input Voltage: 120V
- Color Temperature: 5000K
- Distribution: Omni-Directional Temporary Work Lighting
Product Downloads
