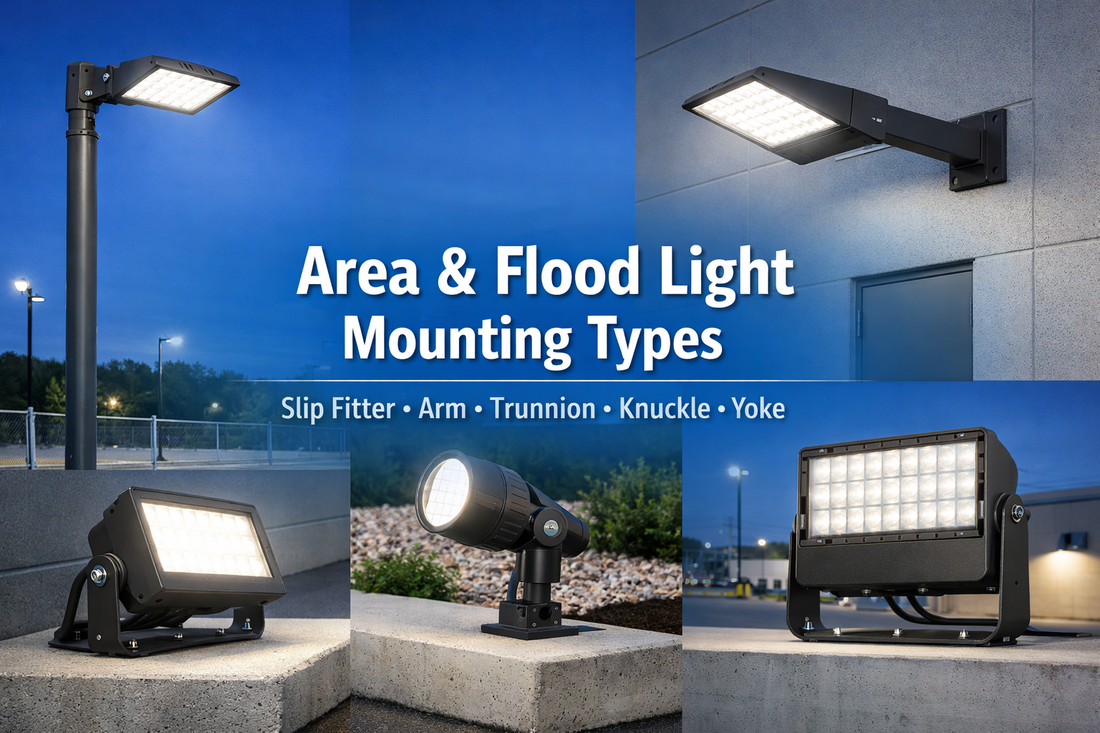

Area Light and Flood Light Mounting Types Explained: Slip Fitter, Arm, Trunnion, Knuckle, and Yoke

Area and Flood Light Mounting Systems: Slip Fitter, Trunnion, Arm, Knuckle, and Yoke Mounts Explained

Mounting hardware is a primary performance variable in outdoor lighting design. Fixture output, optic selection, and distribution pattern only perform as intended when the mounting method positions the luminaire correctly relative to the target area. Incorrect mounting introduces misalignment, glare, structural stress, and non-uniform coverage regardless of fixture quality.

For area lights and flood lights, mounting selection must account for pole type, surface conditions, mounting height, aiming requirements, and environmental exposure. The most common mounting configurations—slip fitter, arm mount, trunnion, knuckle, and yoke—are engineered for different structural interfaces and lighting objectives.

Mount selection should be treated as part of the photometric and structural design process, not as an accessory choice.

Overview of Lighting Mounting Systems

Outdoor luminaires are designed with interchangeable mounting options to adapt to varying site conditions. Each mount defines how the fixture connects to the structure and how light is projected into the application area.

• Slip fitter mounts attach over the top of poles and support forward-throw area lighting
• Arm mounts extend fixtures outward from poles for optimized distribution geometry
• Trunnion mounts allow surface mounting with adjustable tilt for directional lighting
• Knuckle mounts provide compact adjustable mounting for smaller flood and area lights
• Yoke mounts support dual-point aiming and high-output floodlight applications

Each mounting method affects photometric performance, installation method, and long-term stability.

Mount Type	Mounting Surface	Aiming Capability	Primary Application	Limitation
Slip Fitter	Pole top	Limited tilt	Area lighting	Minimal adjustability
Arm Mount	Pole side	Fixed orientation	Parking lots, roadways	Requires pole compatibility
Trunnion	Flat surface	Moderate tilt	Flood lighting	Limited structural flexibility
Knuckle	J-box / small mounts	High adjustability	Small floods, accents	Not for high-load fixtures
Yoke	Surface or structure	Full rotation	High-output flood lighting	Requires rigid mounting structure

Slip Fitter Mount: Applications and Limitations

Slip fitter mounts are designed for direct pole-top installation. The fixture slides over the pole and is secured mechanically, creating a stable, centralized mounting position.

• Common on parking lot and roadway poles
• Supports forward-throw optics such as Type III distribution
• Typically used at heights between 15 and 30 feet

Slip fitters provide limited tilt adjustment, making them suitable for applications where distribution is predetermined rather than field-adjusted.

Arm Mount: Applications and Limitations

Arm mounts position the fixture away from the pole, improving distribution geometry and reducing pole shadowing.

• Used for parking lots, roadways, and perimeter lighting
• Supports extended forward light projection
• Available in different lengths for spacing optimization

Arm mounts are structurally dependent on pole design and must match pole diameter and drilling patterns.

Trunnion Mount: Applications and Limitations

Trunnion mounts provide a pivoting bracket that allows the fixture to tilt vertically for directional control.

• Common for flood lighting and wall-mounted installations
• Used in building facades, yards, and perimeter zones
• Allows controlled beam aiming

Trunnions are not designed for uniform area lighting due to their directional nature.

Knuckle Mount: Applications and Limitations

Knuckle mounts are compact adjustable mounts typically used on smaller luminaires.

• Mounted to junction boxes or small surfaces
• Provides multi-axis adjustability
• Used for accent, signage, and localized flood lighting

Knuckle mounts are not suitable for high-wattage fixtures due to load and wind exposure limitations.

Yoke Mount: Applications and Limitations

Yoke mounts use dual-side brackets to support the fixture, allowing full rotational aiming.

• Used for high-output flood lighting applications
• Supports wide aiming angles and repositioning
• Common in sports lighting, building wash, and industrial yards

Yoke mounts require rigid structural attachment points and are typically surface-mounted.

Pole and Surface Compatibility

Mount selection must align with the structural interface.

• Round poles: compatible with slip fitters and arm mounts
• Square poles: require adapters or direct mounting plates
• Flat surfaces: required for trunnion and yoke mounts
• Junction boxes: typical for knuckle mounts

Incorrect pairing leads to mechanical stress and misalignment.

Mounting Height and Aiming Strategy

Mounting height influences both distribution and mount selection.

• Higher mounts require wider distribution and stable mounting
• Lower mounts require tighter aiming control
• Directional mounts increase glare risk if improperly aimed

Mount type and optic must work together to maintain uniformity.

Structural Load and Wind Considerations

Mounting hardware must withstand environmental forces.

• Wind load increases with fixture size and mounting height
• Improper mounting can lead to fixture failure or pole damage
• Heavier fixtures require reinforced mounting systems

Mounting is both a lighting and structural decision.

Common Mounting Mistakes

• Using directional mounts for uniform area lighting
• Selecting mounts without considering pole compatibility
• Over-tilting fixtures to compensate for poor layout
• Ignoring wind load and structural requirements
• Assuming all mounts provide the same aiming flexibility

Mount selection errors often result in uneven illumination, increased glare, and reduced system lifespan.

Correct mounting selection ensures that area lights and flood lights deliver intended photometric performance, maintain structural integrity, and operate reliably over long service intervals. When mount type, fixture output, and site conditions are aligned, lighting systems perform predictably and efficiently.
