Lighting Uniformity Explained: Why Even Light Distribution Matters More Than Brightness

Commercial lighting systems are often evaluated based on brightness, typically expressed as lumen output or perceived intensity. However, brightness alone does not define lighting performance. Uniformity—how evenly light is distributed across a space—is the controlling factor in visual clarity, safety, and operational effectiveness.

High brightness with poor uniformity creates glare, shadows, and contrast imbalances that reduce visibility and increase visual strain. Conversely, a well-designed system with balanced uniformity can achieve better performance at lower overall light levels. For this reason, lighting uniformity is a primary design criterion in commercial environments.

This guide explains how uniformity is measured, how it is achieved through layout and distribution, and why it has a greater impact on performance than raw lumen output. For a broader framework of lighting system design, reference the commercial lighting specification guide system and the commercial lighting fundamentals guide.

What Is Lighting Uniformity

Lighting uniformity refers to how evenly light is distributed across a defined area. It is typically expressed as a ratio comparing minimum illumination levels to average or maximum levels within the space.

Uniformity ensures that light levels do not vary significantly from one point to another. Inconsistent lighting creates visual contrast that can reduce visibility, especially in environments where tasks require precision or movement.

Uniformity is evaluated in conjunction with foot-candle measurements, which define illumination levels at the task plane. See foot-candle measurement and application for a detailed explanation.

Why Uniformity Matters More Than Brightness

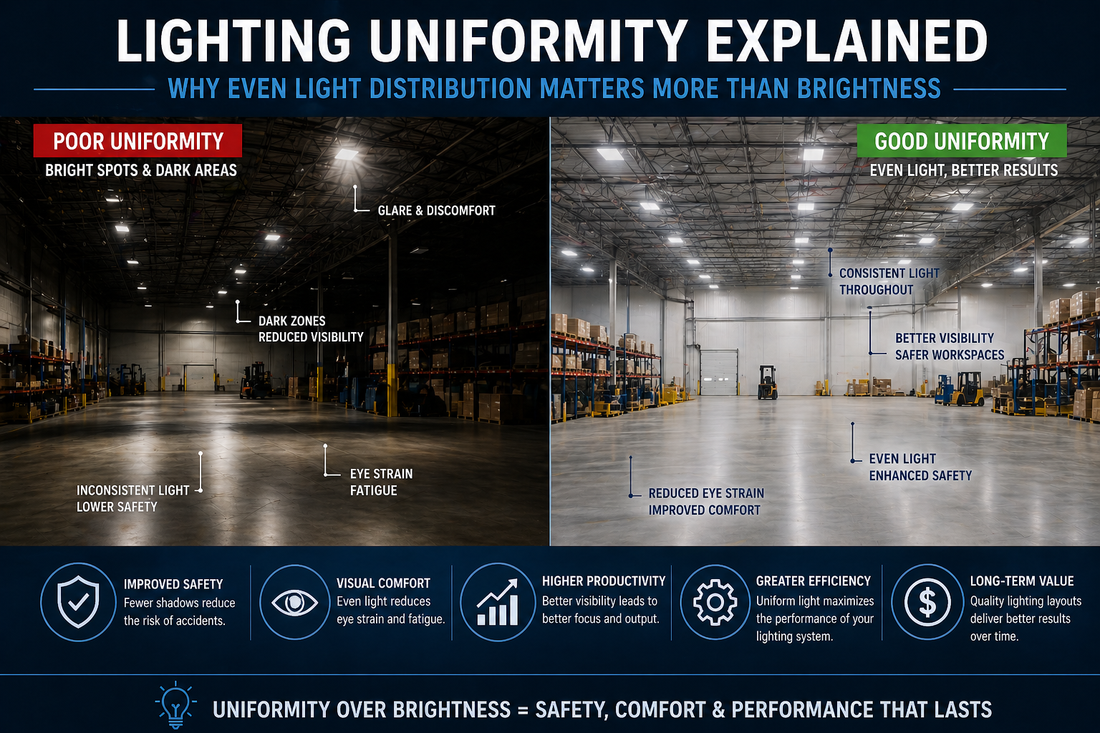

Brightness alone does not ensure effective lighting. A space with high lumen output can still perform poorly if illumination is uneven. Bright hotspots combined with dark areas create contrast differences that strain the visual system and reduce task visibility.

Uniform lighting allows the eye to adapt consistently across the field of view, improving clarity and reducing fatigue. This is particularly important in environments where workers move between areas or rely on peripheral vision.

Lumen output must therefore be evaluated within the context of distribution and layout. See lumen output and specification methodology.

How Uniformity Is Measured

Uniformity is typically expressed as a ratio such as minimum-to-average or minimum-to-maximum illumination. These ratios indicate how evenly light is distributed across the space.

For example, a uniformity ratio of 0.7 indicates that the lowest light level in the area is 70 percent of the average level. Higher ratios represent more consistent lighting, while lower ratios indicate greater variation.

Uniformity targets vary by application. Industrial environments may allow lower uniformity ratios, while office and retail environments require tighter control to maintain visual comfort.

These calculations are part of spacing and layout design. See spacing criteria and uniformity guidelines.

The Role of Layout in Achieving Uniformity

Layout is the primary factor that determines uniformity. Fixture spacing, mounting height, and positioning control how light overlaps across the space. Proper overlap ensures consistent illumination, while excessive spacing creates gaps and uneven coverage.

Mounting height directly influences how light spreads. Higher mounting heights require tighter distribution control and adjusted spacing to maintain uniformity. Lower mounting heights allow wider distribution but still require precise layout.

Layout decisions must be aligned with fixture characteristics and application requirements. See fixture mounting and positioning strategy.

Optical Distribution and Uniformity Control

Optical distribution defines how light is emitted from a fixture and how it spreads across the environment. Beam angle, reflector design, and lens geometry influence coverage patterns and uniformity.

Narrow beam angles concentrate light and are typically used in high-ceiling environments, while wide distributions provide broader coverage for lower mounting heights. Improper distribution selection can create hotspots or insufficient overlap, reducing uniformity.

Distribution must be selected in conjunction with layout to achieve consistent performance. See beam angle and optical distribution strategy.

Uniformity Across Commercial Applications

Uniformity requirements vary by application, but it remains a critical factor in all environments.

In warehouse environments, uniformity ensures consistent visibility across aisles and storage areas. Poor uniformity can create dark zones that reduce safety and efficiency.

In office environments, uniformity reduces visual fatigue and improves comfort by eliminating contrast differences across work surfaces.

In retail environments, uniformity must be balanced with directional lighting to highlight products while maintaining overall visibility.

In exterior applications, uniformity ensures safe navigation and consistent visibility across large areas, reducing shadows and glare.

Environmental conditions must also be considered. See IP rating classification and location rating requirements.

Controls, Electrical Behavior, and Their Limits

Lighting controls such as dimming systems, occupancy sensors, and daylight harvesting adjust light levels but do not improve uniformity. These systems modify output but cannot correct uneven distribution caused by poor layout.

Electrical compatibility also affects system performance. Input voltage must align with building infrastructure to ensure stable operation. See input voltage requirements.

Dimming system behavior is outlined in dimming and control compatibility.

Photometric Validation and IES Analysis

Uniformity must be validated through photometric analysis. IES files provide the data required to simulate light distribution and evaluate uniformity ratios before installation.

Photometric reports allow designers to identify uneven coverage and adjust layout before implementation. This step is critical to ensuring that performance targets are achieved.

See photometric reports and IES file analysis.

Uniformity in the Specification Workflow

Uniformity must be integrated into the lighting specification process from the beginning. Fixture selection, layout design, and photometric validation must be evaluated together to ensure consistent performance.

This workflow includes defining performance targets, selecting fixtures, designing layout, validating with photometric analysis, and verifying compliance and environmental suitability.

For a complete framework, see the lighting layout design guide.

Related Commercial Lighting Systems

Explore specification-ready solutions within the commercial lighting collection, where fixture categories align with layout strategies and performance requirements.

Lighting performance is not defined by brightness alone. Uniformity determines how effectively light supports visibility, safety, and operational efficiency. When layout, distribution, and validation are aligned, lighting systems deliver consistent performance across all commercial applications.
