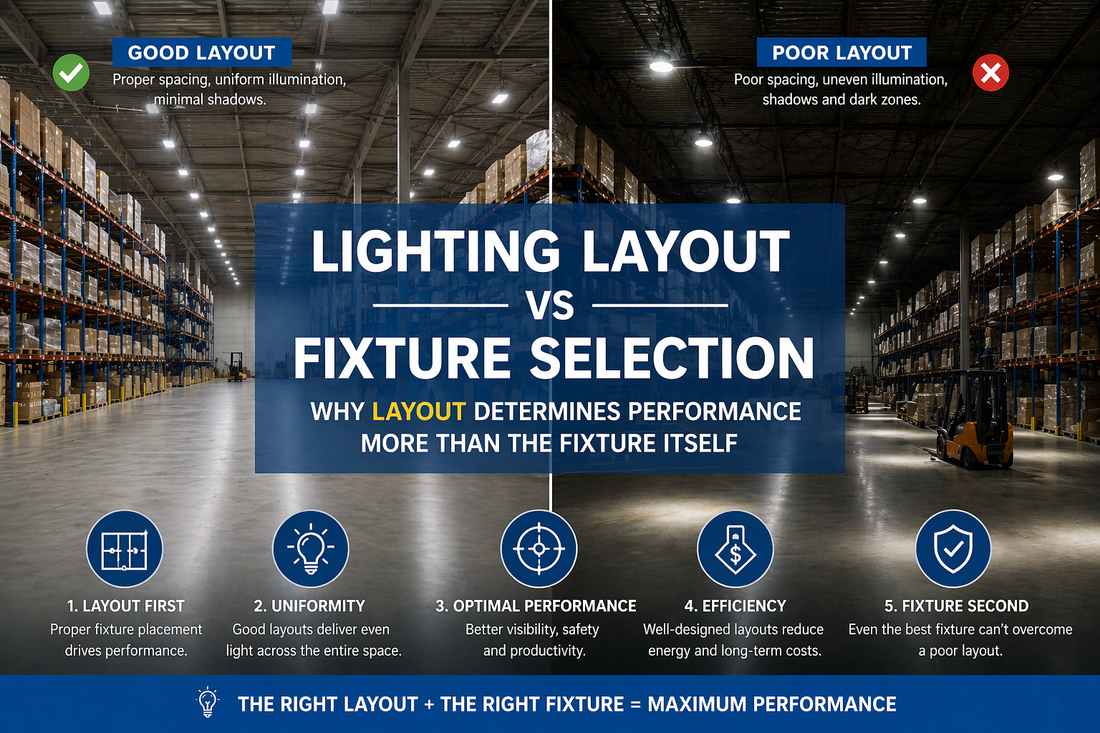

Lighting Layout vs Fixture Selection: Why Layout Determines Performance More Than the Fixture Itself

Commercial lighting performance is not defined by fixture type alone. It is determined by how light is distributed, positioned, and delivered to the task plane. Fixture selection establishes potential performance, but layout determines whether that performance is realized in the built environment.

Projects that prioritize fixture specifications without addressing layout fundamentals often experience uneven illumination, glare, shadowing, and inefficient energy use. Even high-output, high-efficacy fixtures can underperform when spacing, mounting height, and distribution are not aligned with application requirements.

This guide explains why layout is the controlling factor in lighting performance and how it integrates with fixture selection, photometric analysis, and system design. For a broader framework, reference the commercial lighting specification system and the commercial lighting fundamentals guide.

Lighting Performance Is a Layout Outcome

Lighting systems are evaluated based on measurable results at the task plane, not fixture specifications in isolation. Performance is defined by foot-candle levels, uniformity ratios, glare control, and vertical illumination. These outcomes are determined by how fixtures are arranged within the space.

Layout translates fixture capability into real-world performance. Without a defined layout strategy, lumen output remains theoretical and does not guarantee usable illumination where it is required.

Understanding how light is measured and applied begins with foot-candle calculation and application, which forms the basis for evaluating lighting effectiveness.

Why Fixture Selection Alone Does Not Guarantee Performance

Fixture selection defines maximum output, efficacy, and optical characteristics, but it does not determine how light is distributed across a space. Two identical fixtures can produce entirely different results depending on spacing, mounting height, and orientation.

Specifying a high-lumen fixture does not ensure adequate illumination if spacing is too wide or distribution is not matched to the application. Conversely, lower-lumen fixtures can achieve better performance when layout is optimized.

This is why lumen output must be interpreted within the context of application and layout strategy. See lumen output and specification methodology for proper evaluation.

Optical Distribution and Its Impact on Layout

Optical distribution determines how light is emitted from a fixture and how it spreads across the environment. Beam angle, reflector design, and lens geometry influence coverage patterns and spacing requirements.

Narrow distributions concentrate light for high mounting heights, while wide distributions provide broader coverage for lower ceilings. Mismatched distribution results in hotspots, dark zones, or excessive glare regardless of fixture quality.

Proper distribution selection is a prerequisite for effective layout. Detailed guidance is available in beam angle and optical distribution strategy.

Spacing, Mounting Height, and Uniformity

Spacing and mounting height define how fixtures interact to create consistent illumination. The spacing-to-height ratio determines whether light overlaps correctly or creates uneven coverage.

Excessive spacing leads to dark zones and poor uniformity, while overly tight spacing increases energy consumption without proportional performance gains. Layout must balance coverage, efficiency, and visual comfort.

These relationships are quantified through spacing criteria. See spacing criteria and uniformity guidelines for calculation methods.

Mounting conditions also influence layout performance. Suspension height, recessed installation, and surface mounting alter distribution behavior and must be evaluated during design. Refer to fixture mounting methods and positioning.

Foot-Candles vs Fixture Output

Lighting performance is measured in foot-candles at the task plane, not fixture lumen output. A system with high lumen output can still underperform if light is not directed effectively to the target area.

Layout determines how much of the emitted light contributes to usable illumination. Poor layout reduces effective light levels, increases contrast issues, and creates visual fatigue.

This distinction is critical in all commercial applications, where performance targets must be achieved consistently across the entire space rather than in isolated zones.

Photometric Validation and IES Data

Photometric reports and IES files provide the data required to simulate lighting performance before installation. These tools allow designers to model foot-candle levels, uniformity, and distribution patterns based on actual fixture performance.

Layout decisions must be validated using photometric analysis to ensure that performance targets are met. Without this step, fixture selection remains theoretical and may not translate to real-world results.

For interpretation and application, see photometric reports and IES file analysis.

Controls, Electrical Behavior, and System Interaction

Lighting controls influence how fixtures operate within the system but do not replace the need for proper layout. Dimming systems, occupancy sensors, and daylight controls adjust output levels, but they cannot correct uneven distribution or poor spacing.

Electrical compatibility must also be verified to ensure stable operation. Input voltage and driver behavior affect system reliability and performance consistency.

See input voltage requirements and dimming system compatibility for detailed guidance.

Environmental and Application Constraints

Environmental conditions influence fixture selection but also impact layout strategy. Moisture, dust, temperature extremes, and exposure conditions must be considered when determining fixture placement and spacing.

Ingress protection and location ratings define where fixtures can be installed and how they perform under specific conditions. See IP rating classification and location rating requirements.

For compliance and certification requirements, refer to lighting certification standards.

Integrating Layout into the Specification Workflow

Lighting layout must be integrated into the specification process from the beginning, not treated as a final step. Fixture selection, distribution, spacing, and photometric validation are interconnected and must be evaluated together.

A complete workflow ensures that all variables are aligned before procurement and installation. This approach reduces redesign, prevents performance issues, and ensures compliance with application requirements.

The full process is outlined in the lighting layout and design guide, which provides a structured framework for system planning.

Related Commercial Lighting Systems

Explore specification-ready fixtures and systems within the commercial lighting collection, where fixture categories align with application-specific layout strategies and performance requirements.

Lighting performance is not determined by the fixture alone. It is the result of how that fixture is applied within a structured layout that accounts for distribution, spacing, mounting, and environmental conditions. When layout is prioritized alongside fixture selection, lighting systems deliver consistent, measurable performance aligned with application demands.
